Westerschelde 14 October 2018 |
 |
 |
|
| Westerschelde 20/02/20 | Westerschelde 20/02/20 | |
|
Name |

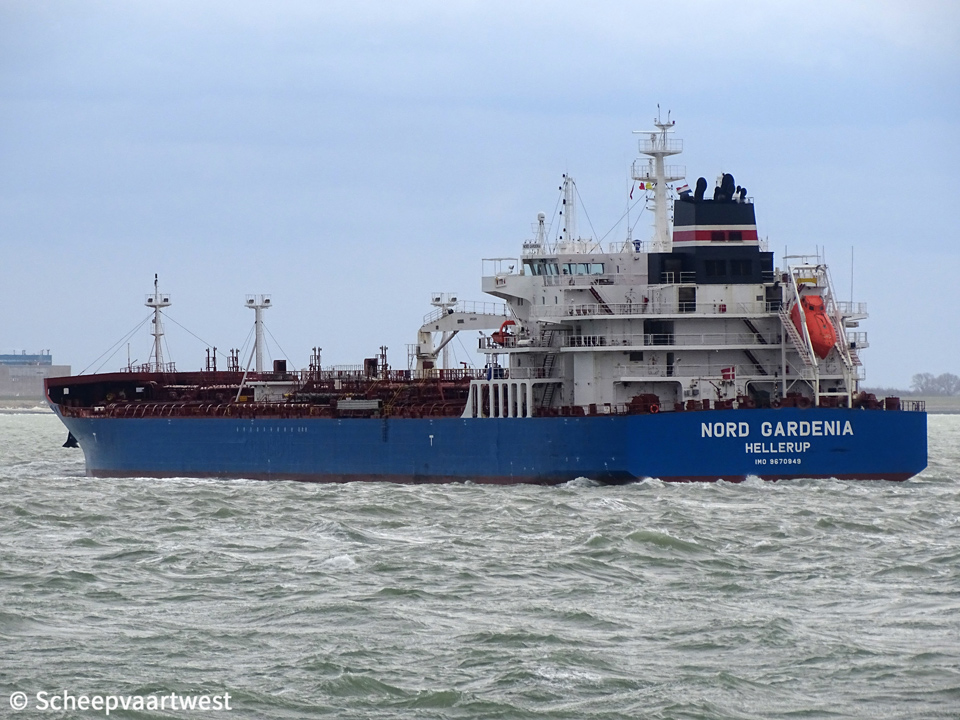

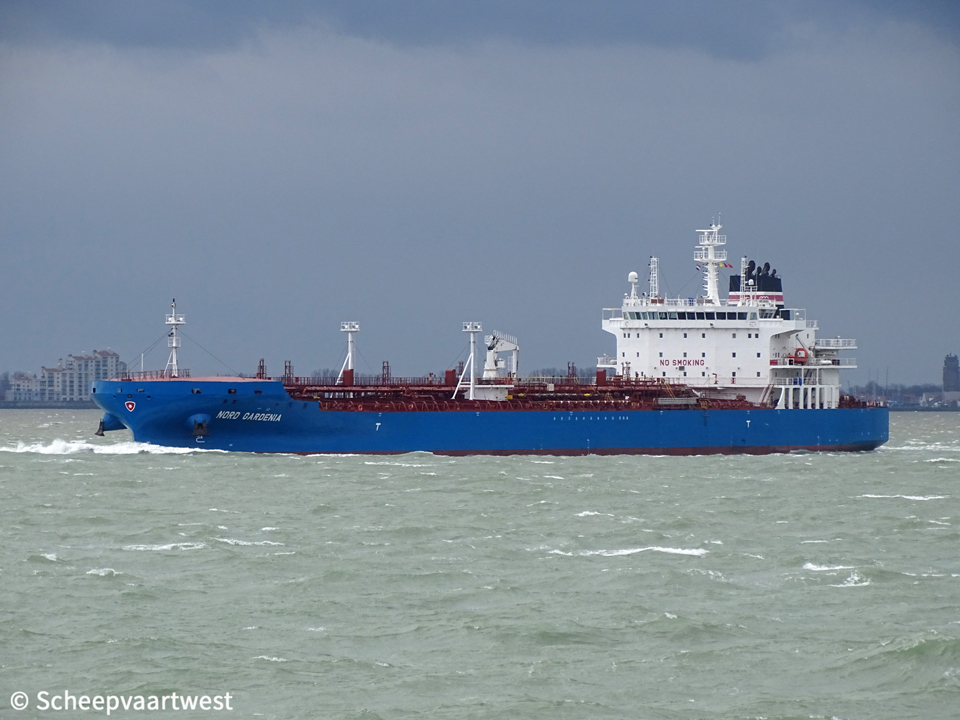

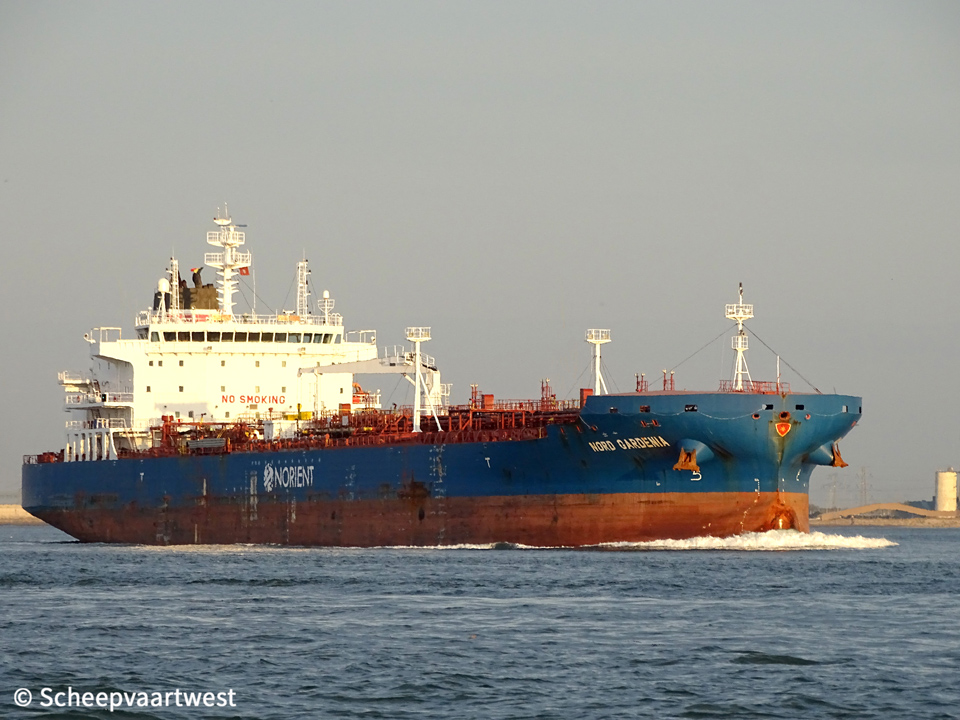

NORD GARDENIA |
|
Type |
Chemical & oil product tanker - Handysize |
|
IMO-number |
9670949 |
|
Call sign |
OWMU2 |
|
Flag |
Hellrup |
|
Port of registry |
Denmark |
|
GT |
25.028 t Suez: 26.159,62 t |
|
DWT |
Summer: 39.999 t |
|
NT |
11.191 t Suez: 22.317,07 t |
|
Displacement |
Summer: 44.979,2 t |
|
Length |
183,30 m overall 178,70 m between perpendiculars |
|
Breadth |
30,99 m extreme |
|
Draught |
Summer: 10,05 m |
|
Keel to masthead |
43,82 m |
|
Air draft |
Summer deadweight: 33,77 m Normal ballast: 36,91 m Lightship: 41,01 m |
|
Freeboard |
Summer: 6.014 mm |
|
Depth |
16,00 m moulded |
|
Speed |
14,5 knots laden |
|
Built |
2014 |
|
Date of completion |
01/09/2014 |
|
Builder |
Guangzhou Shipyard International Co. Ltd. Guangzhou, no 40 South Fang Cun Road Guangzhou China |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Hudong/MAN-B&W 6S50ME-B9.3 - 6 cylinder combustion engine 7.211 kW |
|
Propellers |
1x Fixed pitch propeller |
|
Generators |
3x Daihatsu 6DK-20e main diesel generatorsets each 980 kW |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity 98% |
42.620 m³ |
|
Capacity of each natural segregation with double valve 98% |
1P/S: 6.118,0 m³ 2P/S: 9.100,5 m³ 3P/S: 9.258,0 m³ 4P/S: 9.253,7 m³ 5P/S: 8.890,4 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
1.895 m³ |
|
Pumps |
2x Centrifugal deepwell ballast pumps each 800 m³/h 10x Centrifugal deep well cargo pumps each 500 m³/h 2x Centrifugal deep well cargo pumps 300m³/h 1x Submersible centrifugal pump 200 m³/h 1x Centrifugal deep well pump 70 m³/h |
|
Manifolds |
Distance bridge front to centre of manifold: 56,00 m Bow to centre manifold: 91,00 m Stern to centre manifold: 90,80 m Distance between cargo manifold centres: 2.010 mm Distance ships rail to manifold: 4.420 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 770 mm Distance main deck to centre of manifold: 2.100 mm Spill tank grating to centre of manifold: 750 mm |
|
Tank capacities |
Fuel oil: 1.153 m³ Diesel oil: 205 m³ Gas oil: |
|
Commerical operator |
Norient Product Pool ApS Strandvejen 52 DK-2900 Hellerup Denmark |
|
Technical operator |
Dampskibsselskabet Norden A/S Strandvejen 52 DK-2900 Hellerup Denmark |
|
Registered owner |
Dampskibsselskabet Norden A/S Strandvejen 52 DK-2900 Hellerup Denmark |
|
Latest data adjustment |
06 April 2020 |
