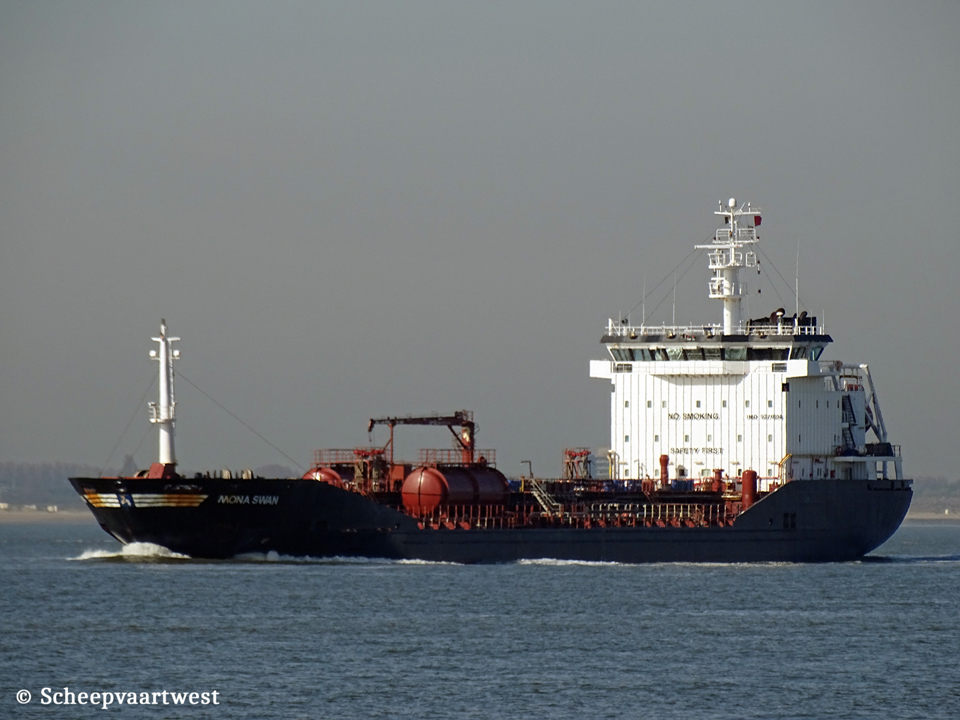

| Westerschelde 06 May 2016 |
|
Name |
MONA SWAN |
|
Previous names |
2006 - 02/2008 M. Can Bey 02/2008 - 04/2012 Erria Ida |
|
Type |
Oil & chemical tanker |
|
IMO-number |
9371804 |
|
Call sign |
OWGJ2 |
|
Flag |
Denmark |
|
Port of registry |
Middelfart |
|
Previous flags |
2006 - 02/2008 Turkey, Istanbul - Call sign: TCPN7 02/2008 - 10/2014 Malta, Valletta - Call sign: 9HIK9 |
|
GT |
7.232 |
|
DWT |
11.347 t |
|
NT |
3.643 |
|
Length |
129,75 m overall 123,40 m between perpendiculars |
|
Breadth |
19,60 m |
|
Draught |
Summer: 8,00 m Ballast: 5,15 m |
|
Height from keel to mast |
34,00 m |
|
Depth |
10,40 m moulded |
|
Speed |
Max: 14,0 knots Service: 12,0 knots |
|
Build |
2006 |
|
Keel laid |
12/05/2005 |
|
Launch date |
13/01/2006 |
|
Date of completion |
16/10/2006 |
|
Builder |
Istanbul Tersanesi Komutanlig (Istanbul Shipyard) Istanbul Turkey |
|
Yard number |
012 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
12 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 9L32/40 - 4 stroke 9 cylinder 320 x 400 mm combustion engine 4.500 kW / 6.114 hp at 750 rpm Build: 2005 Builder: MAN B&W Diesel AG, Augsburg - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
2x CHO Garioni 59,00 m² / 10,0 bar 1x CHR Garioni 41,40 m² / 10,0 bar |
|
Generators |
1x Diesel generatorset 206 kVA - 165 kW - 249 hp 2x Diesel generatorsets each 625 kVA - 500 kW - 711 hp |
|
Bow thruster |
1x 536 bhp |
|
Number of tank |
14x Cargo tanks + 2 slop tanks |
|
Number of segregations |
15 segregations |
|
Cargo tank capacity 98% |
Liquid: 12.396 m³ |
|
Slop tank capacity 98% |
254 m³ |
|
Number of pumps |
2x Ballast pumps each 250 m³/h |
|
Manifolds |
Distance from bow to centre manifold: 68,00 m Distance from stern to centre manifold: 62,00 m Distance between manifolds: 0,87 m Distance from ship side to manifold:4,58 m |
|
Tank capacities |
Fuel: 535,28 m³ Ballast: 4.730 m³ |
|
Lifting equipment |
1x Main crane - SWL 5,0 t 1x Provision crane - SWL 2,0 t |
|
ISM & commercial manager |
Uni-Tankers A/S Turbinevej 10 5500 Middelfart Denmark |
|
Registered owner |
Uni-Vessels ApS c/o Uni-Tankers A/S Turbinevej 10 5500 Middelfart Denmark |
|
Latest data adjustment |
28 April 2025 |
