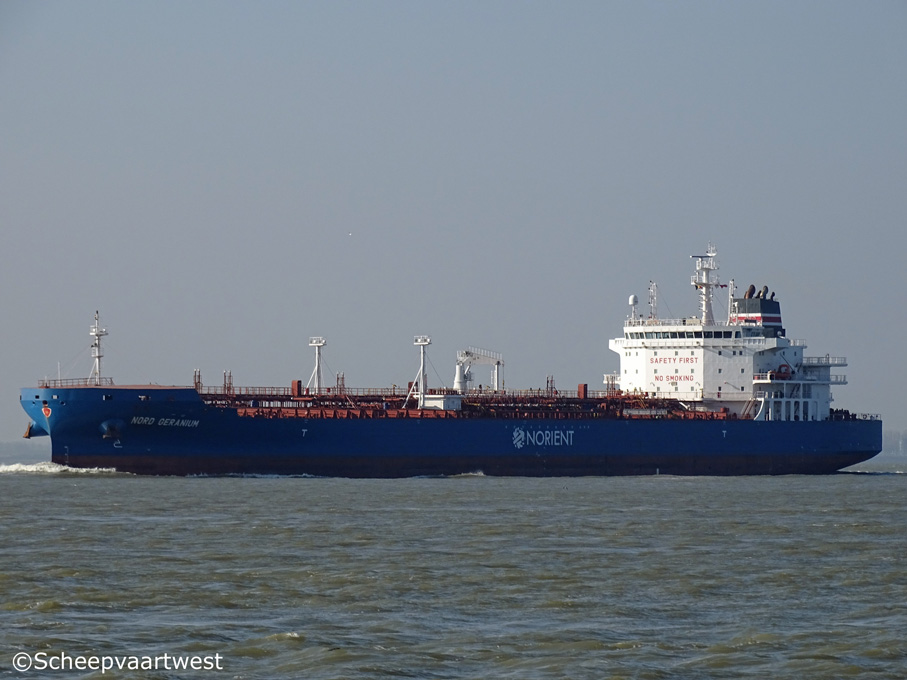

Nord Geranium 01

Westerschelde 13 April 2016

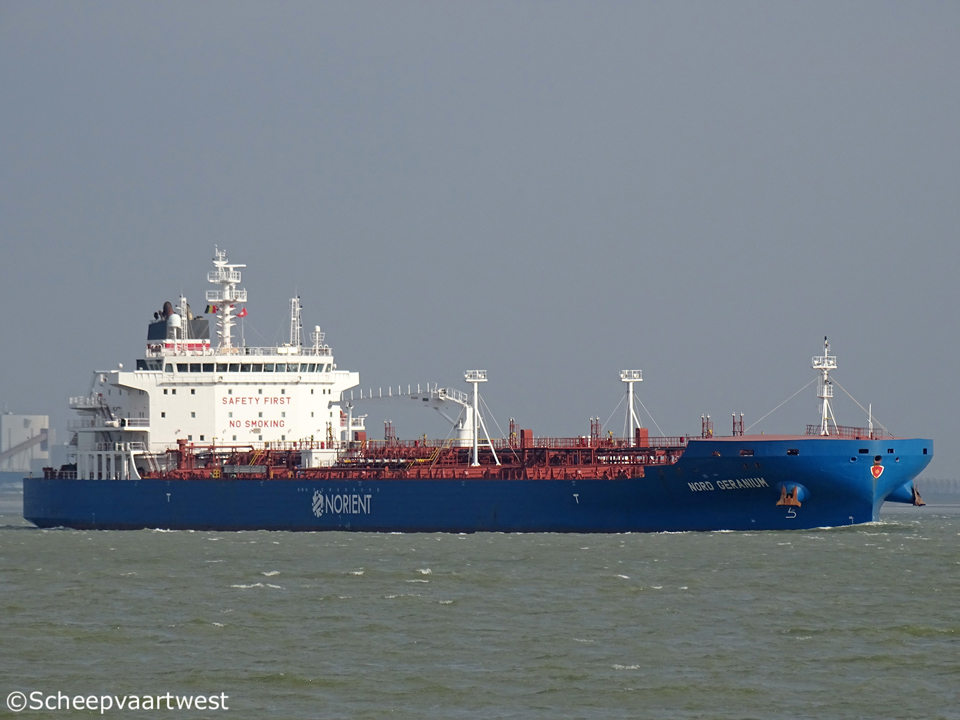

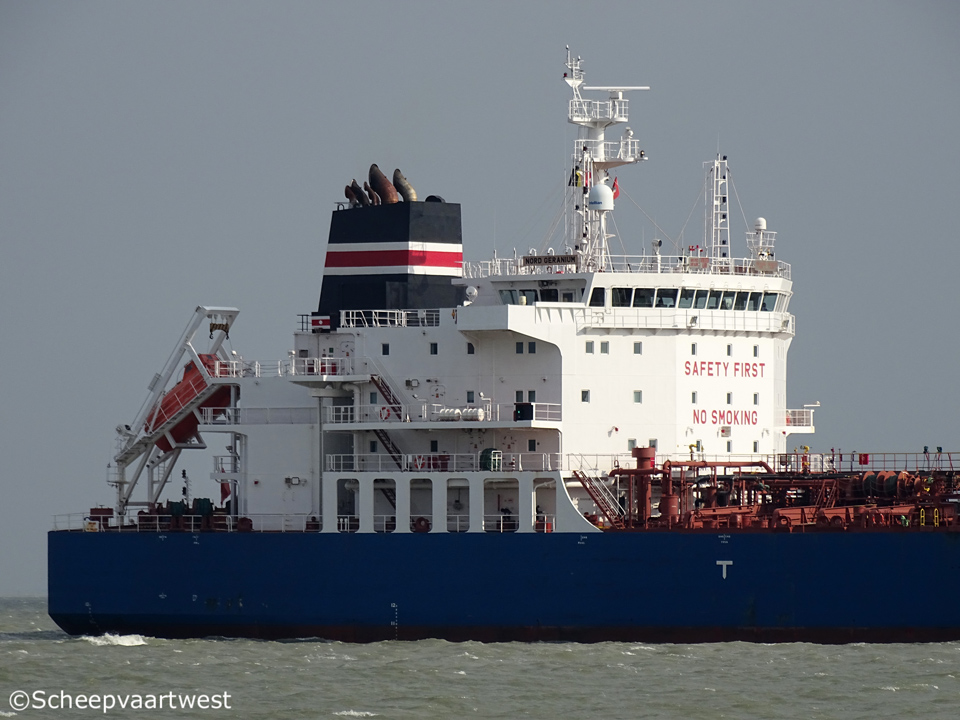

Nord Geranium 02   Nord Geranium 03
Westerschelde 16/03/16 Westerschelde 16/03/16


Name

NORD GERANIUM

Type

Tank for oil and chemicals

IMO-number

9670937

Call sign

OWMR2

Flag

Denmark

Port of registry

Hellerup

GT

25.028 t

DWT

Summer: 39.825,70 t

NT

11.195 t

Length

183,21 m overall

178,70 m between perpendiculars

Breadth

30,99 m extreme

Draught

10,96 m

Air draft

Light ship: 41,01 m

Normal ballast: 36,91 m

At loaded summer deadweight: 32,85 m

Keel to masthead

43,82 m

Freeboard

Summer: 4,04 m

Winter; 5,29 m

Depth

16,00 m moulded

Built

2014

Keel laid

22.07.2013

Launch date

05.12.2013

Date of completion

25.06.2014

Builder

Guangzhou Shipyard International Co. Ltd.

Yard number

12130013

Hull material

Steel

Hull type

Double hull

Number of cargo tanks

10

Cargo tank capacity 98%

Seg#1: 6.118 m³ 1 P/S
Seg#2: 9.100 m³ 2 P/S
Seg#3: 9.258 m³ 3 P/S
Seg#4: 9.254 m³ 4 P/S
Seg#5: 8.909 m³ 5 P/S

Total: 42.369 m³

Number of slop tanks

2

Slop tank capacity 98%

Tank 1: 858 m³
Tank 2 1.094 m³

Total: 19.52 m³

Tank coating

Cargo tanks: Phenolic Epoxy - Hempel

Ballast tanks: Modified Epoxy

Slop tanks: Phenolic epoxy

Pumps

10x Centrifugal deep well cargo pumps each 500 m³/h

2x Centrifugal deep well cargo pumps each 300 m³/h

1x Submersible centrifugal pump 200 m³/h

1x Centrifugal deep well cargo pump 70 m³/h

2x Centrifugal deep well ballast pumps each 800 m³/h

Manifolds

Bow to centre manifold: 91,00 m

Stern to centre manifold: 90,80 m

Distance bridge front to centre of manifold: 56,00 m

Distance between cargo manifold centres: 2.010 mm

Distance ships rail to manifold: 4.500 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 600 mm

Distance main deck to centre of manifold: 1.950 mm

Tank capacities

Fuel oil: 1153 m³
Diesel oil: 205 m³
Gas oil: 243 m³

Lifting equipment

1x Deck crane - SWL 10,0 t

Outreach of cranes: 4,50 m

Commercial operator

Norient Product Pool ApS as agent to owners
Strandvejen 52
DK-2900 Hellerup
Denmark

Technical operator

Dampskibsselskabet Norden A/S
Strandvejen 52
DK-2900 Hellerup
Denmark

Registered owner

Dampskibsselskabet Norden A/S
Strandvejen 52
DK-2900 Hellerup
Denmark

Latest data adjustment

30 April 2016
