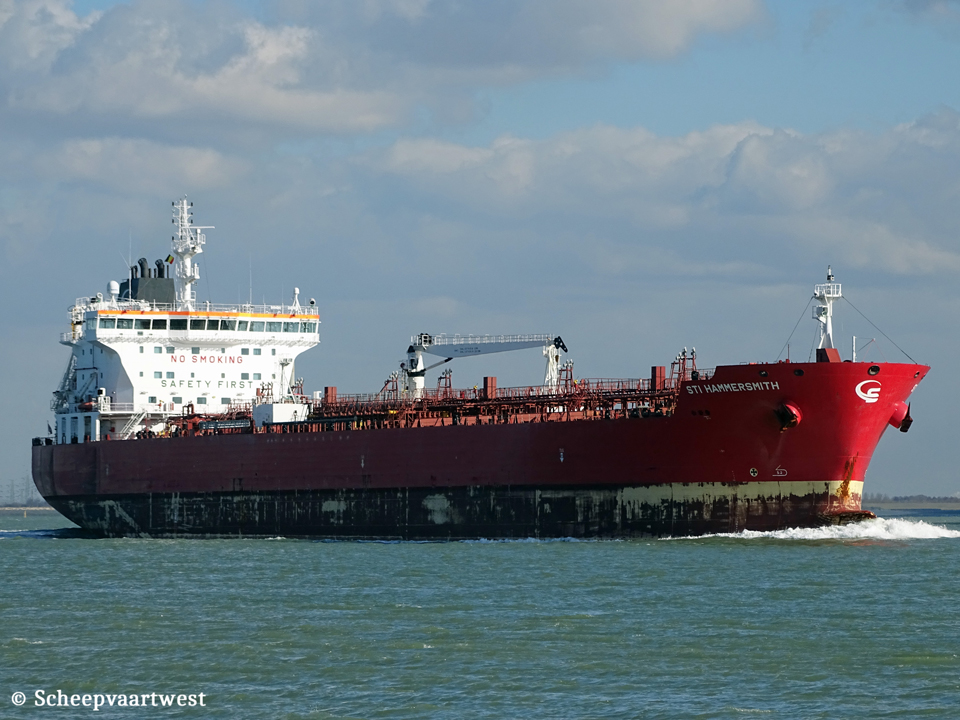

Westerschelde 27 February 2018 |
 |
|

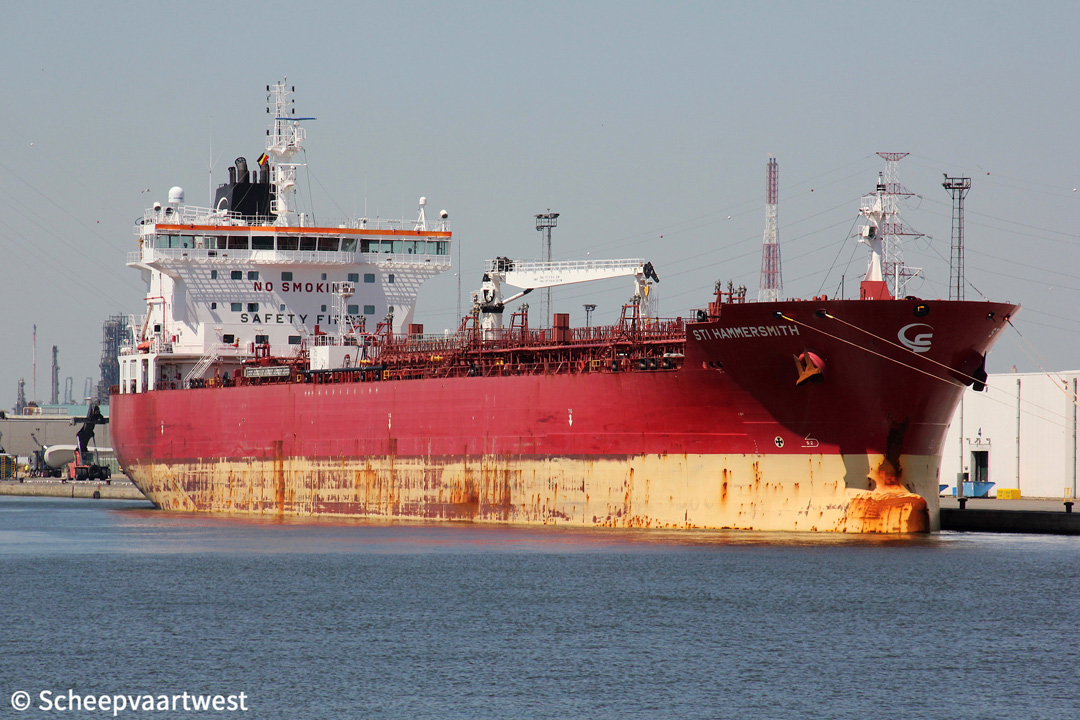

| Antwerpen 23/07/19 | |
|
Name |
STI HAMMERSMITH |
|
Type |
Chemical and oil product tanker |
|
IMO-number |
9706463 |
|
Call sign |
V7DP3 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
24.230 t |
|
DWT |
38.734 t |
|
NT |
10.458 t |
|
Light displacement |
9.700 t |
|
Length |
184,00 m overall 176,00 m between perpendiculars |
|
Breadth |
27,44 m extreme |
|
Draught |
Max: 11,91 m |
|
Keel to mast end |
46,58 m |
|
Depth |
17,60 m |
|
Speed |
14,1 knots |
|
Built |
2015 |
|
Keel laid |
26/11/2013 |
|
Launch date |
20/09/2014 |
|
Date of completion |
05/01/2015 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
2499 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x HHI/MAN-B&W 6S50ME-B9.3 - 2 stroke 6 cylinder 500 x 2.214 mm combustion engine 8.502 kW / 11.559 hp at 117,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired 1x Auxiliary boiler, composite Builder: Alfa Laval Aalborg A/S |
|
Generators |
3x Hyundai main diesel generatorsets each 1.080 kW Builder: Hyundai Heavy Industries Co., Ltd. |
|
Emergency generator |
1x Doosan AD/L 086 diesel generatorset Builder: Doosan Infracore Co., Ltd. |
|
Bow thruster |
1.070 kW |
|
Number of cargo tanks |
12 + 2 slop tanks |
|
Cargo tank capacity |
41.606 m³ |
|
Number of pumps |
12x Cargo pumps each 500 m³/h |
|
Tank capacities |
Ballast: 19.390,7 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 68 mm |
|
Commercial manager |
Scorpio Commercial Management S.A.M. Le Millenium - 9, Boulevard Charles III MC 98000 Monaco- Ville Monaco |
|
ISM manager |
Scorpio Ship Management S.A.M. 2, rue du Gabian 98000 Monaco-Ville Monaco |
|
Registered owner |
STI Hammersmith Shipping Company Limited Care of Scorpio Commercial Management SAM , Le Millenium, 9, boulevard Charles III 98000 Monaco-Ville Monaco |
|
Latest data adjustment |
10 March 2024 |
