| Westerschelde 26 August 2015 |
|
Name |

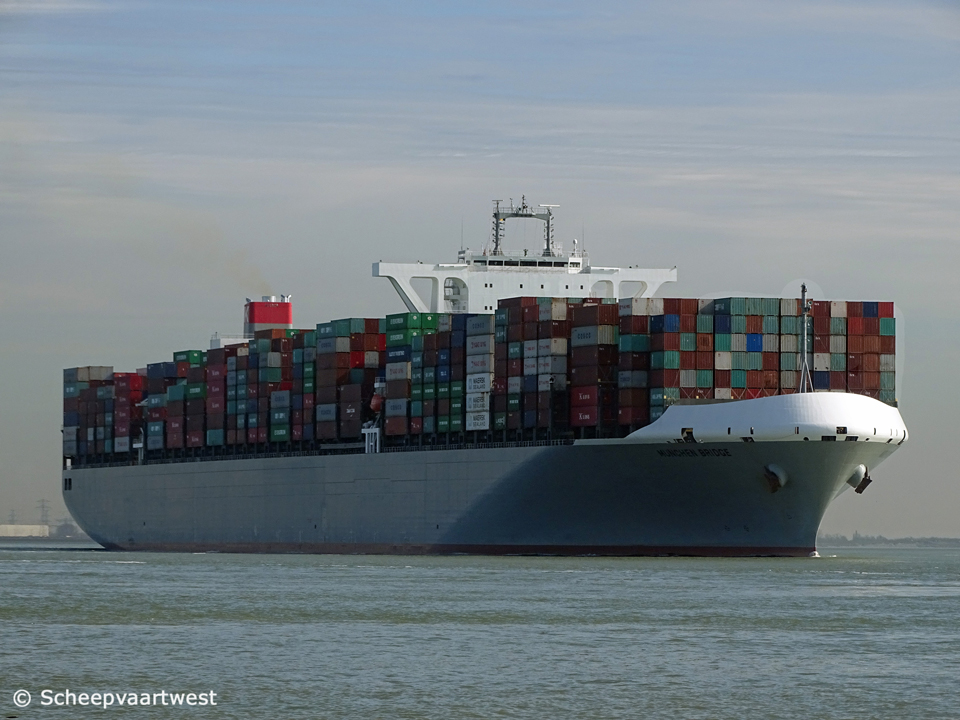

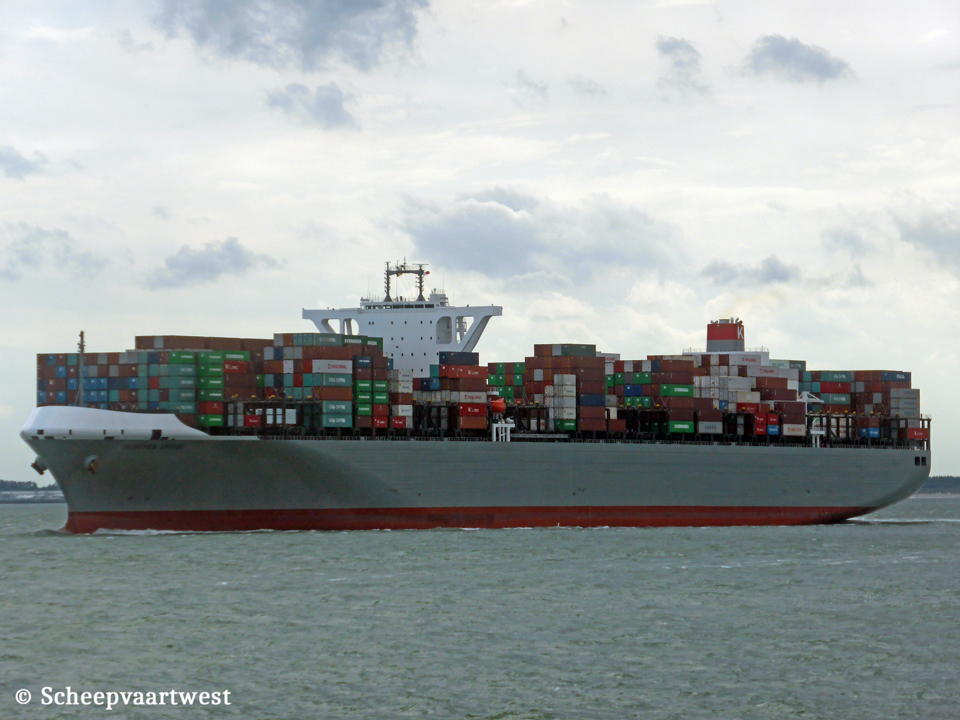

MUNCHEN BRIDGE |
|
Type |
Cellular containership |
|
IMO-number |
9706750 |
|
Call sign |
3FIZ |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
151.672 t |
|
DWT |
146.906 t |
|
NRT |
68.542 t |
|
Light ship |
48.296 t |
|
Number of 20ft containers |
13.894 |
|
Reefer capacity |
800 |
|
Length |
365,94 m overall |
|
Breadth |
51,20 m moulded |
|
Draught |
Summer: 15,52 m |
|
Moulded L x B x D |
350,00 x 51,20 x 23,20 m |
|
Registered L x B x D |
351,93 x 51,20 x 23,83 m |
|
Freeboard |
Summer: 14.460 mm |
|
Depth |
23,30 m moulded |
|
Speed |
Max: 24,0 knots |
|
Built |
2015 |
|
Keel laid |
12/05/2014 |
|
Launch date |
24/03/2015 |
|
Date of completion |
13/07/2015 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Hiroshima Shipyard Japan |
|
Yard number |
2533 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsui/MAN-B&W 11S90ME-C9.2 - 2 stroke single acting 11 cylinder 900 x 3.260 mm combustion engine 48.900 kW / 66.484 hp at 76,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 1.050 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler – 0,80 MPa Evaporation: 7,60 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
4x Daihatsu 8DC-32 - 4 stroke 8 cylinder 320 x 400 mm diesel engines each Mcr 3.650 kW connected with generators each 3.500 kW / 6.600 Volt 60 Hz |
|
Bow thruster |
2x Controllable pitch thrusters each 2.040 kW / 2.774 bhp, forward |
|
Number of holds |
9 |
|
Tank capacities |
Fuel oil: 10.276,61 m³ Fresh water: 343,44 m³ Water ballast: 40.443,94 m³ |
|
Cargo gear |
Gearless |
|
Manager |
Shoei Kisen Kaisha Ltd. Japan |
|
Registered owner |
Marugame Kisen Kaisha, Ltd. & La Darien Navegacion S.A. Care of Shoei Kisen KK , 4-52, Kora-cho 1-chome, Imabari-shi Ehime-ken, 799-2111 Japan |
|
Renamed |
07/2020 One Munchen Republic of Panama, Panama City – Call sign: 3FIZ Registered owner: Marugame Kisen Kaisha, Ltd. & La Darien Navegacion S.A. - Japan ISM manager: Fleet Ship Management Pte Ltd. - Republic of Singapore Commercial manager: Shoei Kisen KK - Japan |
|
Latest data adjustment |
28 April 2024 |
