| Westerschelde 17 February 2018 |
|
Name |

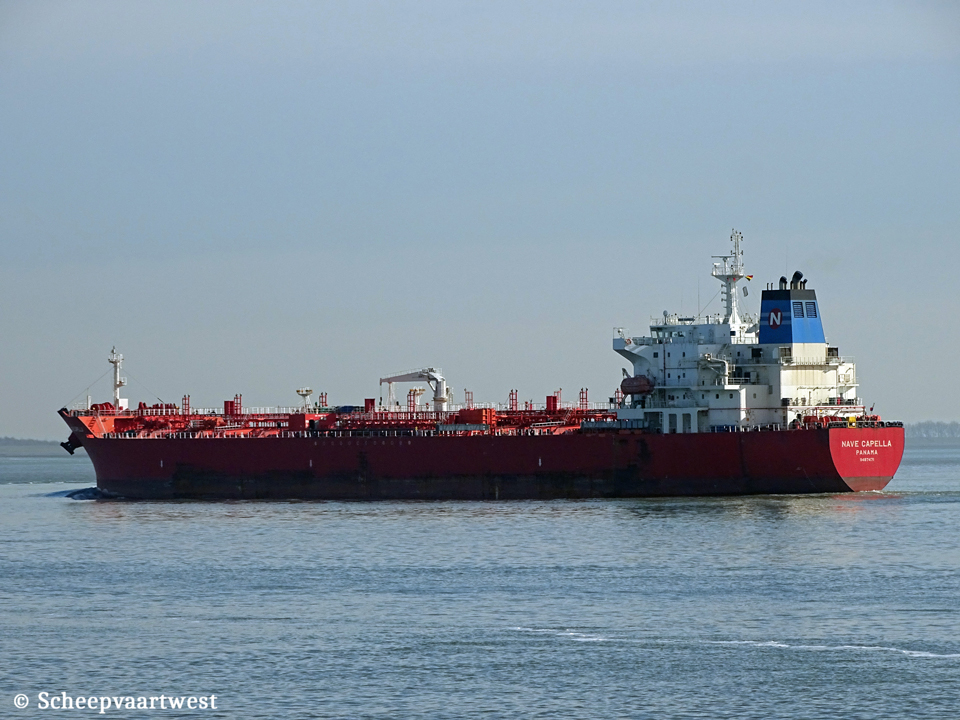

NAVE CAPELLA |
|
Type |
Chemical/Oil products tanker |
|
IMO-number |
9487471 |
|
Call sign |
3FHJ |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
30.052 t |
|
DWT |
49.995 t |
|
NRT |
13.255 t |
|
Length |
183,10 m overall |
|
Breadth |
30,20 m moulded |
|
Draught |
Summer: 13,08 m |
|
Moulded L x B x D |
174,00 x 32,20 x 19,10 m |
|
Registered L x B x D |
174,54 x 32,20 x 19,10 m |
|
Freeboard |
Summer: 6.053 mm |
|
Depth |
19,10 m moulded |
|
Speed |
Max: 15,9 knots |
|
Built |
2013 |
|
Keel laid |
29/12/2011 |
|
Launch date |
07/05/2013 |
|
Date of completion |
09/07/2013 |
|
Builder |
Dae Sun Shipbuilding & & Engineering Co. Busan South Korea |
|
Yard number |
SB509 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 9.960 kW at 127,0 rpm Manufacturer: STX Engine Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 480 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 0,90 MPa Evaporation: 21,30 t/h Manufacturer: Aalborg Industries A.S. |
|
Generators |
4x Generatorsets total 3.563 kVA |
|
Cargo tank capacity 98% |
Liquid: 52.593 m³ incl. slops |
|
Tank capacities |
Fuel oil: 2.322 m³ Fresh water: 272 m³ |
|
Manager |
Navios Tankers Management 85 Akti Miaouli Street Piraeus 185 38 Greece |
|
Registered owner |
Skiathos Shipping Corporation Piraeus Greece |
|
Latest data adjustment |
19 April 2024 |
