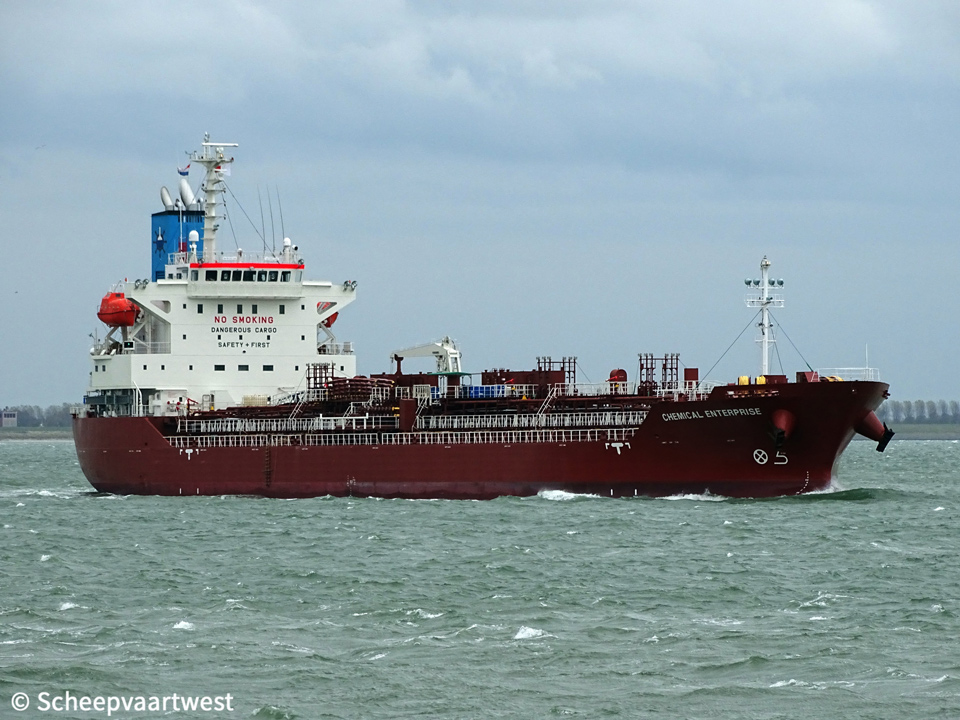

Chemical Enterprise 01

Westerschelde 07 November 2018

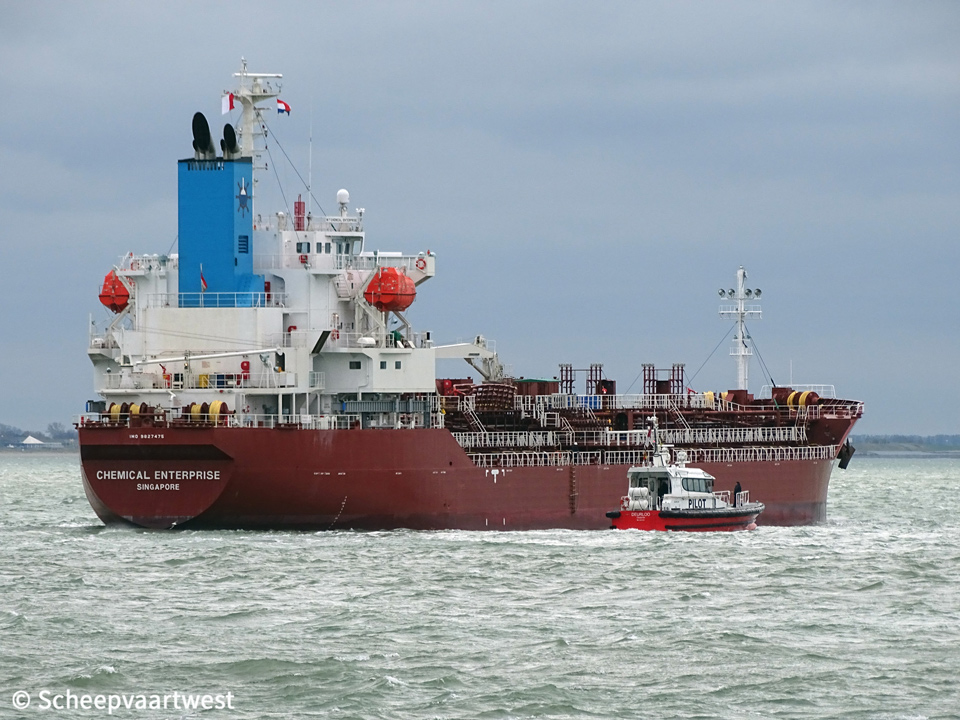

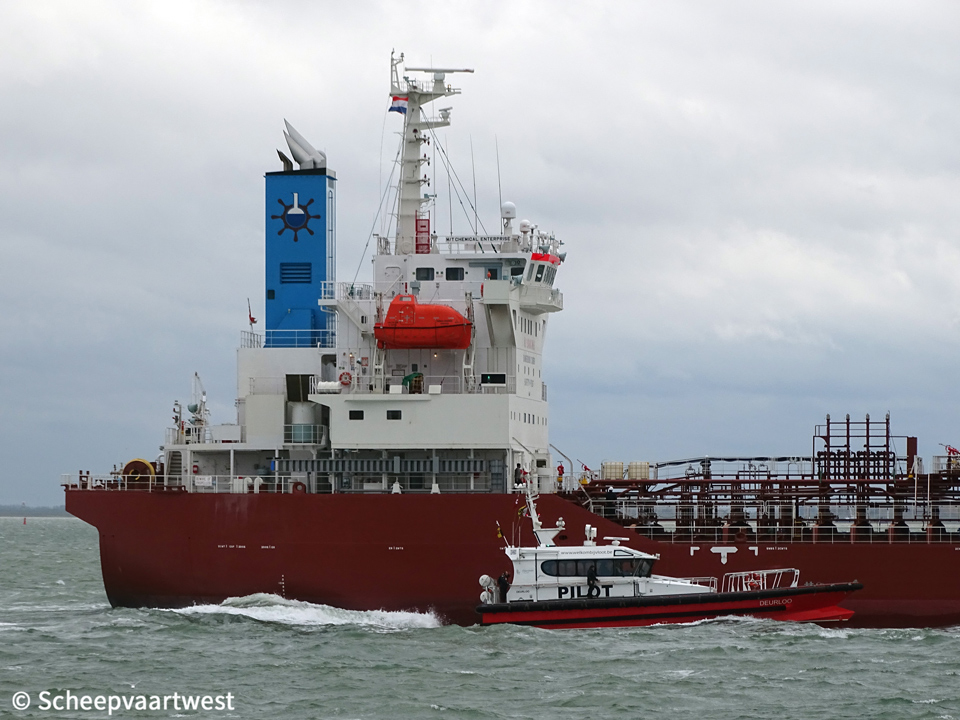

Chemical Enterprise 03   Chemical Enterprise 02
Westerschelde 07/11/18   Westerschelde 07/11/18













Name

CHEMICAL ENTERPRISE

Type

Tank for oil and Chemicals

IMO-number

9827475

Call sign

9V5702

Flag

Republic of Singapore

Port of registry

Singapore City

GT

9.230 t registered

DWT

Summer: 15.945 t

NT

5.040 t registered

Length

136,03 m overall

Breadth

21,60 m moulded

Draught

Max: 9,11 m

Moulded L x B x D

125,00 x 21,60 x 12,00 m

Registered L x B x D

125,18 x 21,60 x 12,00 m

Freeboard

2.914 mm

Depth

12,00 m moulded

Speed

14,0 knots

Built

2018

Keel laid

17/12/2015

Launch date

12/06/2018

Date of completion

30/08/2018

Builder

Asakawa Shipbuilding Co. Ltd.
Japan

Yard number

630

Hull material

Steel

Hull type

Double hull

Main engine

1x 2 stroke single acting 6 cylinder 350 x 1.550 mm combustion engine 4.440 kW at 167,0 rpm

Manufacturer: Akasaka Diesels Limited

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 350 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 9,8 bar

Evaporation: 15,83 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Generatorsets total 2.165 kVA

Cargo tank capacity

Liquid: 17.566,79 m³

Tank capacities

Fuel oil: 863,40 m³

Fresh water: 286,95 m

Manager

Fleet Management Limited

Registered owner

United Sky Shipping Pte Ltd.

Latest data adjustment

04 November 2019
