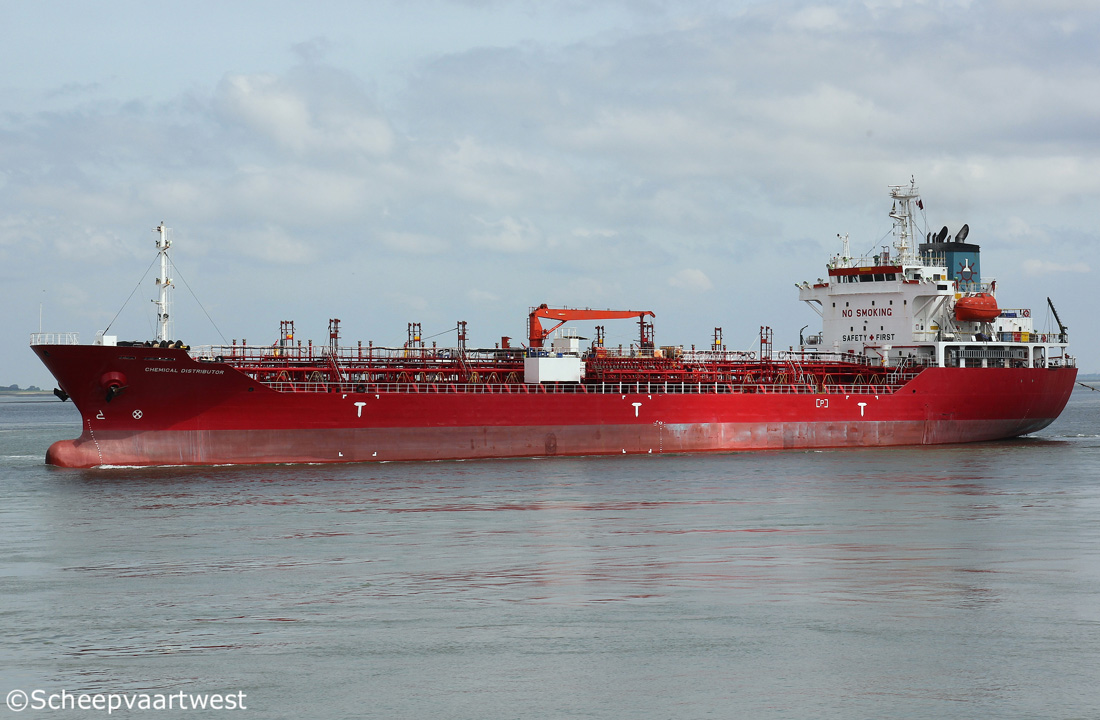

Chemical Distributor 02

Westerschelde 21 August 2017

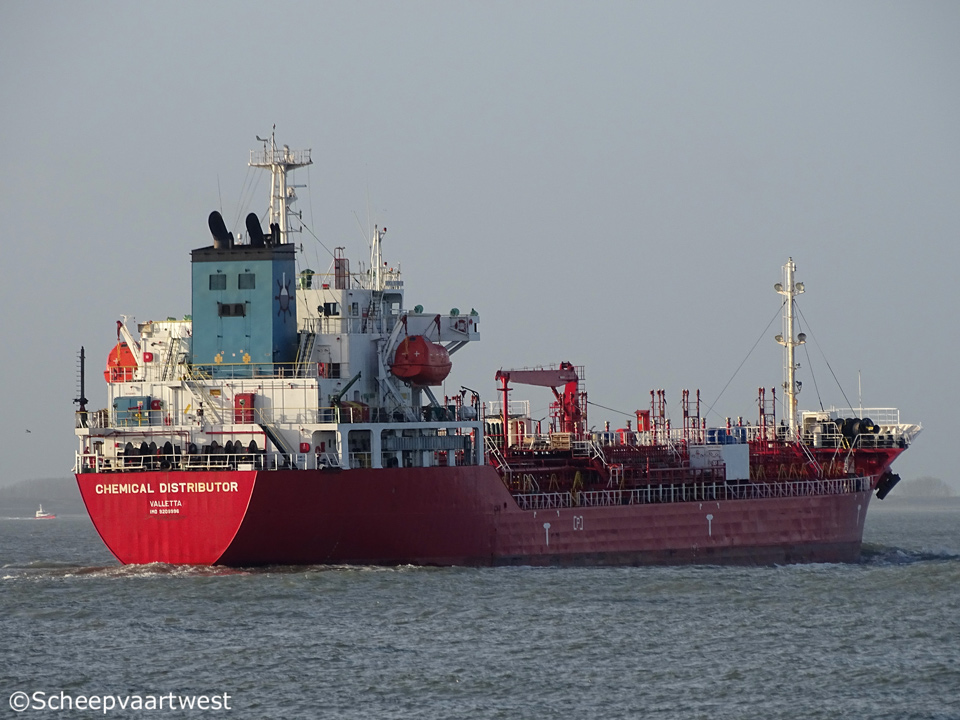

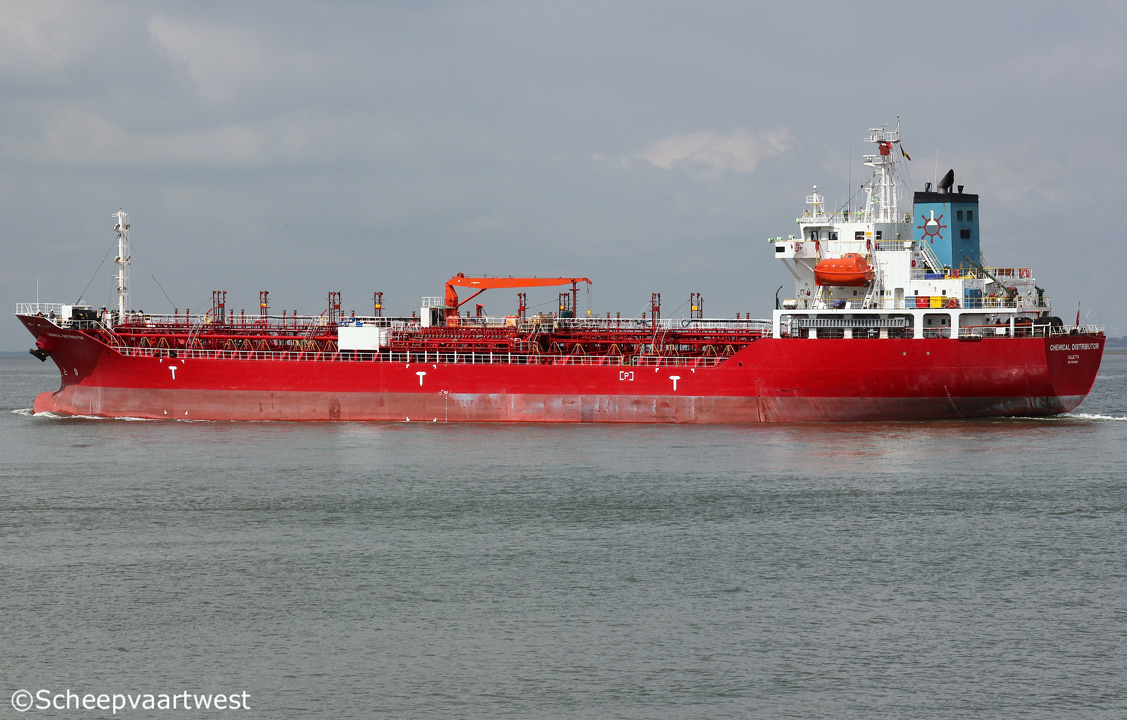

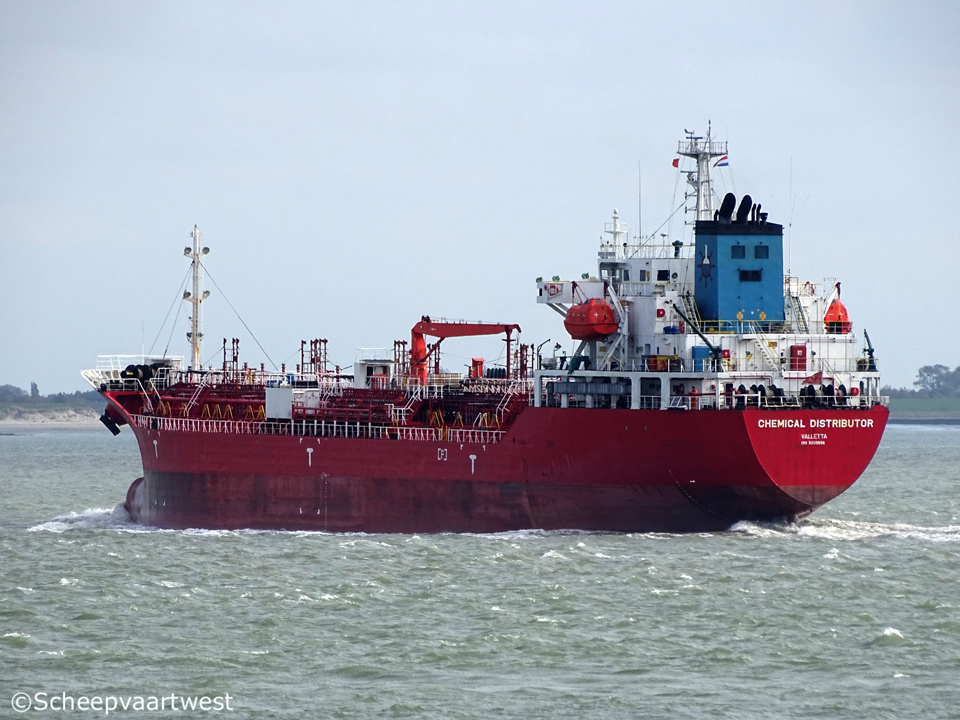

Chemical Distributor 03   Chemical Distributor 01   Chemical Distributor 04
Westerschelde 21/08/17 Westerschelde 18/12/17   Westerschelde 13/10/17



Name

CHEMICAL DISTRIBUTOR

Type

Chemical & Oil product tanker

IMO-number

9209996

Call sign

9HDQ8

Flag

Malta

Port of registry

Valletta

GT

7.228 t registered

DWT

Summer: 12.288 t

NT

3.979 t registered

Length

124,02 m overall

Breadth

20,60 m moulded

Draught

Summer: 8,56 m

Moulded L x B x D

116,00 x 20,60 x 11,20 m

Registered L x B x D

116,08 x 20,60 x 11,20 m

Freeboard

Summer: 2.662 mm

Depth

11,20 m moulded

Speed

15,1 knots

Built

1999

Keel laid

30-04-1999

Launch date

05-08-1999

Date of completion

26-10-1999

Builder

Watanabe Shipbuilding Co., Ltd.
Imabari
Japan

Yard number

313

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W-Hanshin 7S35MC - 2 stroke single acting 7 cylinder 350 x 1.400 mm diesel engine 4.891 kW at 170 rpm

Manufacturer: The Hanshin Diesel Works, Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 370 mm

Propellers

1x Fixed Propeller

Boilers

1x Auxiliary vertical boiler - 9,4 bar

Evaporation: 12,70 t/h

Manufacturer: Miura Co., Ltd.

Generators

2x Main diesel generatorsets each 400 kW

Bow thruster

1x 505 kW

Number of tanks

33

Cargo tank capacity

Liquid: 13.536 m³

Tank capacities

Fuel oil: 789 m³

Fresh water: 267 m³

Crew

17

Manager

Fleet Management Limited

Operator

Chemship B.V.
Essebaan 65
2908 LJ Capelle aan den IJssel
The Netherlands

Registered owner

Chemical Flair Inc.

Latest data adjustment

16 January 2018
