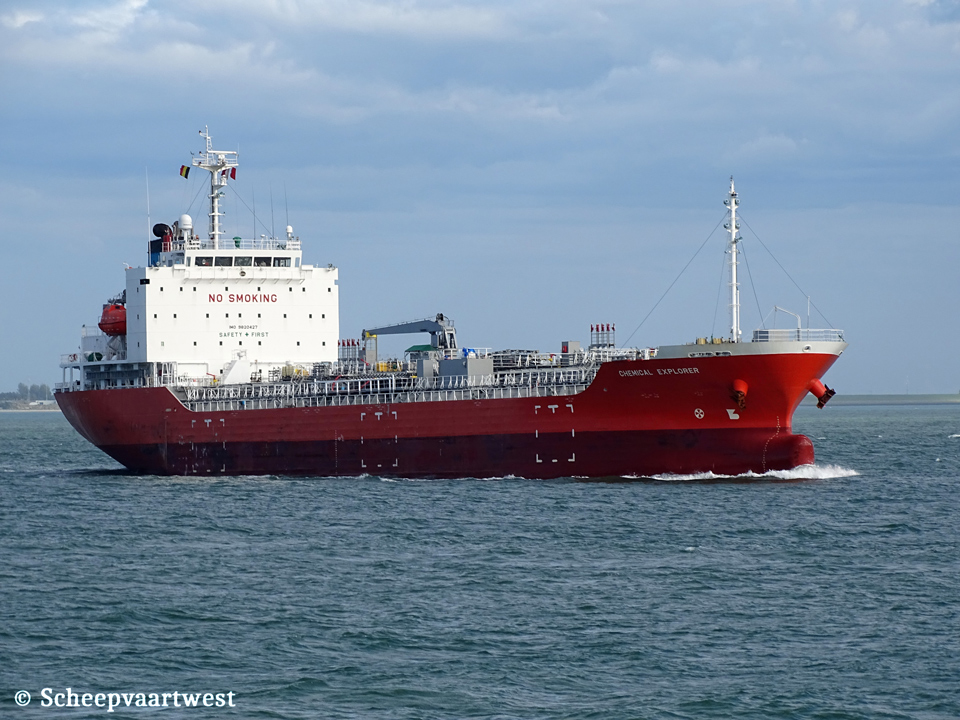

Chemical Explorer IMO 9820427 01

Westerschelde 12 September 2019

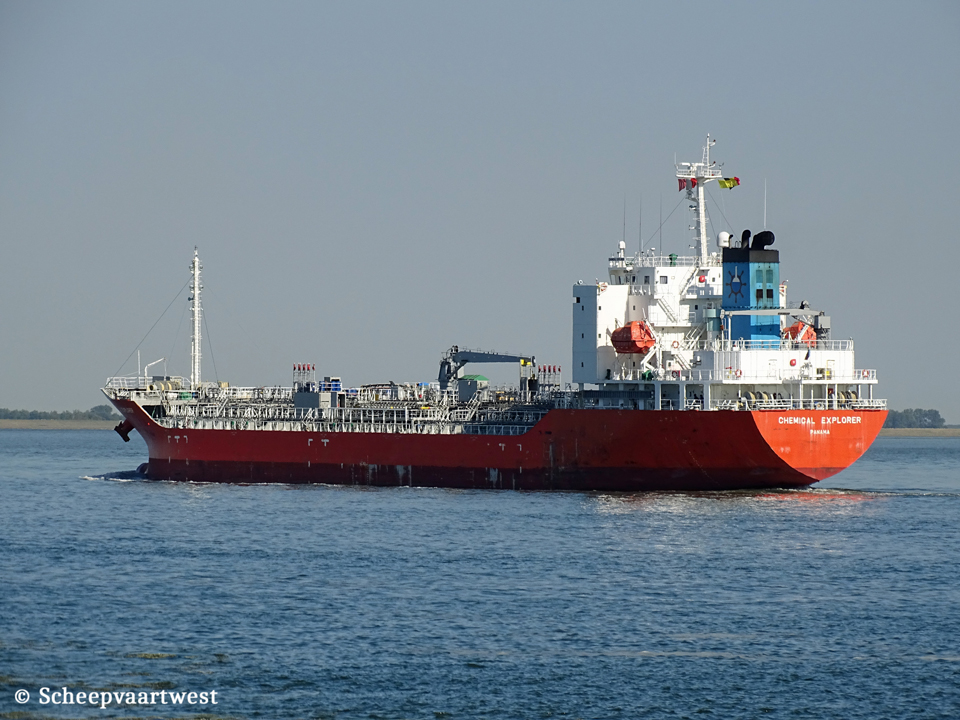

Chemical Explorer IMO 9820427 02
Westerschelde 07/08/20


Name

CHEMICAL EXPLORER

Type

Oil/Chemical carrier

IMO-number

9820427

Call sign

3FAJ7

Flag

Republic of Panama

Port of registry

Panama City

GT

7.997 t registered

DWT

12.642,87 t

NT

3.890 t registered

Length

126,76 m overall

Breadth

20,82 m extreme

Draught

Summer: 8,10 m

Keel to mast end

39,10 m

Moulded L x B x D

119,60 x 20,80 x 10,95 m

Registered L x B x D

119,89 x 20,80 x 10,95 m

Freeboard

2.877 mm

Depth

10,95 m moulder

Speed

Service: 12,0 knots

Max: 16,9 knots

Built

2018

Keel laid

28/10/2015

Launch date

21/12/2017

Date of completion

10/04/2018

Builder

Murakami Hide Shipyard

Imabari

Japan

Yard number

637

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W 6S35ME-B9 - 2 stroke single acting 6 cylinder 350 x 1.550 mm combustion engine 3.900 kW / 5.302 hp at 155,0 rpm

Manufacturer: Hitachi Zosen Corporation Innoshima Works - Japan

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 380 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 0,98 MPa

Evaporation: 15,61 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Generatorsets total 1.769 kVA

Number of tanks

16

Cargo tank capacity

Liquid: 14.134,74 m³

Tank capacities

Fuel oil: 744,73 m³

Fresh water: 302,77 m³

Commercial manager

Chemship BV

Essebaan 65

2908 LJ Capelle a/d IJssel

The Netherlands

ISM manager

Fleet Management Limited

27th Floor, South Island Place, 8, Wong Chuk Hang Road, Southern

Hong Kong

China

Registered owner

Chemical Explorer Shipping B.V.

Essebaan 65

2908 LJ Capelle a/d IJssel

The Netherlands

Latest data adjustment

14 October 2023
