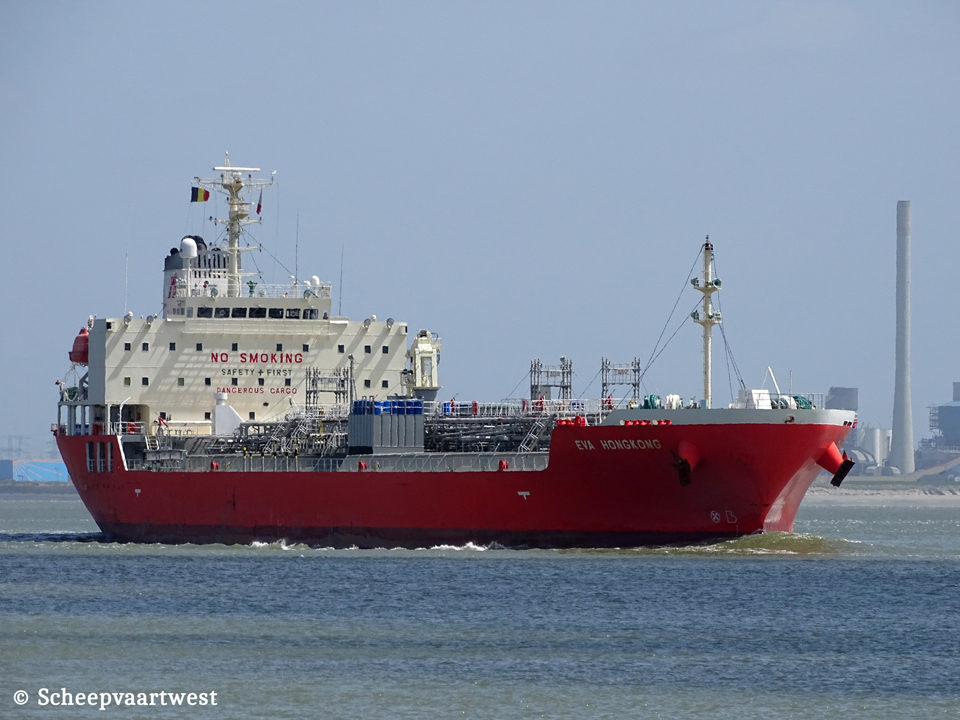

Eva Hongkong IMO 9800001 03

Westerschelde 17 May 2018

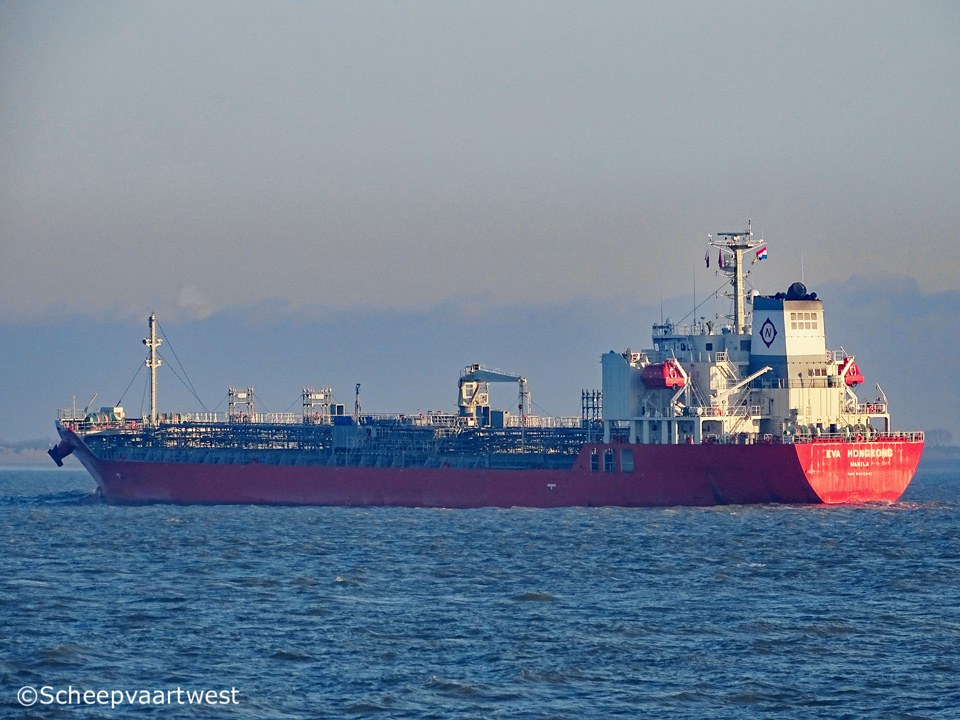

Eva Hongkong 02   Eva Hongkong 01
Westerschelde 12/12/17   Antwerpen 15/05/17


Name

EVA HONGKONG

Type

Oil/Chemical tanker

IMO-number

9800001

Call sign

DUIW

Flag

Philippines

Port of registry

Manila

GT

11.773 t

Suez: 12.439,23 t

DWT

Summer: 19.861,32 t

Winter: 19.280,30 t

NT

6.073 t

Suez: 11.175,93 t

Panama: 9.904 t

Displacement

Summer: 25.263,67 t

Winter: 24.682,65 t

Length

145,53 m overall

137,00 m between perpendiculars

Breadth

23,73 m extreme

Keel to masthead

37,97 m

Air draft

31,39 m ballast

28,25 m at loaded summer deadweight

Freeboard

Summer: 3.660 mm

Winter: 3.870 mm

Depth

13,35 m moulded

Speed

15,0 knots ballast

14,0 knots laden

13,0 knots economic

Built

2017

Date of completion

09/03/2017

Builder

Usuki Shipyard Co., Ltd.

Japan

Yard number

1761

Hull material

Steel

Hull type

Double hull

Watertight compartments

12

Continuous decks

1

Main engine

1x MAN-B&W/Hitachi - 2 stroke 6 cylinder 400 x 1.770 mm combustion engine 5.700 kW / 7.745 hp at 124,0 rpm

Built: 16/09/2016

Manufacturer: HItachi Zosen Corporation Innoshima Works, Innoshima - Japan

Propellers

1x Fixed controllable pitch propeller -aft at 124,0 rpm

Boilers

1x CHO Miura 184,20 m² - 7,0 bar

1x CHR Miura 398,30 m² - 6,0 bar

Generators

3x Yanmar 6EY18ALW diesel generatorsets each 575 kVA - 460 kW - 679 hp

Emergency generator

1x Diesel generatorset 65 kVA - 52 kW - 82 hp

Bow thruster

1x 640 kW / 870 bhp

Number of cargo tanks

16 + 2 slop tanks

Total cargo tank cap. 98%

21.015,79 m³

Slop tank capacity 98%

1.177,86 m³

Pumps

12x Centrifugal cargo pumps each 250 m³/h

2x Centrifugal cargo pumps each 200 m³/h

2x Centrifugal ballast pumps each 300 m³/h

Manifolds

Bow to centre manifold: 77,15 m

Stern to centre manifold: 68,38 m

Distance bridge front to centre of manifold: 41,97 m

Distance between cargo manifold centres: 380 mm

Distance ships rail to manifold: 4.425 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 998 mm

Distance main deck to centre of manifold: 2.760 mm

Spill tank grating to centre of manifold: 950 mm

Tank capacities

Fuel oil: 931,34 m³

Diesel oil: 255,68 m³

Lifting equipment

1x Crane - SWL 10,0 t upper deck midship

Technical operator

Victoria Ship Management inc.

19th Floor Nihonbashi 1-Chome Bldg.

1-4-1 Nihonbashi, Chuo-ku

Tokyo, 103-0027

Japan

Commercial operator

Hansa Tankers AS

Kalfarveien 57A

5022 Bergen

Norway

Disponent owner

Hansa Tankers AS

Kalfarveien 57A

5022 Bergen

Norway

Registered owner

Seafarers shipping Inc.

RCM Bldg., 1418 San Marcelino Street

Ermita, Manila -1000

Philippines

Latest data adjustment

11 February 2023
