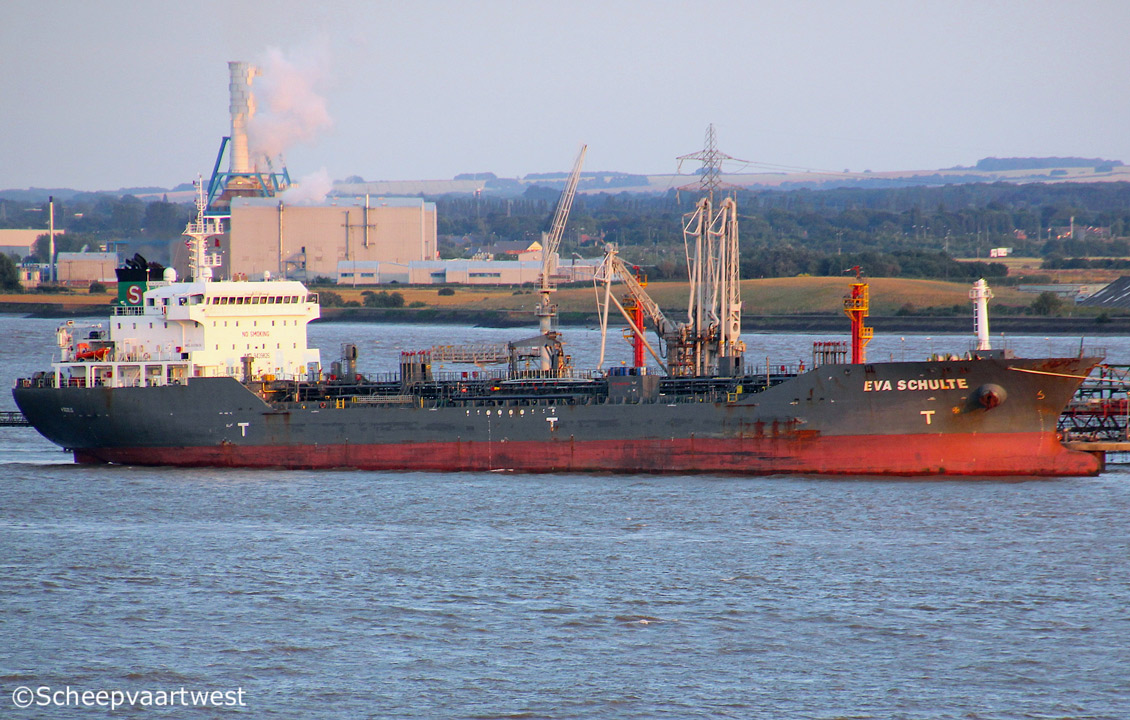

Immingham, United Kingdom 13 July 2018 |
 |

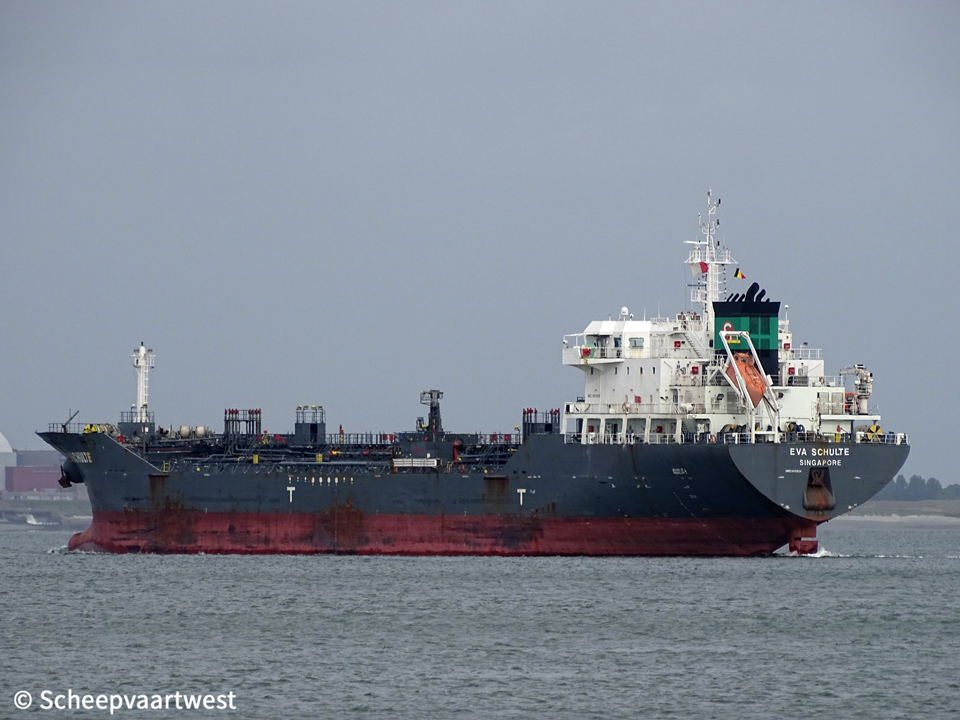

| Westerschelde 22/06/18 |
|
Name |
EVA SCHULTE |
|
Type |
Oil tanker/Chemical tanker |
|
IMO-number |
9439826 |
|
Call sign |
9V8141 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
11.233 t registered Suez: 11.980,88 t |
|
DWT |
16.621 t |
|
NT |
5.041 t registered Panama: 9.455 t Suez: 10.299,57 t |
|
Length |
145,15 m overall 135,60 m between perpendiculars |
|
Breadth |
23,00 m |
|
Draught |
8,80 m |
|
Freeboard |
3.715 mm |
|
Depth |
12,50 m moulded |
|
Speed |
Max: 17,8 knots |
|
Built |
2010 |
|
Keel laid |
30/05/2006 |
|
Launch date |
17/12/2008 |
|
Date of completion |
10/02/2010 |
|
Builder |
Jiangxi Jiangzhou Union Shipbuilding Co., Ltd. |
|
Yard number |
JZ1009 |
|
Hull material |
Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight : 7 Oil tight: 10 |
|
Main engine |
1x MAN-B&W-STX 6S35MC-MK7 - 2 stroke 6 cylinder 350 x 1.400 mm combustion engine 4.440 kW / 6.037 bhp at 173 rpm Manufacturer: STX Engine Co., Ltd. |
|
Propellers |
1x fixed propeller Manufacturer: Wartsila CME Zhenjiang Propeller Co., Ltd. |
|
Boilers |
2x Auxiliary oil fired boiler - 7,0 bar 1x Exhaust gas boiler - 7,0 bar Manufacturer: Zhangjiagang Greens Shazhou Boiler Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 600 kW Manufacturer: Wuxi Fenxi Electrical Machine Co. Ltd. |
|
Bow thruster |
750 kW |
|
Number of cargo tanks |
15 |
|
Cargo tank capacity 100% |
19.784,36 m³ |
|
Number of tanks |
Ballast: 14 Fuel oil: 9 Lubricating oil: 8 Diesel oil: 4 Fresh water: 3 Chain: 2 Mineral oil: 1 Waste water: 1 |
|
Tank capacities 100% |
Diesel Oil: 92,12 m³ Freshwater: 292,09 m³ Fuel Oil: 713,24 m³ Lube Oil: 85,34 m³ Tank Ballast: 7.439,86 m³ |
|
Manager |
Bernhard Schulte Shipmanagement (Cyprus) Limited |
|
Operator |
Bernhard Schulte GmbH & Co. KG. |
|
Registered owner |
Fort Canning Park Shipping Co. Pte. Ltd. |
|
Latest data adjustment |
19 August 2018 |
