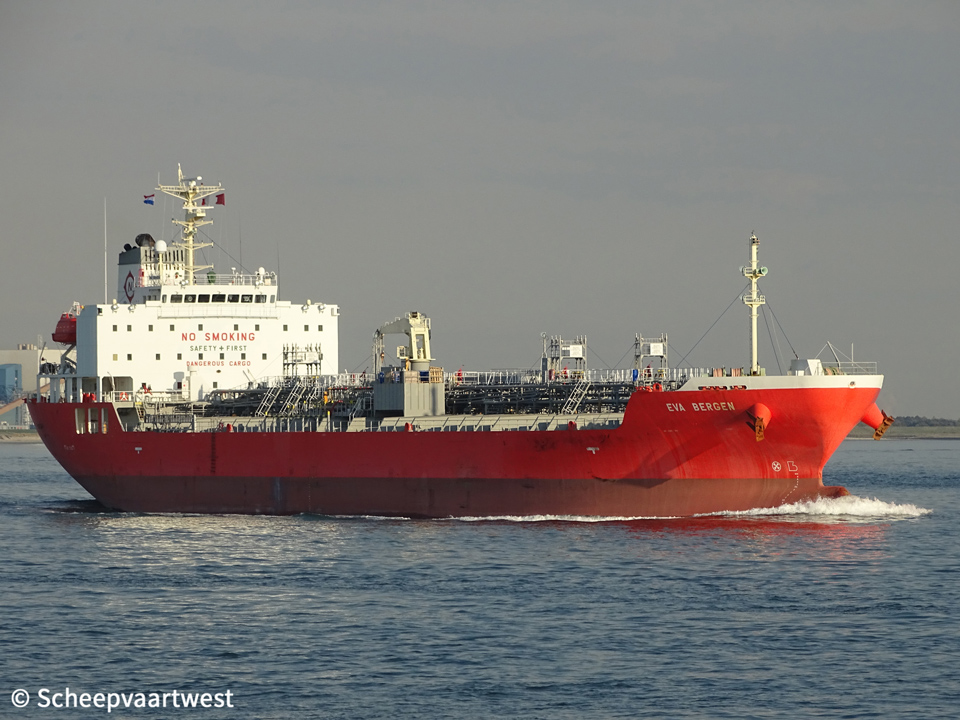

Eva Bergen 01

Westerschelde 25 September 2018



Name

EVA BERGEN

Type

Chemical & oil product tanker

IMO-number

9800013

Call sign

DUJQ

Flag

Philippines

Port of registry

Manila

GT

11.773 t

Suez: 12.439,23 t

DWT

Summer: 19.888,66 t

Winter: 19.307,64 t

NT

6.073 t

Suez: 11.175,93 t

Panama: 9/904 t

Displacement

Summer: 25.263,67 t

Winter: 34.682,65 t

Length

145,53 m overall

137,00 m between perpendiculars

Breadth

23,73 m extreme

Draught

Summer: 9,72 m

Winter: 9,51 m

Keel to masthead

37,97 m

Air draft

Summer deadweight: 28,25 m

Normal ballast: 31,35 m

Lightship: 35,57 m

Freeboard

Summer: 6.665 mm

Winter: 3.867 mm

Depth

11,35 m moulded

Speed

Ballast:

Max: 15,0 knots - Economic: 14,0 knots

Laden:

Max: 14,0 knots - Economic: 13,0 knots

Built

2018

Launch date

12/11/2017

Date of completion

31/01/2018

Builder

Usuki Shipyard Co Ltd.

Usuki

Japan

Yard number

1762

Hull material

Steel

Hull type

Double hull

Watertight compartments

12

Continuous decks

1

Main engine

1x Hitachi/MAN-B&W 6S40ME-B9 - 2 stroke single acting 6 cylinder 400 x 1.770 mm combustion engine 5.700 kW / 7.745 hp at 124,0 rpm

Build: 03/10/2017

Builder: Hitachi Zosen Corporation Innoshima Works, Innoshima - Japan

Propellers

1x Fixed pitch propeller - aft at 124,0 rpm

Boilers

1x CHO Miura 161,70 m² - 9,0 bar

1x CHR Miura 398,30 m² - 14,0 bar

Generators

3x Yanmar 6EY18ALW - 4 stroke 6 cylinder 180 x 280 mm diesel engines each 500 kW connected with generators each 460 kW /575 kVA

Emergency generator

1x diesel generatorset 65 kVA - 52 kW - 82 hp

Bow thruster

1x Tunnel thruster 640 kW / 870 bhp, forward

Number of cargo tanks

16

Cargo tanks capacity 98%

20.953,21 m³

Number of slop tanks

2

Slop tank capacity 98%

1.177,81 m³

Pumps

16x Centrifugal cargo pumps each 250 m³/h

2x Centrifugal cargo pumps each 200 m³/h

2x Centrifugal ballast pumps each 300 m³/h

Manifolds

Distance bridge front to centre of manifold: 37,97 m

Bow to centre manifold: 77,15 m

Stern to centre manifold: 68,38 m

Distance between cargo manifold centres: 380 mm

Distance ships rail to manifold: 4.425 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 998 mm

Distance main deck to centre of manifold: 2.760 mm

Spill tank grating to centre of manifold: 950 mm

Tank capacities

Fuel oil: 931,34 m³

Gas oil: 255,68 m³

Lifting equipment

1x Crane - SWL 10,0 t

Crew size

21

Technical operator

Victoria Ship Management Inc.

19th Floor Nihonbashi 1-Chome Bldg., 1-4-1 Nihonbashi, Chuo-ku

Tokyo, 103-0027

Japan

Commercial operator

Hansa Tankers AS

Kalfarveien 57A

5022 Bergen

Norway

Registered owner

Sea Queen shipping Inc.

RCM Bldg., I 1418 San Marcelino Street, Ermita, Manila

Philippines

Disponent owner

Hansa Tankers AS

Latest data adjustment

13 September 2020
