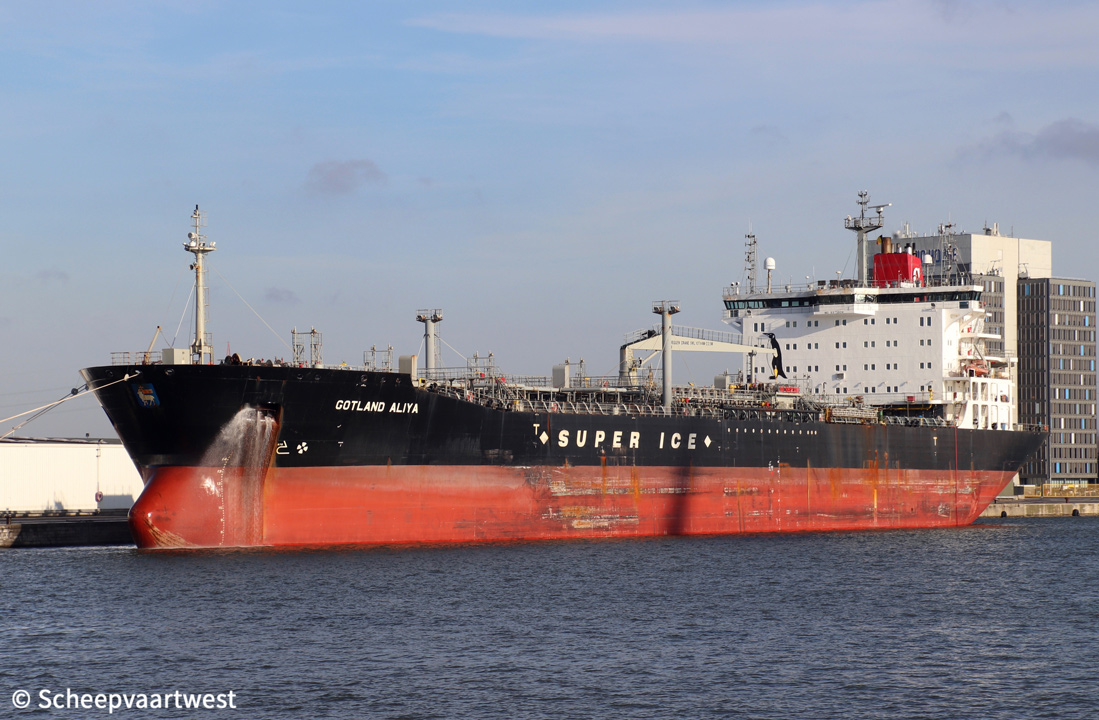

Gotland Aliya 04

Antwerpen 16 January 2020



Gotland Aliya 01   Gotland Aliya 02

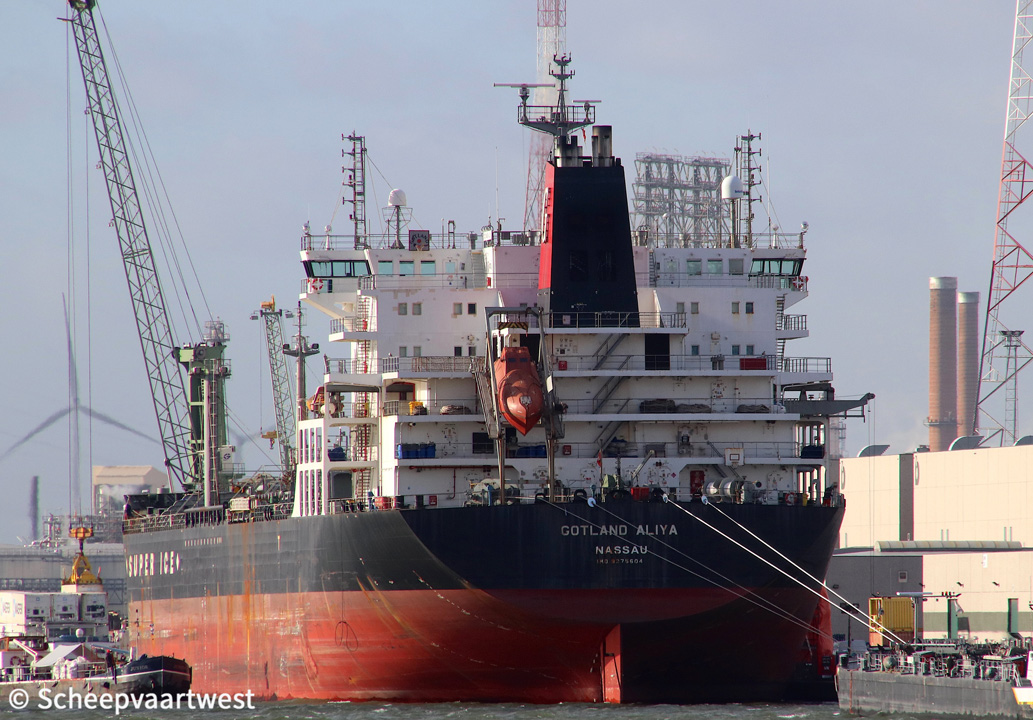

Antwerpen 28/12/17   Antwerpen 29/01/20













Name

GOTLAND ALIYA

Type

Tanker for oil and chemicals

IMO-number

9375604

Call sign

C6YU4

Flag

Bahamas

Port of registry

Nassau

Previous flags

2008 - 2010 Denmark

GT

29.283 t

Suez: 30.232,26 t

DWT

Summer: 53.187 t

NT

15.939 t

Suez: 25.575,48 t

Panama: 24.313 t

Length

183,20 m overall

174,44 m between perpendiculars

Breadth

32,20 m

Draught

Summer: 12,93 m

Winter: 12,93 m

Lightship: 2,71 m

Keel to masthead

47,70 m

Air draft

Lightship: 44,99 m

Normal ballast: 40,00 m

At loaded summer deadweight: 34,77 m

Freeboard

Summer: 5.295 mm

Winter: 5.295 mm

Depth

18,20 m moulded

Speed

15,0 knots ballast

14,0 knots laden

11,0 knots economic

Built

2008

Keel laid

16/11/2007

Launch date

16/02/2008

Date of completion

07/07/2008

Builder

Guangzhou Shipyard International Co. Ltd.

Guangzhou

China

Yard number

06131032

Hull material

Steel

Hull type

Double hull

Main engine

1x Wärtsilä 7RT-flex50 - 7 cylinder combustion engine 11.340 kW

Propellers

1x Controllable pitch propeller

Boilers

1x Auxiliary boiler, exhaust gas heated GFL160-0.7

1x Auxiliary boiler, oil/gas fired DF20-0.7

Manufacturer: Zhangjiang Greens Shazhou Boiler

Generators

3x Wärtsilä 6L20 main diesel generatorsets each 875 kW

Manufacturer: Wärtsilä Finland Oy

Emergency generator

1 Sisu Diesel 634 DSBAG diesel generatorset

Bow thruster

1x 1.200 kW

Number of cargo tanks

12

Cargo tank capacity 98%

Seg#1: 7.295 m³ (1 p+s)

Seg#2: 8.441 m³ (2 p+s)

Seg#3: 8.594 m³ (3 p+s)

Seg#4: 8.594 m³ (4 p+s)

Seg#5: 8.594 m³ (5 p+s)

Seg#6: 8.440 m³ (6 p+s)

Seg#7: 3.362 m³ (Slops p+s)

Total: 49.958 m³

Number of slop tanks

2

Slop tank capacity 98%

3.362 m³

Pumps

12x Deepwell centrifugal cargo pumps each 550 m³/h

2x Deepwell centrifugal cargo pumps each 300 m³/h

1x Deepwell centrifugal cargo pump 50 m³/h

2x Centrifugal ballast pumps each 1.000 m³/h

Manifolds

Bow to centre manifold: 90,75 m

Stern to centre manifold: 93,02 m

Distance bridge front to centre of manifold: 56,80 m

Distance between cargo manifold centres: 2.000 mm

Distance ships rail to manifold: 4.500 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 1.000 mm

Distance main deck to centre of manifold: 2.100 mm

Spill tank grating to centre of manifold: 900 mm

Tank capacities

Fuel oil: 1.632,44 m³

Gas oil: 553,77 m³

Ballast: 22.148,7 m³

Anchor equipment

Length: 732,20 m

Diameter: 76 mm

Lifting equipment

1x Crane - SWL 10,0 t

Crew size

35

Manager

V.Ships (UK) Ltd.

Glasgow

United Kingdom

Technical operator

V.Ships (UK) Ltd.

5th Floor. Skypark

8 Elliot Place, Glasgow, G3 8EP

United Kingdom

Commercial operator

Hafnia Management A/S

Tuborg Boulevard 5

DK-2900 Hellerup

Denmark

Owner

Gotland Tankers AB

Brahegatan 29

SE-114 37 Stockholm

Sweden

Registered owner

Rederi AB Gotland

Disponent owner

Clearlake Shipping Singpore Pte Ltd.

12 Marina Bay Boulevard, #35-02

Marina Bay Financial Tower 3

Singapore 018982

Republic of Singapore

Latest data adjustment

01 May 2020
