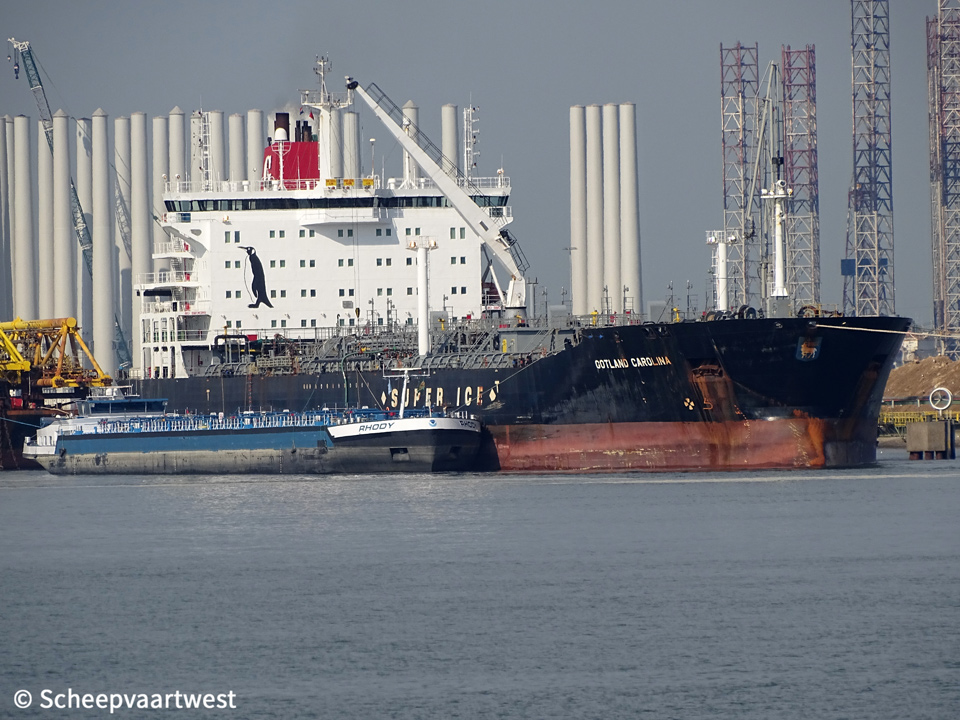

Gotland Carolina 01

Vlissingen 26 June 2020



Name

GOTLAND CAROLINA

Type

Tanker for oil and chemicals

IMO-number

9328132

Call sign

C9YV6

Flag

Bahamas

Port of registry

Nassau

Previous flags

2006 - 2010 Denmark, Kobenhavn - Call sign: OXFI2

GT

29.283 t

DWT

Summer: 53.160 t

NT

15.939 t

Light ship

11.190 t

Length

183,20 m overall

174,40 m between perpendiculars

Breadth

32,29 m extreme

Draught

13,51 m

Keel to mast top

47,60 m

Depth

18,21 m moulded

Speed

15,3 knots laden

15,9 knots ballast

Built

2006

Keel laid

24/03/2006

Launch date

10/07/2006

Date of completion

14/12/2006

Builder

Guangzhou Shipyard International Company Limited

Guangzhou

China

Yard number

04130003

Hull material

Steel

Main engine

1x Wärtsilä-Dalian Marine 7RT-flex50 - 2 stroke 7 cylinder combustion engine 11.340 kW at 124,0 rpm

Manufacturer: Wärtsilä Switzerland Ltd.

Propellers

1x Controllable pitch propeller

Boilers

1x Auxiliary boiler, exhaust gas heated (Exhaust gas boiler)

1x Auxiliary boiler, exhaust gas heated

Generators

4x Wärtsilä 6L20 - 4 stroke 6 cylinder 200 x 280 mm diesel engines each 1.120 kW connected with generators each 875 kW

Manufacturer: Wärtsilä Finland Oy

Emergency generator

1x AGCO Sisu diesel generatorset

Bow thruster

1x Wärtsilä 1.200 kW

Number of cargo tanks

12

Cargo tank capacity 100%

100%: 51.399 m³ exclude slop

98%: 50.371 m³ exclude slop

Slop tank capacity 100%

100% 3.425 m³

98%: 3.357 m³

Pumps

12x Marflex cargo pumps 550 m³/h

2x Marflex slop pumps: 300 m³/h

Loading capacity

4.900 m³/h

Discharge capacity

3.600 m³/h

Tank capacities

Ballast: 22.148,66 m³

HFO: 2.072 m³

Diesel oil: 130 m³

Fresh water: 772 m³

Anchor equipment

Length: 332,20 m

Diameter: 76 mm

Lifting equipment

1x Deck crane - SWL 10,0 t outreach 6,00 m

Manager

Wisby Shipmanagement AB

Fabriksgatan 4

531 30 Lidköping

Sweden

Operator

Rederi AB Gotland

Hamngatan 1

Visby

Sweden

Registered owner

Gotland Class Shipping Kommanditbolag

Latest data adjustment

18 September 2020
