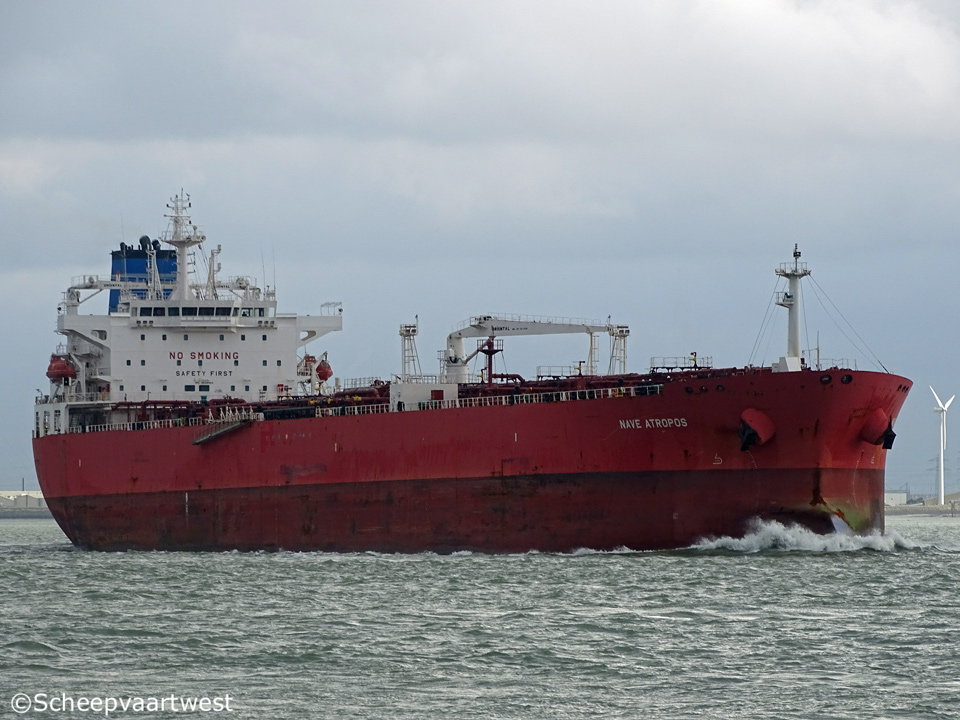

Nave Atropos 01

Westerschelde 27 December 2018

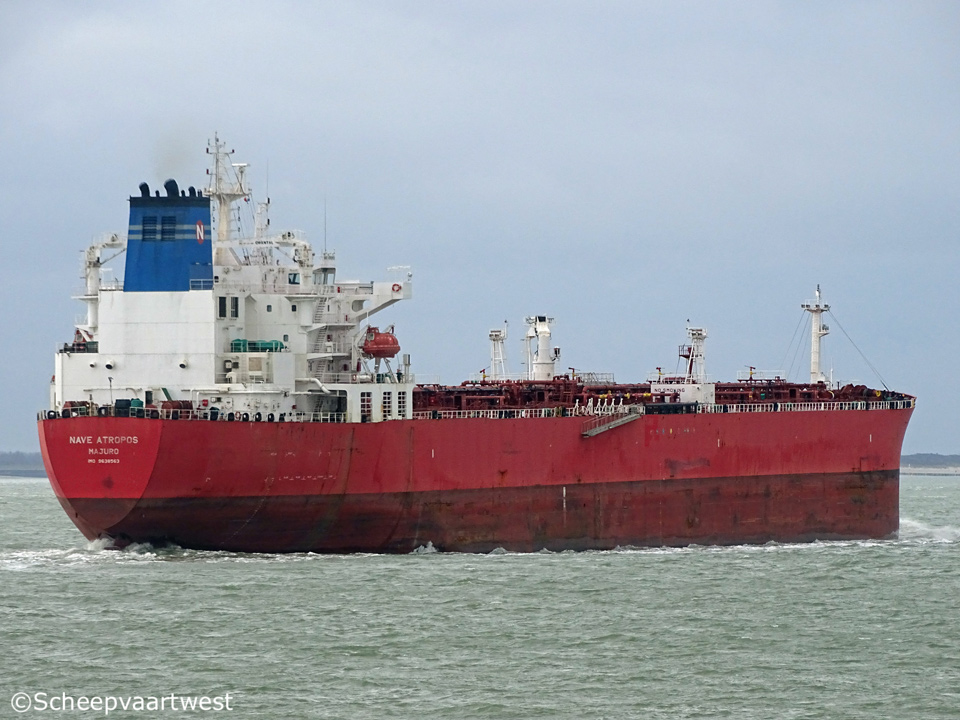

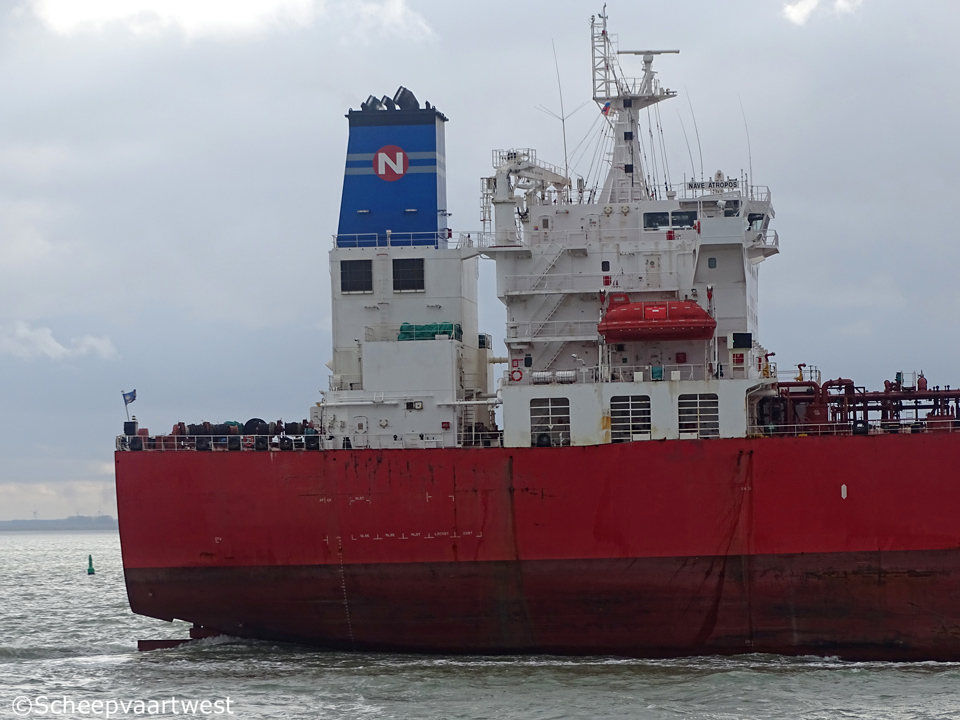

Nave Atropos 03   Nave Atropos 02
27/12/17   27/12/17



Name

NAVE ATROPOS

Type

Crude oil/Product carrier

IMO-number

9638563

Call sign

V7AS4

Flag

Marshall Islands

Port of registry

Majuro

GT

42.341 t registered

Suez: 44.438,97 t

DWT

Summer: 74.694,8 t

NT

22.064 t registered

Panama: 34.974 t

Suez: 39.851,97 t

Length

228,00 m overall

219,00 m between perpendiculars

Breadth

32,24 m moulded

Freeboard

6.464 mm

Depth

20,90 m moulded

Speed

Max: 16,9 knots

Built

2013

Keel laid

30/12/2011

Launch date

03/02/2013

Deliver date

24/04/2013

Builder

Sungdong Shipbuilding & Marine Engineering Co., Ltd.

Yard number

S3062

Hull material

Ordinary strength steel

High strength steel

Hull type

Double hull

Watertight bulkheads

11

Main engine

1x 6S60MC-C8.1 - 6 cylinder 600 x 2.400 mm combustion engine 12.240 kW at 105,0 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x Fixed pitch propeller

Manufacturer: HHI Engine & Machinery Div.

Boilers

1x Unfired exhaust gas boiler - 9,0 bar

1x Fired boiler - 9,0 bar

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

3x Main diesel generatorsets each 900 kW

Manufacturer: HHI Electro Electric System

Number cargo tanks

15

Cargo tank capacity

100%: 86.628 m³

98%: 84.731,5 m³ incl. slop tanks

Number of tanks

Ballast: 16

Fuel oil: 11

Lubricating oil: 8

Diesel oil: 4

Fresh water: 2

Waste water: 2

Chain: 2

Sludge: 2

Hydraulic oil: 1

Tank capacities

Diesel oil: 260,6 m³ / 227,11 t

Freshwater: 332,4 m³

Fuel oil: 2.391,7 m³ / 2.330,64 t

Hydraulic oil: 26,2 m³

Lube oil: 147,6 m³ / 132,84 t

Tank ballast: 29.364,4 m³ / 30.098,51 t

Lifting equipment

1x Engine room crane - SWL 4,0 t

1x Hose handling crane - SWL 15,0 t

2x Provision crane (port & Starboard) - SWL 4,0 t each

Manufacturer: Oriental Prec & Engineering Co.

Manager

Navios Tankers Management
Athens
Greece

Owner

Thera Shipping Corporation
Trust Company Complex
Ajeltake Road Ajeltake Island
Majuro, MH96960
Marshall Islands

Registered owner

Thera Shipping Corporation

Latest data adjustment

14 March 2018
