| Westerschelde 31 August 2018 |
|
Name |

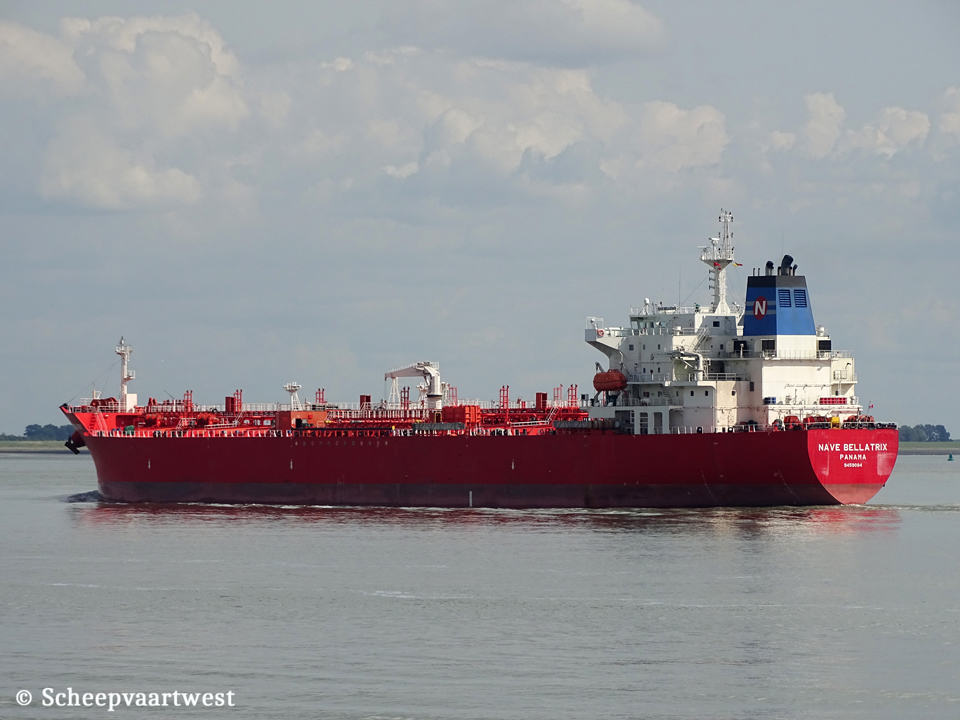

NAVE BELLATRIX |
|
Type |
Chemical/Oil products tanker |
|
IMO-number |
9459084 |
|
Call sign |
3FEC7 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
30.052 t |
|
DWT |
49.999 t |
|
NRT |
13.255 t |
|
Length |
183,10 m overall |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 13,08 m |
|
Moulded L x B x D |
174,00 x 32,20 x 19,10 m |
|
Registered L x B x D |
174,54 x 32,20 x 19,10 m |
|
Keel to mast end |
47,90 m |
|
Freeboard |
Summer: 6.053 mm |
|
Depth |
19,10 m moulded |
|
Speed |
15,8 knots |
|
Built |
2013 |
|
Keel laid |
26/12/2011 |
|
Launch date |
11/11/2012 |
|
Date of completion |
24/01/2013 |
|
Builder |
Dae Sun Shipbuilding & Engineering Co., Ltd. South Korea |
|
Yard number |
SB497 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6S50MC-C8 - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 9.960 kW at 127,0 rpm Manufacturer: STX Engine Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 480 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,90 MPa Evaporation: 21,30 t/h Manufacturer: Aalborg Industries A.S. |
|
Generators |
4x Generatorsets total 3.563 kVA |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 98% |
Liquid: 53.593 m³ |
|
Number of pumps |
12x cargo pumps each 600 m³/h |
|
Tank capacities |
Fuel oil: 2.322 m³ Fresh water: 272 m³ |
|
Crew size |
25 |
|
ISM & commercial manager |
Navios Tankers Management Inc. 85, Akti Miaouli 185 38 Piraeus Greece |
|
Previous owners |
Sea 68 Leasing Co., Ltd. - Hong Kong Care of Navios Tankers Management Inc. 85, Akti Miaouli 185 38 Piraeus Greece |
|
Latest data adjustment |
05 June 2022 |
