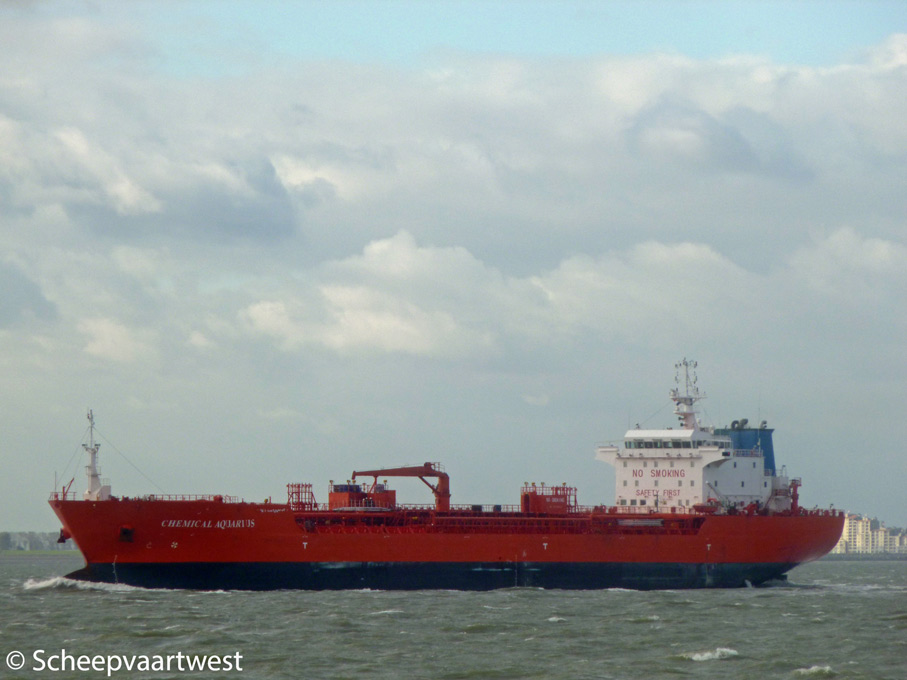

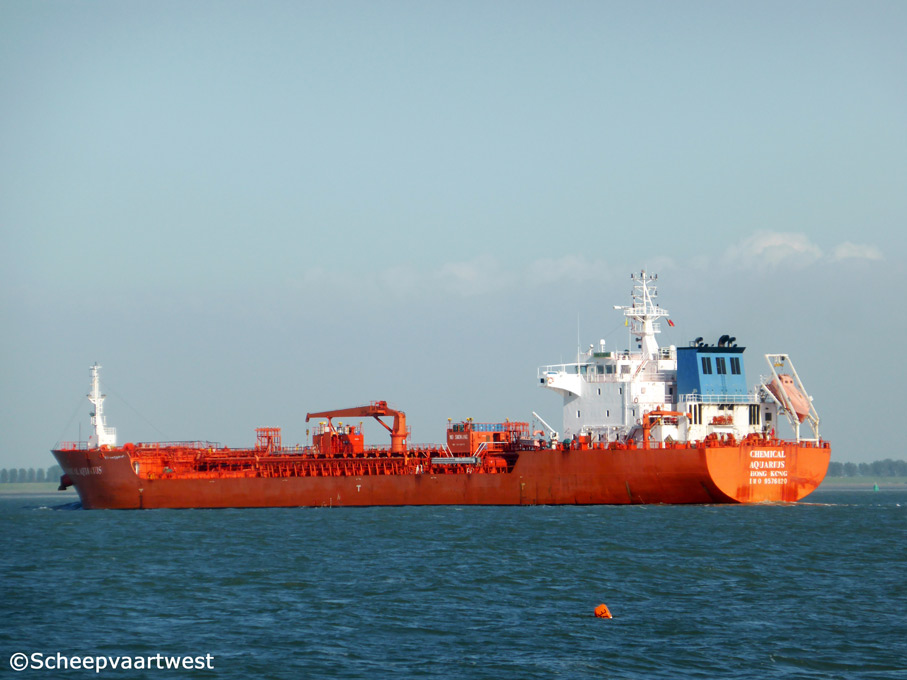

Chemical Aquarius - IMO 9576820

Name

CHEMICAL AQUARIUS

Type

Chemical & product tanker

IMO-number

9576820

Call sign

VRKY9

Flag

Hong Kong - Special Administrative Region of the People's Republic of China

Port of registry

Hong Kong

GT

11.383 t registered

Suez: 12.286,91 t

DWT

Summer: 17.519,63 t

NT

5.590 t registered

Suez: 10.551,24 t

Panama:9.581 t

Length

142,50 m overall

132,60 m between perpendiculars

Breadth

23,00 m moulded

Draught

6,60 m

Freeboard

3.415 mm

Depth

12,60 m moulded

Built

2012

Keel laid

16.02.2009

Launch date

08.05.2012

Date of completion

30.06.2012

Builder

Zhejiang Hangchang Shipbuilding Industry Co., Ltd.
Linhai
China

Yard number

HCB-102

Hull material

Ordinary strength steel

Hull type

Double hull

Movable bulkhead

Water tight: 32

Oil tight: 1

Main engine

1x 7S35MC-Mk7 - 7 cylinder 350 x 1.400 mm diesel engine - 5.180 kW at 173,0 rpm

Manufacturer: STX Engine Co., Ltd.

Propellers

1

Manufacturer: Changzhou Zhonghai Marine Propeller Co Ltd.

Boilers

2x Auxiliary oil fired boiler Mission OS-Tci - 9,0 bar each

1x Fired exhaust gas boiler MISSION OC - 9,0 bar

Manufacturer: Aalborg Industries Ltd.

Generators

3x Diesel generatorsets each 520 kW

Manufacturer: Wuxi Fenxi Electrical Machine Co., Ltd.

Number of cargo tanks

14

Total tank capacity 100%

20.275,68 m³ / 19.870,17 t

Number of tanks

Ballast: 14

Fuel oil: 10

Lubricating oil: 4

Sludge: 3

Diesel oil: 3

Fresh water: 3

Potable water: 2

Waste water: 2

Hydraulic oil: 2

Tank capacities 100%

Diesel oil: 108,95 m³ / 98,05 t

Fresh water: 289,16 m³

Fuel oil: 1.167,93 m³ / 1.242,57 t

Hydraulic oil: 9,88 m³

Lube oil: 69,86 m³ / 62,87 t

Tank ballast: 7.427,59 m³ / 7.613,30 t

Lifting equipment

1x Engine room crane type CQC2-9-4DS - SWL 2,0 t
Manufacturer: Jiangyin Cheng Jiang Ships Equipment Fitting Facto

1x Cargo hose handling crane type AR208-1013-HCB-102 - SWL 10,0 t

Manufacturer: Rim Machinery & Engineering Co.

1x Provision crane type AR208-1014-HCB-102 - SWL 1,2 t

Manufacturer: Rim Machinery & Engineering Co.

Manager

Navig8 Group Shipmanagement Pte, Ltd.
Republic of Singapore

Operator

Huarong Huiyin Limited
59/F Bank of China Tower, 1st Garden Road
Hong Kong
China

Owner

Huarong Huiyin
Hong Kong
China

Registered owner

Huarong Huiyin Limited

Last update

23 November 2013
