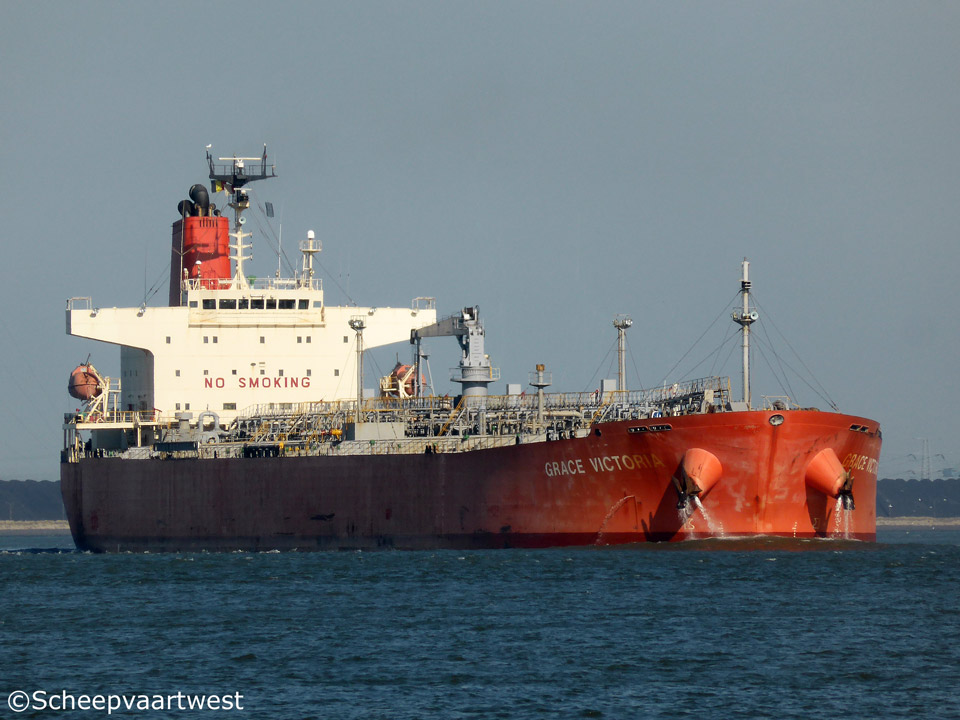

Grace Victoria 01

Westerschelde 20 April 2016



Name

GRACE VICTORIA

Type

Oil product tanker

IMO-number

9321201

Call sign

9V3667

Flag

Republic of Singapore

Port of registry

Singapore City

Previous flags

Republic of Panama, Panama city - Call sign: 3ENG2

GT

40.953 t registered

DWT

Summer: 74.998 t

NT

22.285 t registered

Length

228,00 m overall

Breadth

32,26 m moulded

Draught

Summer: 14,48 m

Moulded L x B x D

219,00 x 32,26 x 20,80 m

Registered L x B x D

220,31 x 32,26 x 20,80 m

Freeboard

Summer: 6.351 mm

Depth

20,80 m moulded

Speed

16,2 knots

Built

2007

Keel laid

17.12.2004

Launch date

16.05.2007

Date of completion

25.10.2007

Builder

Minaminippon Shipbuilding Co., Ltd.
Japan

Yard number

696

Hull material

Steel

Hull type

Double hull

Main engine

1x 2 stroke single acting 6 cylinder 600 x 2.292 mm diesel engine 12.240 kW at 105,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 560 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 17,6 bar

Evaporation: 37,01 t/h

Manufacturer: Aalborg Industries (Qingdao) Ltd.

Generators

4x Generators - 2.370 kVA

Cargo tank capacity

Liquid: 86.465 m³

Tank capacities

Fuel oil: 2.613 m³

Fresh water: 432 m³

Manager

Synergy Maritime Private Limited
Synergy Marine Pte. Ltd.
1 Kim Seng Promenade,
#10-11/12 Great World City West Tower
Singapore 237994.

Registered owner

Phoenix Tankers Pte Ltd.

Latest data adjustment

17 December 2016
