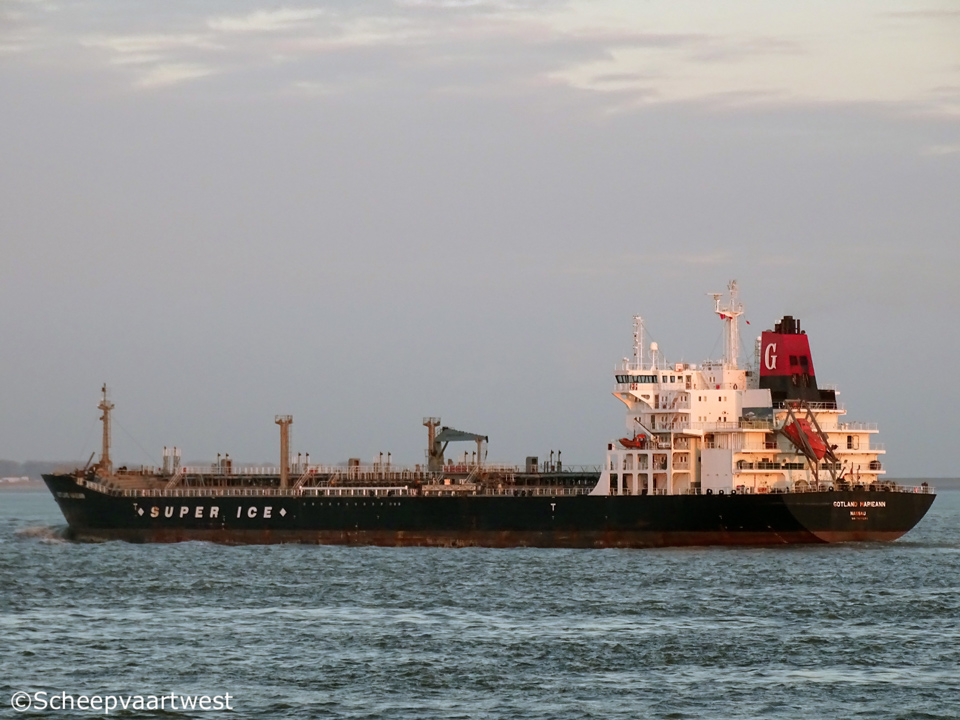

Gotland Marieann 08

Westerschelde 22 March 2016

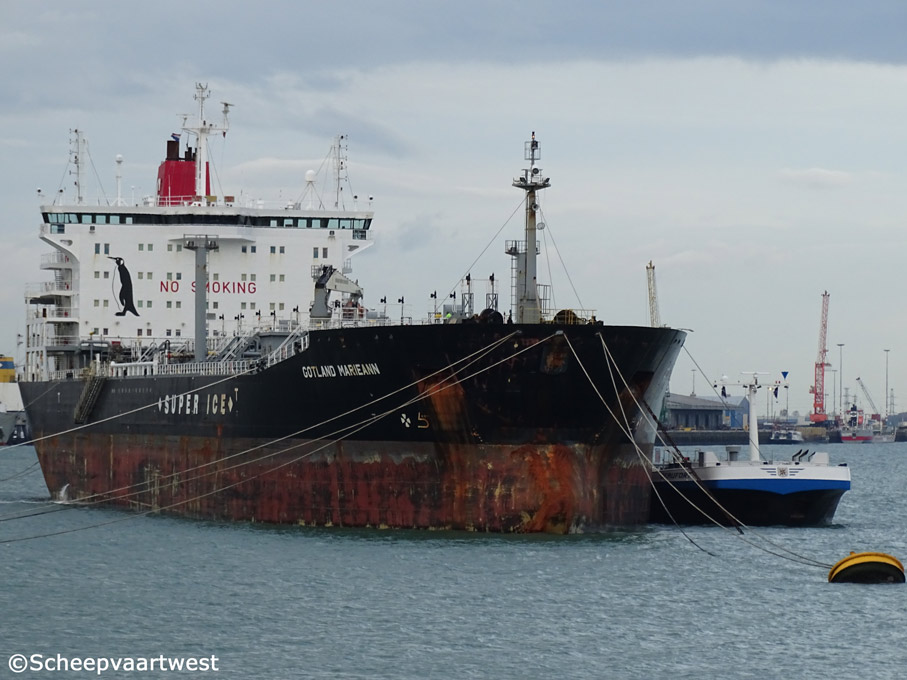

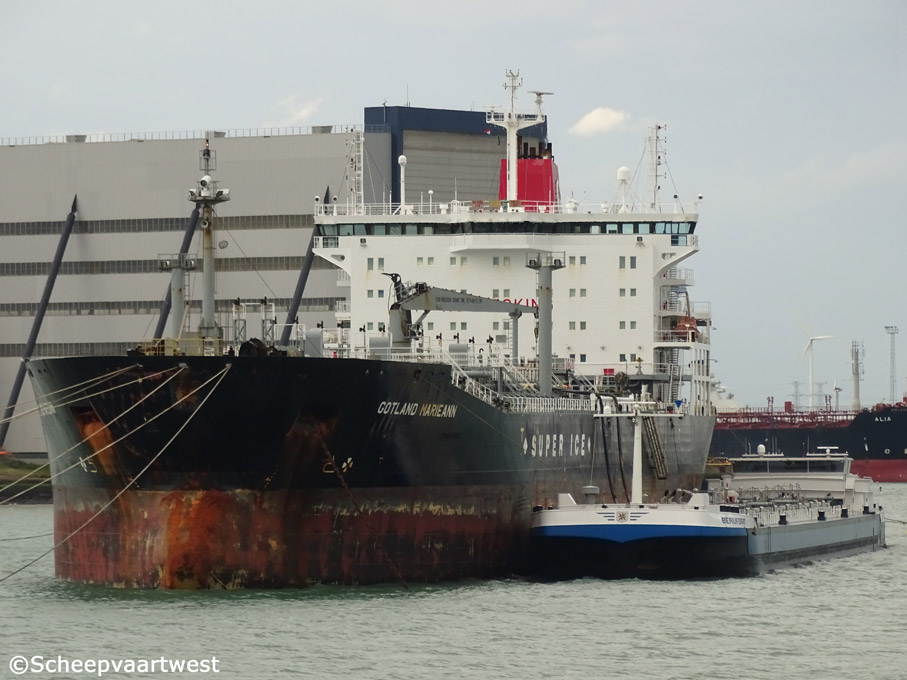

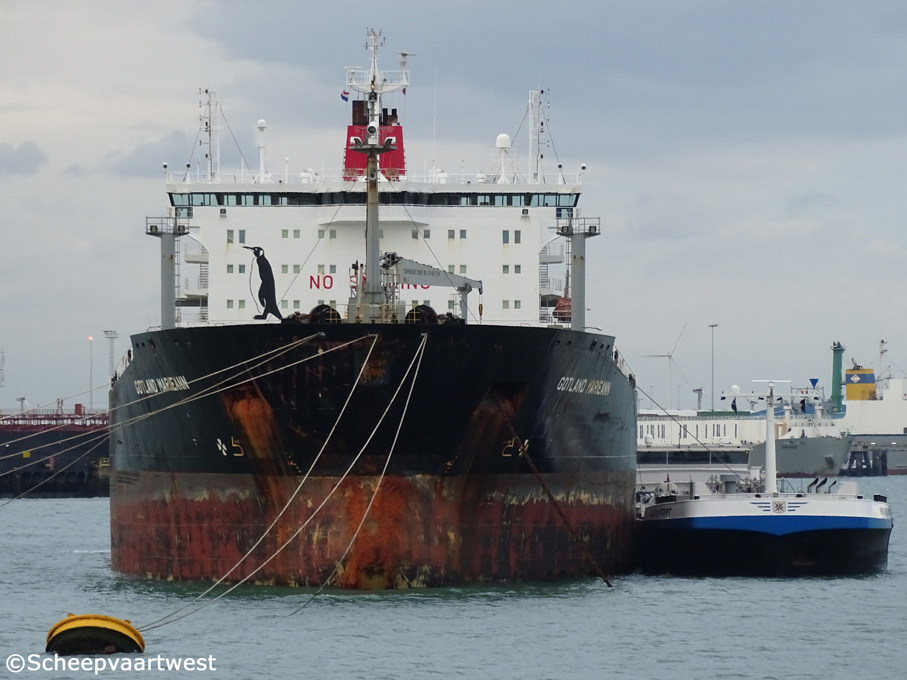

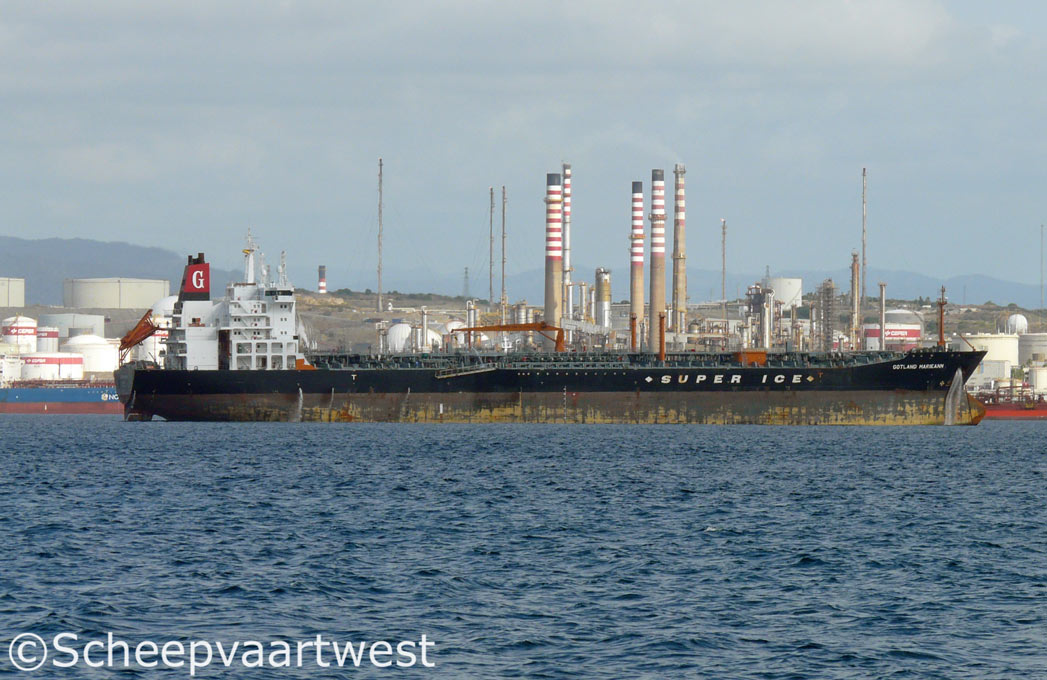

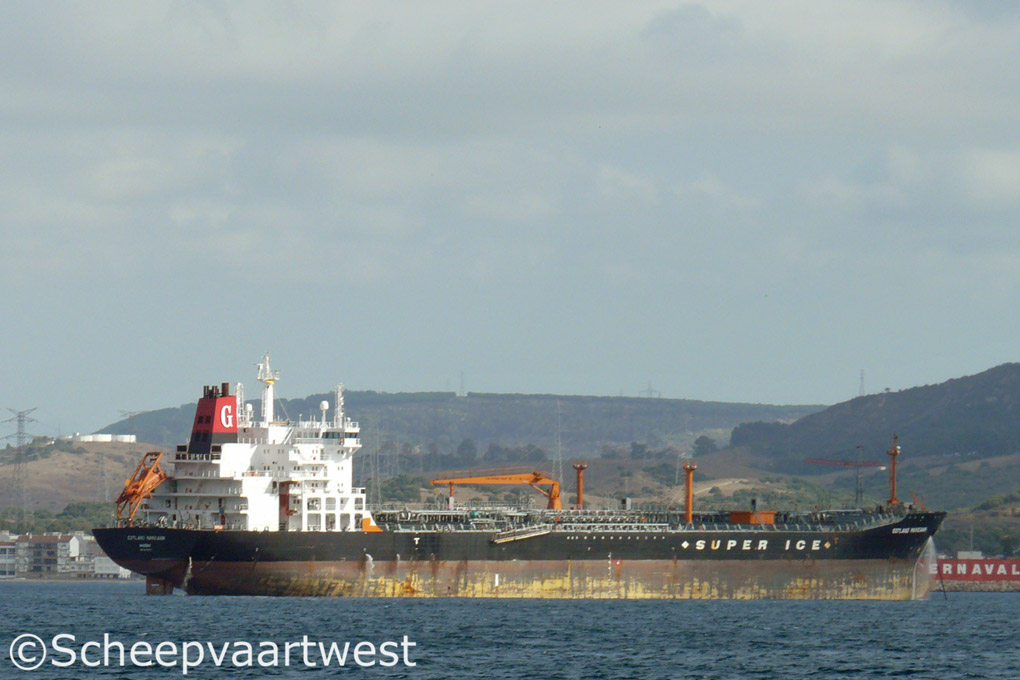

Gotland Marieann 07   Gotland Marieann 05   Gotland Marieann 03   Gotland Marieann 06   Gotland Marieann 01   Gotland Marieann 02
Westerschelde 22/03/16 Vlissingen 07/11/15 Vlissingen 07/11/15 Vlissingen 07/11/15   Gibraltar 24/09/11   Gibraltar 24/09/11

Gotland Marieann IMO 9375575 09
Westerschelde  13/08/20


Name

GOTLAND MARIEANN

Type

Tanker for oil and chemicals

IMO-number

9375575

Call sign

C6YL8

Flag

Bahamas

Port of registry

Nassau

Previous flags

2008 - 2010 Denmark - Call sign: OUMI2

GT

29.283 t

DWT

53.143 t

NT

15.937 t

Light ship

11.190 t

Length

183,20 m overall

174,44 m between perpendiculars

Breadth

32,23 m extreme

Draught

12,00 m

Keel to mast top

47,60 m

Freeboard

13.395 mm

Depth

18,20 m moulded

Speed

Ballast: 15,9 knots

Laden: 15,3 knots

Built

2008

Keel laid

02/01/2008

Launch date

09/04/2008

Date of completion

04/08/2008

Builder

Guangzhou Shipyard International Co. Ltd.

No. 40 Fang Cun Road South

510382 Guangzhou

China

Yard number

05130014

Hull material

Steel

Hull type

Double hull

Main engine

1x Wärtsilä 7RT-flex50 - 7 cylinder 500 x 2.050 mm combustion enge 11.340 kW / 15.418 hp at 124,0 rpm

Manufacturer: Wärtsilä Switzerland Ltd.

Propeller

1x Controllable pitch propeller

Boilers

1x Auxiliary boiler, vertical shell type DF20

1x Auxiliary boiler, exhaust gas water tube GFL160-0.7

Manufacturer: Zhangjiagang Greens Shazhou Boiler Co., Ltd.

Diesel generators

4x Wärtsilä 6L20 diesel generatorsets each 875 kW

Manufacturer: Wärtsilä Finland Oy

Bow thruster

1x Wärtsilä 1.200 kW

Number of cargo tanks

12 + 2 slop tanks

Cargo tank capacity

51.399 m³ (100% excl slop)

50.371 m³ (98% excl slop)

Number of slop tanks

2

Slop tank capacity

3.425 m³ (100%)

3.357 m³ (98%)

Cargo heating

Deepwell 900 m³/h

Pumps

12x Cargo pumps Marflex 550 m³/h

2x Slop pumps Marflex 300 m³/h

Loading capacity

4.900 m³/h

Discharge capacity

3.300 m³/h

Segregations

7x Double valve

Manifolds

7

Tank capacities

Ballast Capacity: 22.148 m³

Fuel oil: 2.072 m³

Diesel oil: 130 m³

Fresh water: 772 m³

Anchor chain

Length: 660,00 m

Diameter 76 mm

Deck crane

1x Crane - SWL 10,0 t outreach 4,00 m

Crew size

29

Commerical manager

Clearlake Shipping Pte Ltd.

35-03, Marina Bay Financial Centre Tower 3, 12, Marina Boulevard,

Singapore 018982

Republic if singapore

ISM manager

Wisby Shipmanagement AB

Fabriksgatan 4

SE-531 30 Lidköping

Sweden

Previous manager

MR. Peter Rubinstein, Wisby Shipmanagement AB, 531 30 Lidköping - Sweden

Operator

Super Ice

Registered owner

Rederi AB Gotland

Care of Clearlake Shipping Pte Ltd.

35-03, Marina Bay Financial Centre Tower 3, 12, Marina Boulevard

Singapore 018982

Republic of Singapore

Previous owners

2008 - 2013 Rederi AB Lickershamn

2013 - 2015 Gotland Class Shipping Kommanditbolag

2015 Rederi AB Lickershamn, Visby - Sweden

Latest data adjustment

23 January 2022
