| Antwerpen 24 July 2014 |
 |
| Antwerpen 24/07/14 |
|
Name |

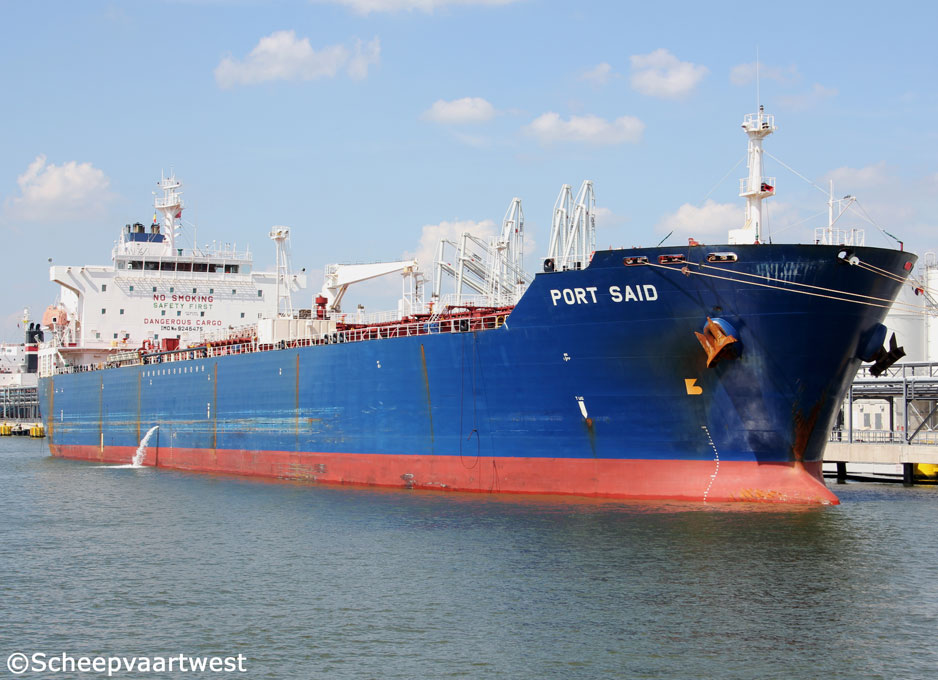

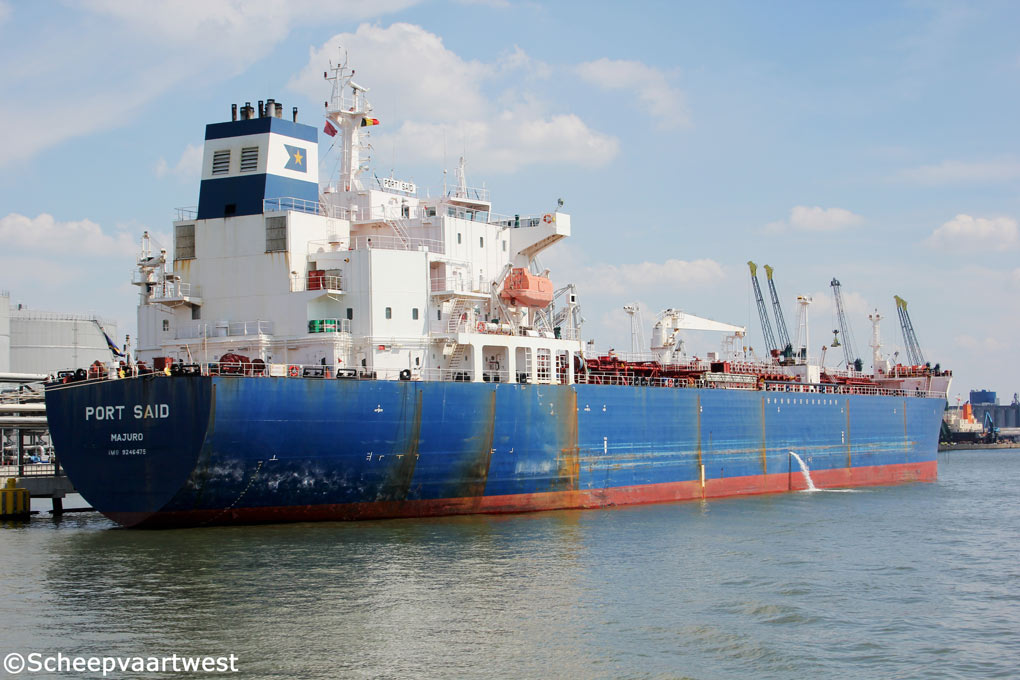

PORT SAID |
|
Previous names |
03.2003 - 08.2004 Euro Song |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9246475 |
|
Call sign |
V7EJ7 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
29.998 t registered Suez: 31.570 t |
|
DWT |
Summer: 46.211,3 t |
|
NT |
11.702 t registered Suez: 27.530 t Panama: 25.898 t |
|
Length |
183,00 m overall 173,90 m between perpendiculars |
|
Breadth |
32,20 m moulded |
|
Draught |
12,17 m |
|
Freeboard |
6.853 mm |
|
Depth |
19,10 m moulded |
|
Built |
2003 |
|
Keel laid |
27.06.2002 |
|
Launch date |
03.01.2003 |
|
Date of completion |
10.03.2003 |
|
Builder |
Stx Offshore & Shipbuilding Jinhae Shipyard |
|
Yard number |
S-1094 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Non tight: 2 Water tight: 8 Oil tight: 11 |
|
Main engine |
1x 6S50MC MK6 - 6 cylinder 500 x 1.910 mm diesel engine - 8.580 kW at 127,0 rpm Manufacturer: Hyundai Heavy Industries |
|
Propellers |
1 Manufacturer: HHI Engine & Machinery Division |
|
Boilers |
1x Auxiliary Composite Boiler Mission OC - 9,0 bar 1x Vertical auxiliary boiler Mission OL 18T/H - 9,0 bar Manufacturer: Aalborg Industries Ltd. |
|
Generators |
3x Main diesel generatorsets each 740 kW |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity |
53.226,6 m³ / 52.162,06 t |
|
Number of tanks |
Ballast: 10 Fuel oil: 8 Lubricating oil: 8 Diesel oil: 5 Sludge: 3 Slop: 2 Fresh water: 2 Chain: 2 Hydraulic oil: 2 Sea water: 1 Waste water: 1 |
|
Tank capacities |
Diesel Oil: 216,10 m³ / 194,49 t Freshwater: 410,60 m³ Fuel Oil: 1.592,90 m³ / 1.561,04 t Lube Oil: 149,30 m³ / 134,37 t Tank Ballast: 24.390 m³ / 24.999.75 t |
|
Lifting equipment |
1x Engine-room overhead lifting gear 1x Hose handling crane 1x Provision crane Manufacture: Dong Nam Enterprise Co. Ltd. |
|
Manager |
Stella Navigation GmbH & CO.KG |
|
Operator |
Asterion Tanker Navigation GmbH & Co. KG |
|
Registered owner |
Novellas MT ST Clemens GmbH & CO. KG |
|
Latest data adjustment |
20 March 2015 |
