Westerschelde 18 October 2014 |
|
Name |

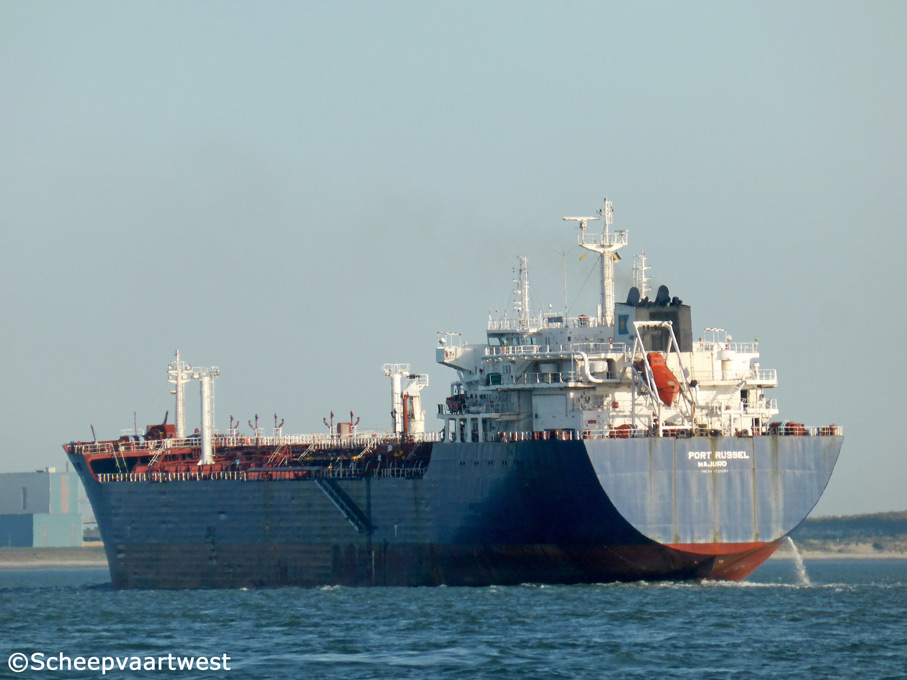

PORT RUSSEL |
|
Previous names |
12.09.2002 - 26.05.2004 Merion Joy - Republic of Malta, Valletta |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9223265 |
|
Call sign |
V7FY2 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
24.910 t registered Suez: 25.916,28 t |
|
DWT |
Summer: 37.808 t |
|
NT |
10.657 t registered Suez: 21.927,27 t Panama: 20.729 t |
|
Length |
170,36 m overall 160,00 m between perpendiculars |
|
Breadth |
29,00 m moulded |
|
Draught |
12,31 m |
|
Freeboard |
6.111 mm |
|
Depth |
18,40 m moulded |
|
Built |
2002 |
|
Keel laid |
07.11.2001 |
|
Launch date |
02.04.2002 |
|
Date of completion |
13.09.2002 |
|
Builder |
Guangzhou Shipyard Company Limited Foshan Casting & Forging Factory |
|
Yard number |
H9130009 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Non tight: 1 Water tight: 5 Oil tight: 6 |
|
Main engine |
1x Hudong/MAN B&W 6S46MC-C - 6 cylinder 460 x 1.920 mm diesel engine - 7.860 kW / 10.690 hp at 129,0 rpm Manufacturer: Hudong Heavy Machinery Shangchuan Deisel Co., Ltd. |
|
Propellers |
1 Manufacturer: Zhenjiang Marine Propeller Plant |
|
Boilers |
1x Exhaust gas boiler - 7,0 bar 1x Fired boiler - 7,0 bar Manufacturer: Aalborg Industries Ltd. (Qingdao) |
|
Generators |
3x Main diesel generatorsets each 910 kW Manufacturer: Jiangsu Hainug Elect. Machine Group |
|
Number of cargo oil tanks |
12 |
|
Cargo tank capacity |
44.688 m³ |
|
Number of tanks |
Ballast: 17 Lubricating oil: 10 Fuel oil: 10 Fresh water: 4 Waste water: 3 Diesel oil: 3 Chain: 1 |
|
Tank capacities |
Diesel Oil: 153,36 m³ Freshwater: 554,82 m³ Fuel Oil: 1.480,82 m³ / 1.495,62 t Lube Oil: 144,22 m³ / 129,80 t Tank Ballast: 17.120,39 m³ / 17.548,40 t |
|
Lifting equipment |
1x Engine room crane - SWL 3,0 t Manufacture: Danish Crane Building A/S 1x Hose handling crane - SWL 10,0 t Manufacture: Joy Maritime Ltd. 1x Stores crane - SWL 4,0 t Manufacture: South China Marine Plant |
|
Manager |
Stella NavigationGMBH & Co. KG |
|
Operator |
Asterion Tanker Navigation GmbH & Co. KG |
|
Registered owner |
Novellas MT ST Severeni GMBH & Co. KG |
|
Latest data adjustment |
09 November 2014 |
