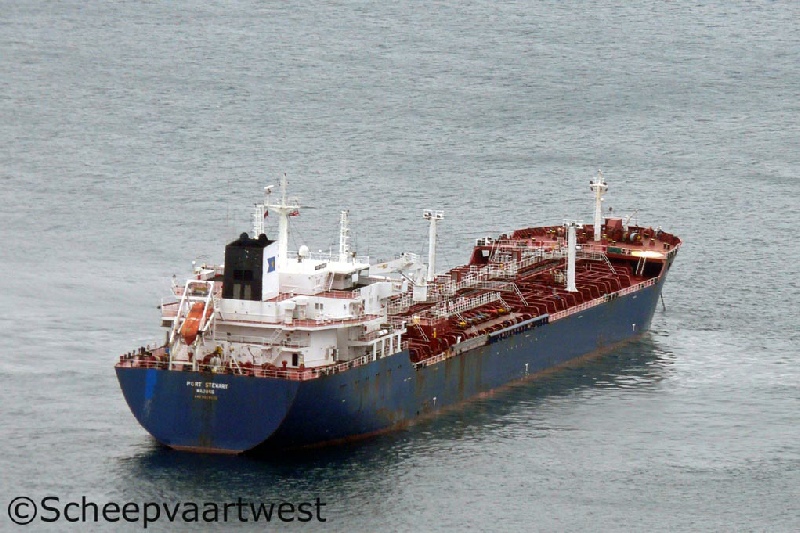

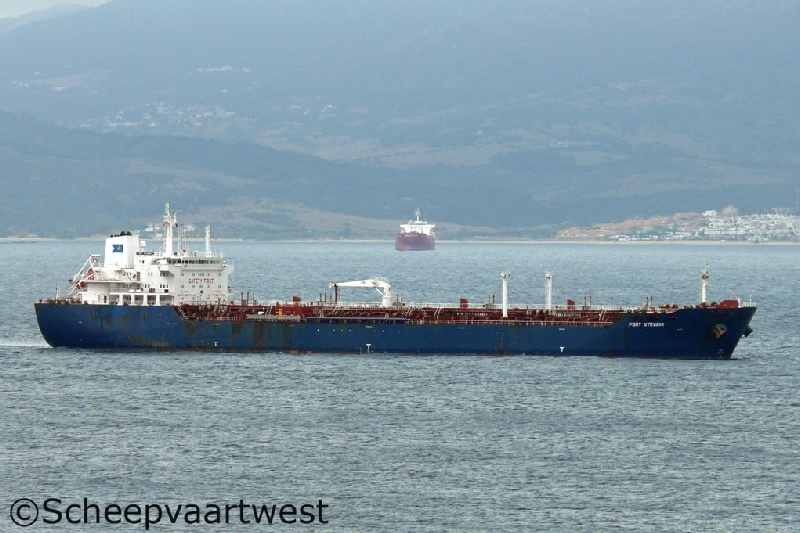

| Gibraltar 21 September 2011 |
 |
| Gibraltar 21/09/11 |
|
Name |
PORT STEWART |
|
Previous names |
12.06.2003 - 29.06.2004 Meriom Jade |
|
Type |
Chemical and product tankers |
|
IMO-number |
9251456 |
|
Call sign |
V7GE9 |
|
Flag |
Republic of Marshall Islands |
|
Previous flag |
12.06.2003 - 29.06.2004 Malta |
|
Port of registry |
Majuro |
|
Previous port of registry |
12.06.2003 - 29.06.2004 Valletta |
|
GT |
25.507 t registered Suez: 26.419 t |
|
DWT |
38.875 t |
|
NT |
11.043 t registered Panama: 21.220 t Suez: 22.430 t |
|
Length |
173,96 m overall 163,60 m between perpendiculars |
|
Breadth |
29,00 m moulded |
|
Draught |
11,10 m |
|
Freeboard |
6.111 mm |
|
Depth |
18,40 m moulded |
|
Built |
2002 |
|
Keel laid |
28.06.2002 |
|
Launch date |
19.12.2002 |
|
Delivery date |
12.06.2003 |
|
Builder |
Guangzhou Shipyard Company Limited Foshan Casting & Forging Factory |
|
Yard number |
00130015 |
|
Hull material |
High strength steel & Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Non tight: 1 Water tight: 5 Oil tight: 6 |
|
Main engine |
1x 6S46MC-C - 6 Cylinder 460 x 1.900 mm diesel engine - 7.860 kW at 129,0 rpm Manufacturer name: Hudong Heavy Machinery Co., Ltd. |
|
Propeller |
1 Builder: Zhenjiang Marine Propeller Plant |
|
Steam piping system |
Fired boiler AQ-18 - 7,0 bar Manufacturer name: Aalborg Industries LTD. (Qingdao) |
|
Generators |
3x Diesel generatorsets each 910 kW Manufacturer name: Fenxi Machinery Plant |
|
Number of cargo tanks |
12 |
|
Cargo capacity |
46.859,84 m³ |
|
Number of tanks |
Ballast: 17 Fuel oil: 10 Lubricating oil: 10 Fresh water: 4 Waste water: 3 Diesel oil: 3 Sludge: 1 Chain: 1 Slop: 1 |
|
Tank capacities |
Diesel oil: 153,20 m³ / 130,22 t Fresh water: 522,74 m³ Fuel oil: 1.484,45 m³ / 1.499,29 t Lube oil: 148,63 m³ / 133,76 t Water ballast: 17.654,85 m³ / 18.096,22 t |
|
Lifting equipment |
1x Engine room crane - SWL 3,0 t 1x Main deck hose handling crane - SWL 10,0 t 1x Provision crane - SWL 4,0 t |
|
Manager |
Stella Marine Services KG Germany |
|
Operator |
Asterion Tanker Navigation GMBH & Co. KG |
|
Owner |
Port Stewart GMBH & CO. KG |
|
Registered Owner |
Port Stewart GMBH & CO. KG |
