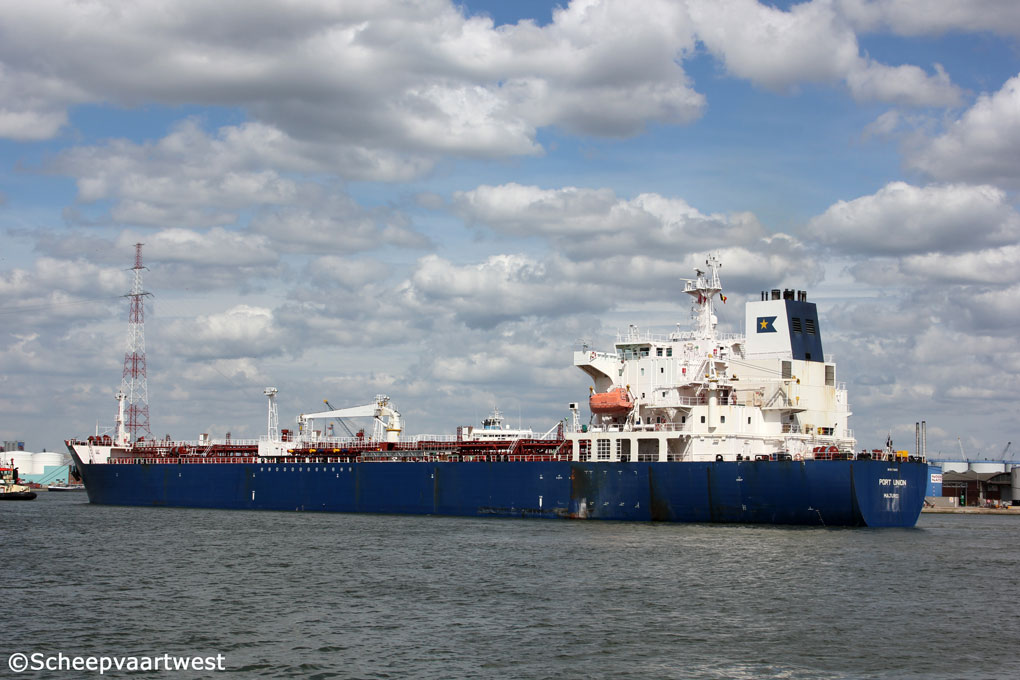

Port Union 02

Antwerpen 27 April 2014

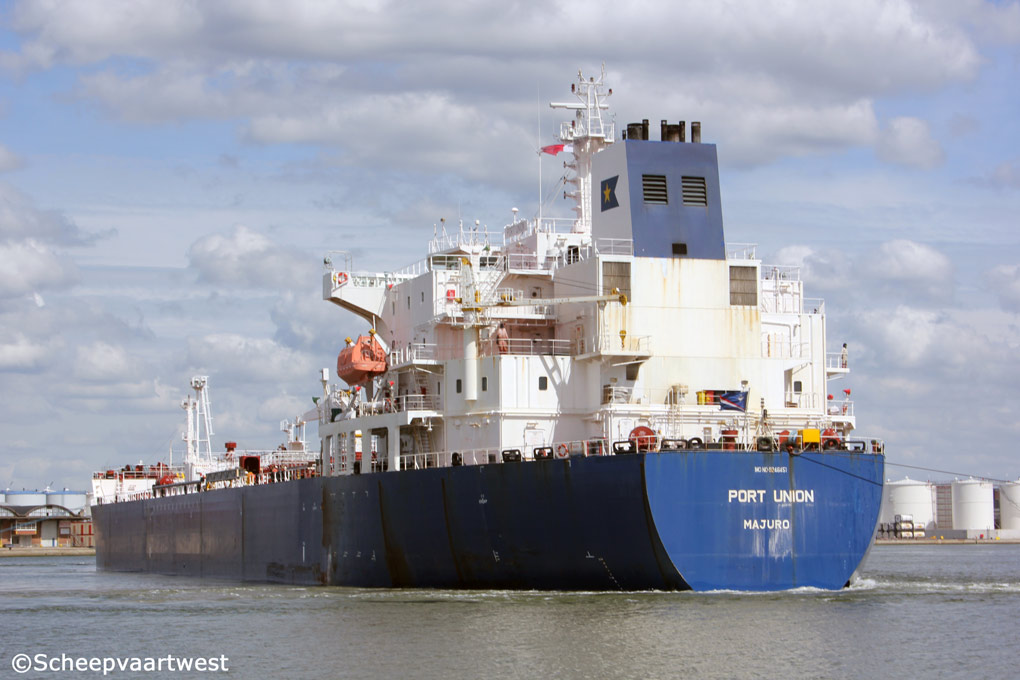

Port Union 01
27/04/14



Name

PORT UNION

Previous names

2003 Launch as: Port Union

22.04.2003 - 02.2004 St. George

Type

Oil / Chemical tanker

IMO-number

9246451

Call sign

V7EE8

Flag

Marshall Islands

Port of registry

Majuro

GT

29.998 t registered

Suez: 31.570 t

DWT

Summer: 46.256 t

NT

11.702 t registered

Panama: 24.88 t

Suez: 27.530 t

Length

183,00 m

Breadth

32,00 m

Draught

12,20 m

Freeboard

6.913 mm

Depth

19,10 m

Speed

14,0 knots

Built

2003

Keel laid

10.06.2002

Launch date

12.10.2002

Date of completion

14.01.2003

Builder

STX Offshore & Shipbuilding

Jinhae
South Korea

Yard number

1092

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Non tight: 7

Water tight: 6

Oil tight: 8

Main engine

1x MAN B&W 6S50MC MK6 - 6 cylinder 500 x 1.910 mm diesel engine - 8.580 kW at 127,0 rpm

Manufacturer: Hyundai Heavy Industries

Propellers

1

Manufacturer: HHI Engine & Machinery Division

Boilers

Auxiliary composite boiler MISSION OC - 9,0 bar

Vertical auxiliary boiler MISSION OL 18T/H - 9,0 bar

Manufacturer: Aalborg Industries Ltd.

Generators

3x HFC6 506-14K main diesel generatorsets each 740 kW

Manufacturer: HHI, Electro Electric System

Number of cargo tanks

14

Cargo tank capacity 100%

54.666 m³ / 53.572,68 t

Number of tanks

Ballast: 14

Fuel oil: 8

Lubricating oil: 8

Diesel oil: 5

Sludge: 3

Hydraulic oil: 2

Fresh water: 2

Chain: 2

Sea water: 1

Waste water: 1

Tank capacities 100%

Diesel Oil: 216,1 m³ / 194,49 t

Freshwater: 410,6 m³

Fuel Oil: 1.592,9 m³ / 1.561.04 t

Lube Oil: 149,3 m³ / 134,37 t

Tank Ballast: 24.390 m³ / 24.999,75 t

Lifting equipment

1x Engine room overhead lifting gear

1x Hose handling crane

1x Provision crane

Manufacture: Dong Nam Enterprise Co. Ltd.

Manager

Stella Marine Services
Am Sandtorkai 71

Hamburg
Germany

Owner

Port Union GmbH & Co KG
C/O Asterion Tanker Navigation GmbH & Co. KG

RIngstrasse 4

D-27628 Bramstedt
Germany

Registered owner

Port Union GmbH & Co. KG

Latest data adjustment

10 June 2014
