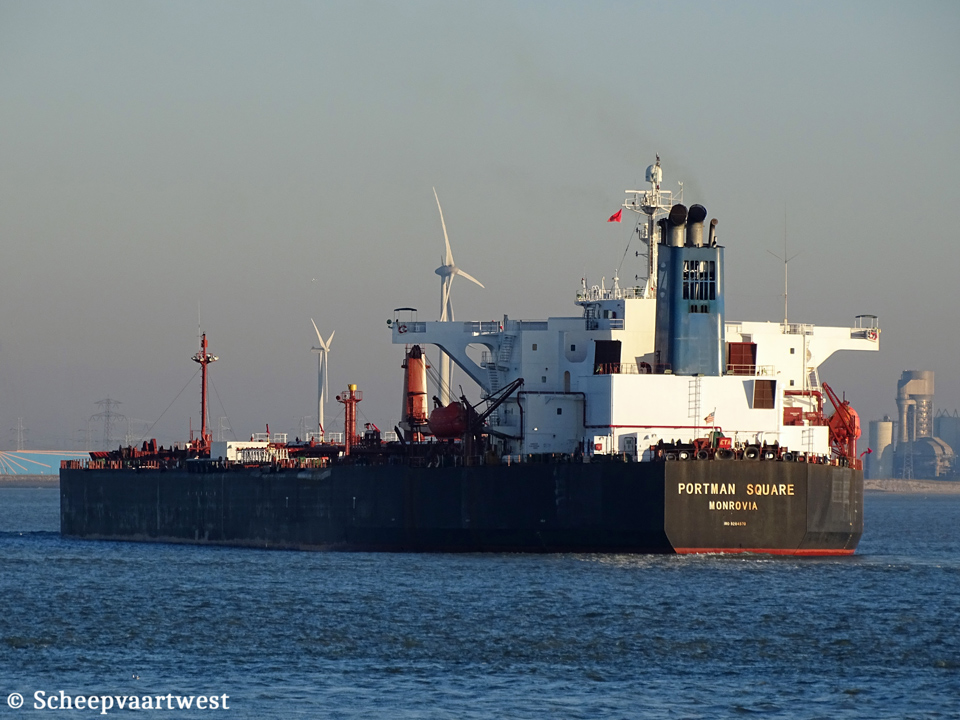

Portman Square IMO 9264570 01

Westerschelde 30 December 2019



Name

PORTMAN SQUARE

Previous names

2002 - 2014 Song Lin Wan

Type

Crude oil tanker - Aframax

IMO-number

9264570

Call sign

D5HK9

Flag

Liberia

Port of registry

Monrovia

Previous flags

2002 - 07/2003 Republic of Panama

07/2003 - 11/2014 Hong Kong - Call sign: VRYD9

GT

56.358 t

Suez: 58.472 t

DWT

Summer: 105.965 t

Winter: 103.163 t

NT

32.355 t

Suez: 54.567 t

Displacement

121.803 t

Length

241,03 m overall

232,00 m between perpendiculars

Breadth

42,00 m

Draught

Summer: 14,92 m

Winter: 14,61 m

Depth

21,20 m moulded

Speed

Max: 15,6 knots

Service: 14,5 knots

Built

2002

Keel laid

13/03/2002

Date of completion

27/11/2002

Builder

Namura Shipbuilding Co., Ltd.

Osaka

Japan

Yard number

238

Hull material

Steel

Hull type

Double hull

Watertight components

9

Continuous decks

1

Main engine

1x Hitachi/MAN-B&W 6S60MC - 2 stroke single acting 6 cylinder 600 x 2.292 mm combustion engine 11.770 kW / 15.992 hp at 101,0 rpm

Build: 2002

Builder: Hitachi Zosen Corporation Ariake Machinery Works, Nagasu Ariake - Japan

Propellers

1x Screw propeller solid - aft at 101,0 rpm

Boilers

1x CHR 220,00 m²

1x CHO 247,00 m²

Generators

3x Yanmar main diesel generatorsets each 725 kVA - 580 kW - 897 hp

Emergency generator

1x Diesel generatorset 135 kVA - 108 kW - 186 hp

Number of pumps

3x Cargo pumps each 2.500 m³/h

Tank capacities

Fuel: 2.869,8 m³

Crew size

32

Manager

Zodiac Maritme Ltd.

5th Floor, Portman House

2 Portman Street

London, W1H 6DU

United kingdom

Registered owner

Bizand Maritime Inc.

Renamed

2020 Themis

Republic of Panama, Panama City - call sign: 3EFU8

Owner: Themis Ltd., Marshall Islands - Care of Moonlight Shipping Pte Ltd. - Republic of Singapore

Manager: Moonlight Shipping Pte Ltd., Republic of Singapore

Latest data adjustment

19 March 2021
