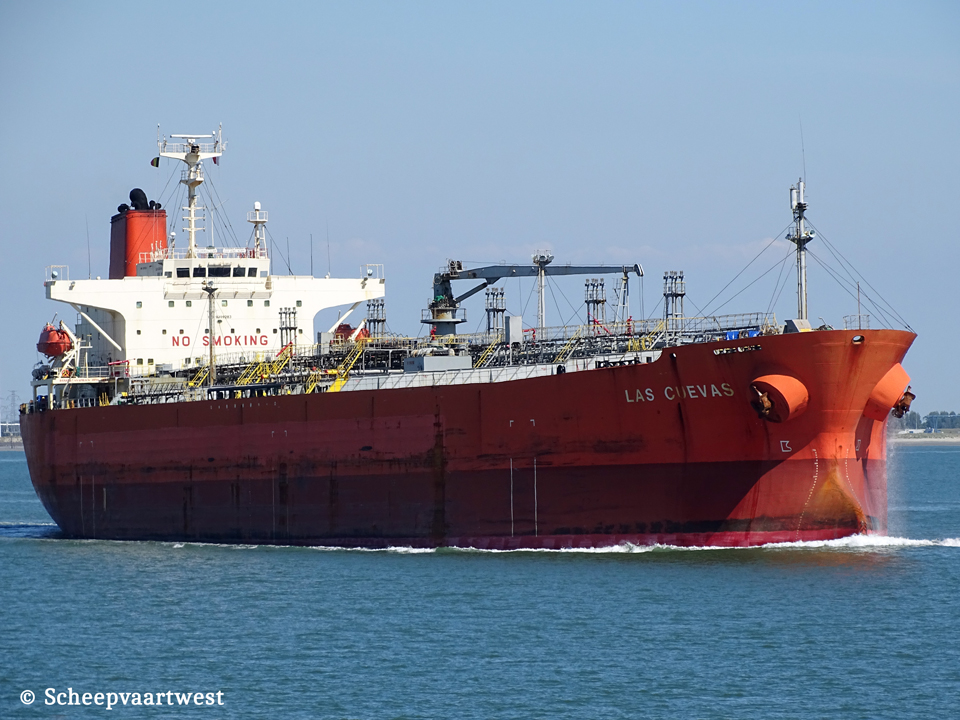

Las Cuevas IMO 9209283 01

Westerschelde 08 May 2019



Name

LAS CUEVAS

Type

Chemical and oil product tanker

IMO-number

9209283

Call sign

2EIF7

Flag

Isle of Man - United Kingdom

Port of registry

Douglas

Previous flags

Republic of Panama, Panama City - Cal sign: H3QX

GT

27.955 t registered

DWT

Summer: 45.299 t

NT

11.956 t registered

Length

179,80 m overall

Breadth

32,20 m moulded

Draught

Summer: 12,12 m

Moulded L x B x D

171,00 x 32,20 x 18,80 m

Registered L x B x D

172,25 x 32,20 x 18,80 m

Freeboard

Summer: 6.714 mm

Depth

18/80 m moulded

Speed

Service: 15,2 knots

Max: 17,7 knots

Built

2000

Keel laid

07/12/1999

Launch date

19/04/2000

Date of completion

05/12/2000

Builder

Minaminippon Shipbuilding Co., Ltd.

Usuki OT (Shitanoe Shipyard) Yard

Japan

Yard number

660

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x Mitsui/MAN-B&W 7S50MC-C - 2 stroke single acting 7 cylinder 500 x 1.910 mm combustion engine 9.989 kW / 13.581 hp at 127,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 532 mm

Propellers

1x Fixed pitch propeller - aft at 127,0 rpm

Boilers

1x Auxiliary vertical boiler - 0,79 MPa

Evaporation: 14,00 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

4x Diesel generatorsets each 900 kW

Number of cargo tanks

16

Cargo tank capacity

Liquid: 54.934 m³

Pumps

18x Cargo pumps each 350 m³/h

Tank capacities

Fuel oil: 2.563 m³

Gas oil: 163 m³

Fresh water: 462 m³

Crew size

28

Manager

MOL Tankship Management Pte. Ltd. (London Branch)

Owner

Greenlight Transport SA

Douglas

Isle of Man

Latest data adjustment

03 April 2021
