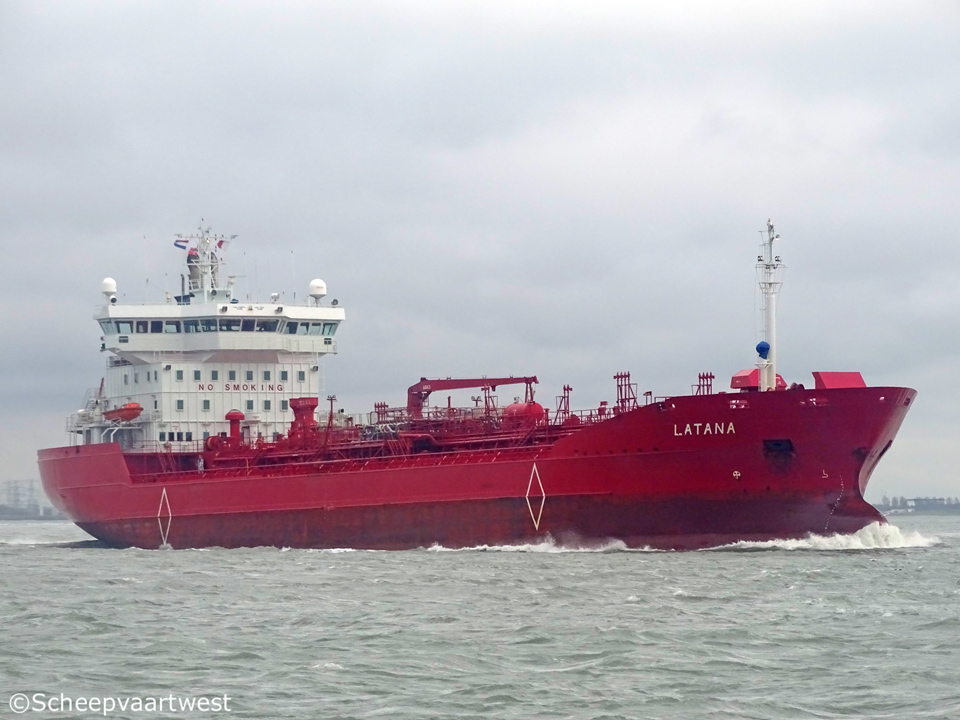

Latana 02
Westerschelde 24 October 2017

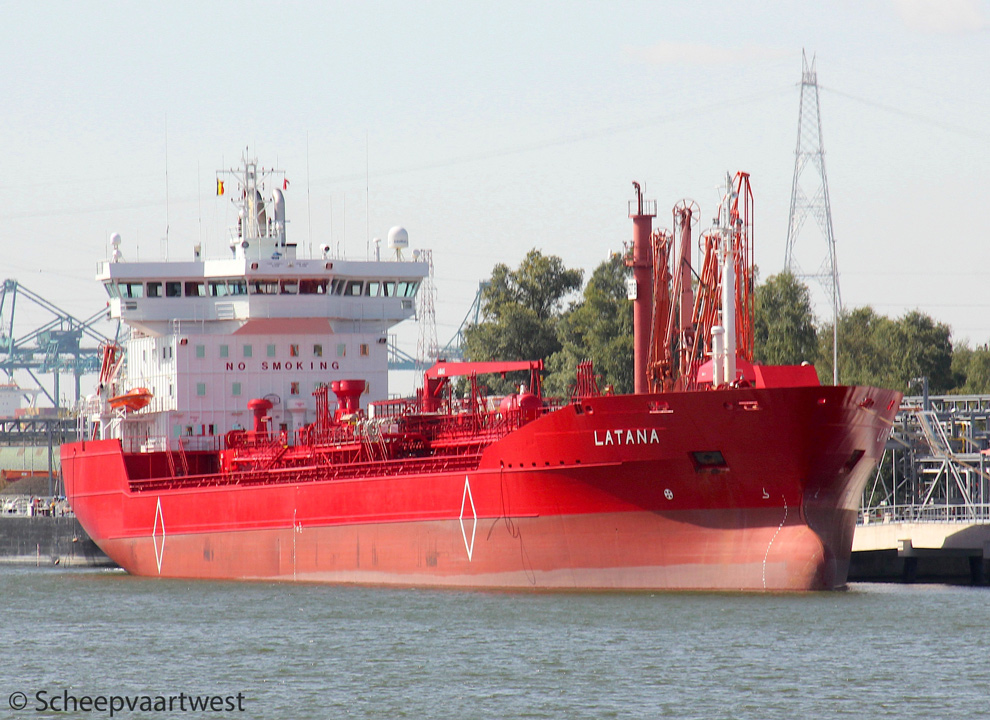

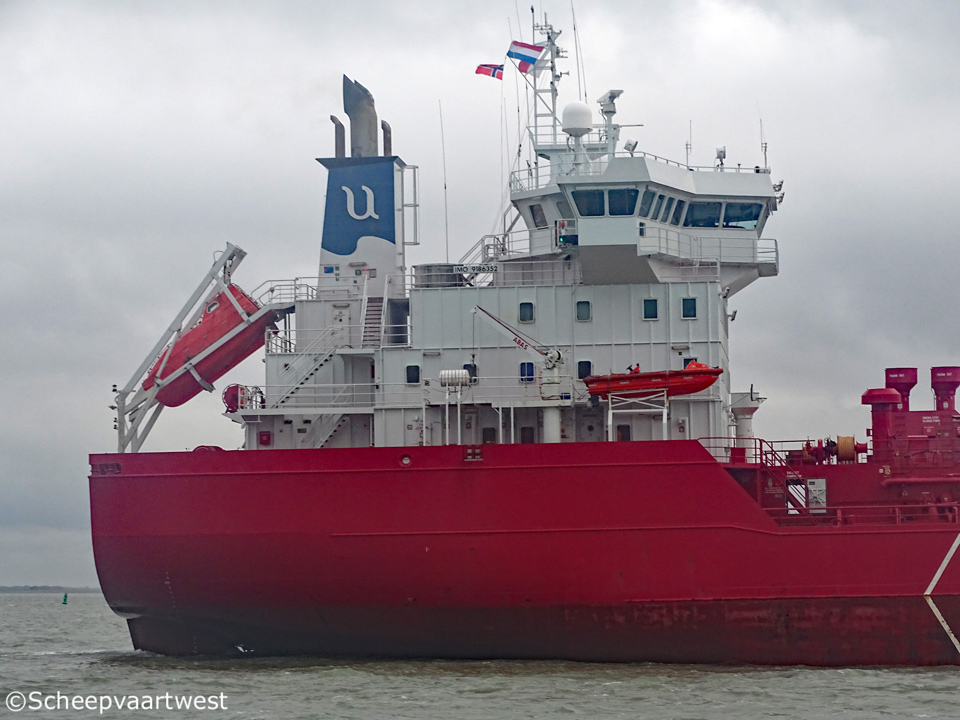

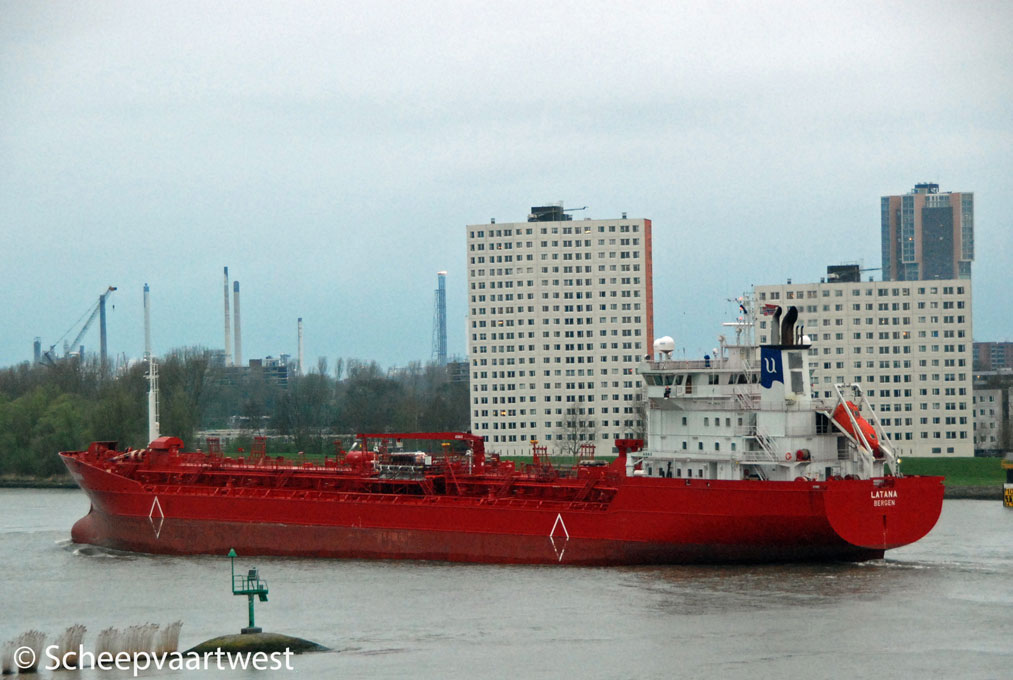

Latana 03   Latana 01   Latana 04
Westerschelde 24/10/17 Spijkenisse 05/04/11   Antwerpen 11/09/18



Name

LATANA

Type

Tanker for chemicals & Oil products

IMO-number

9186352

Call sign

LALS5

Flag

Norway

Port of registry

Bergen

GT

9.960 t

Suez: 10.583 t

DWT

15.990 t

NT

5.019 t

Suez: 8.924 t

Panama: 9.960 t

Length

140,20 m over all

132,20 m between perpendiculars

Breadth

22,03 m extreme

Draught

8,75 m

Keel to masthead

34,20 m

Air draft

Lightship: 31,95 m

Normal ballast: 28,45 m

Freeboard

Summer: 2.561 mm

Winter: 2.743 mm

Tropical: 2.379 mm

Depth

11,50 m

Speed

14,5 knots

Built

2000

Keel laid

01.06.1999

Launch date

11.03.2000

Date of completion

16.05.2000

Builder

Aukra Industrier A/S
7439 Trondheim
Norway

Yard number

101

Hull material

Steel

Hull type

Double bottom with hopper
Double side with top wing

Main engine

1x MAK 8M43 diesel engine - 7.200 kW

Builder: Caterpillar Motoren GmbH & Co. KG

Propellers

1

Boilers

Auxiliary boiler, vertical shell type AQ 9

Auxiliary boiler, exhaust gas smoke tube AQ 2

Builder: Aalborg Industries A/S

Generators

4x Volvo TAMD 163 A diesel generatorsets

Builder: Volvo Penta AB

Emergency generator

1x Volvo TAMD 102 A diesel generatorset
Builder: Volvo Penta AB

Total cubic capacity 98%

16.704 m³ excluding slop tanks

Slop tanks capacity 98%

464 m³

Pumps

20x Cargo pumps centrifugal each 300 m³/h

1x Cargo pumps centrifugal 150 m³/h

2 ballast pumps centrifugal each 600 m³/h

Manifolds

Bow to centre manifold: 72,00 m

Stern to centre manifold: 68,20 m

Distance bridge front to centre of manifold: 41,75 m

Distance between cargo manifold centres: 200 mm

Distance ships rail to manifold: 4.000 mm

Distance manifold to ships side: 4.300 mm

Top of rail to centre of manifold: 2.100 mm

Distance main deck to centre of manifold: 3.300 mm

Tank capacities

Fuel oil: 724 m³

Gas oil: 156 m³

Water ballast: 6.926 m³

Anchor equipment

Length: 550 m

Diameter: 54 mm

Lifting equipment

2x Cranes - SWL 2,0 t each

Crew

16

Manager

Utkilen AS
Strandgaten 197
5004 Bergen
Norway

Operator

Utkilen AS

Registered owner

Utkilen Shipinvest KS
Strandgaten 197
5004 Bergen
Norway

Previous owners

2000 - 2000 Utkilen AS
Strandgaten 197
5004 Bergen
Norway

2000 - 2007 Latana Shipping KS
Strandgaten 197
5004 Bergen
Norway

2007 - 2008 OMYA Utkilen Shipping KS

Strandgaten 196
5004 Bergen
Norway

Last update

17.02.2013
