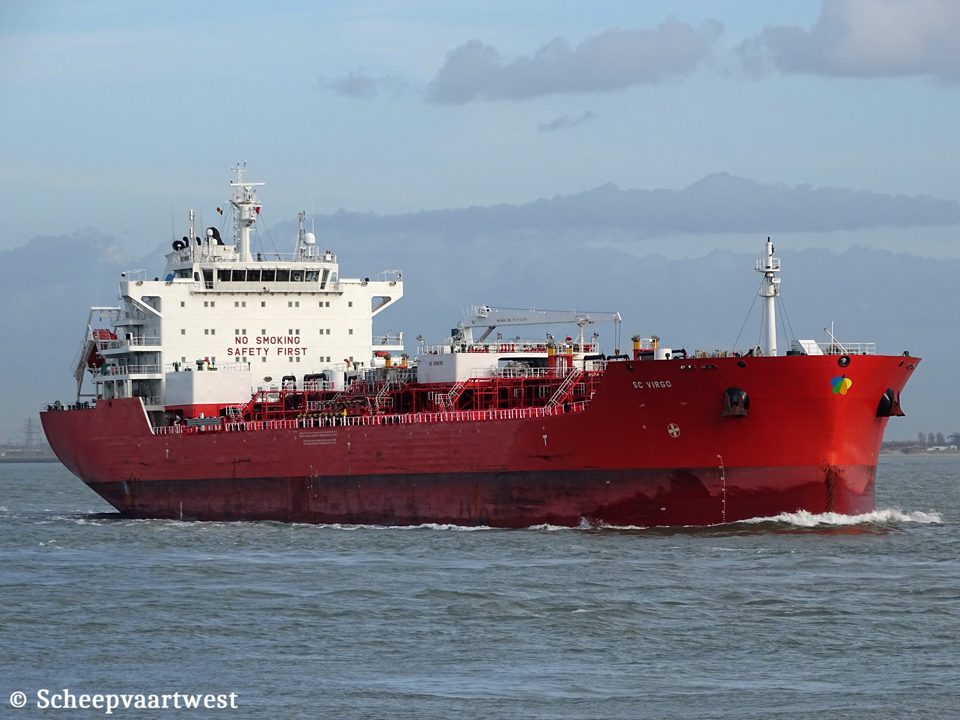

SC Virgo IMO 9801093 02

Westerschelde 05 March 2019

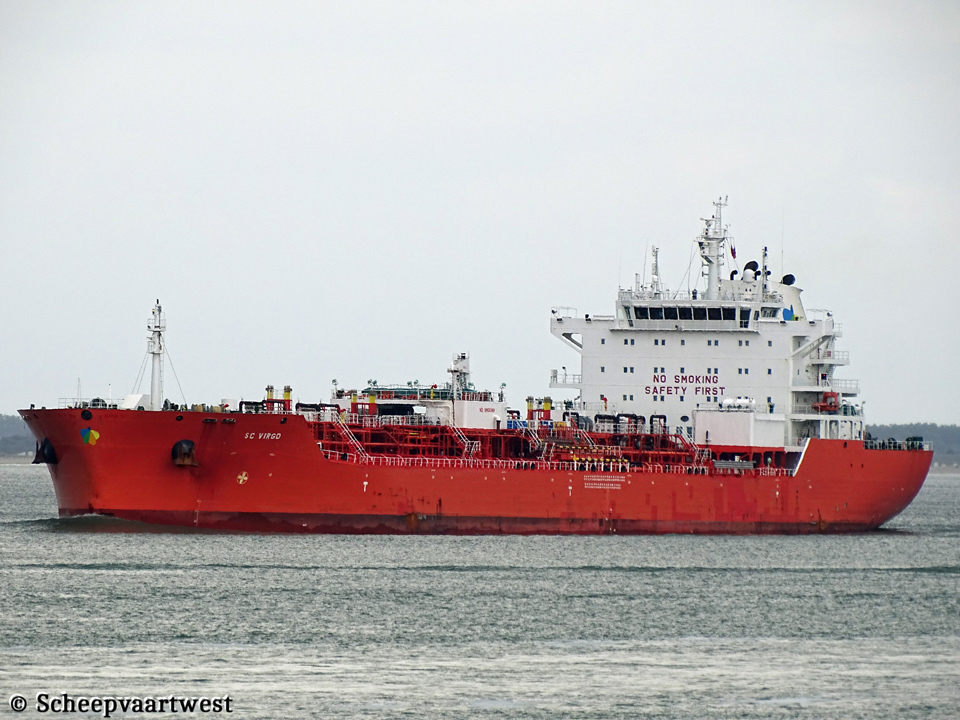

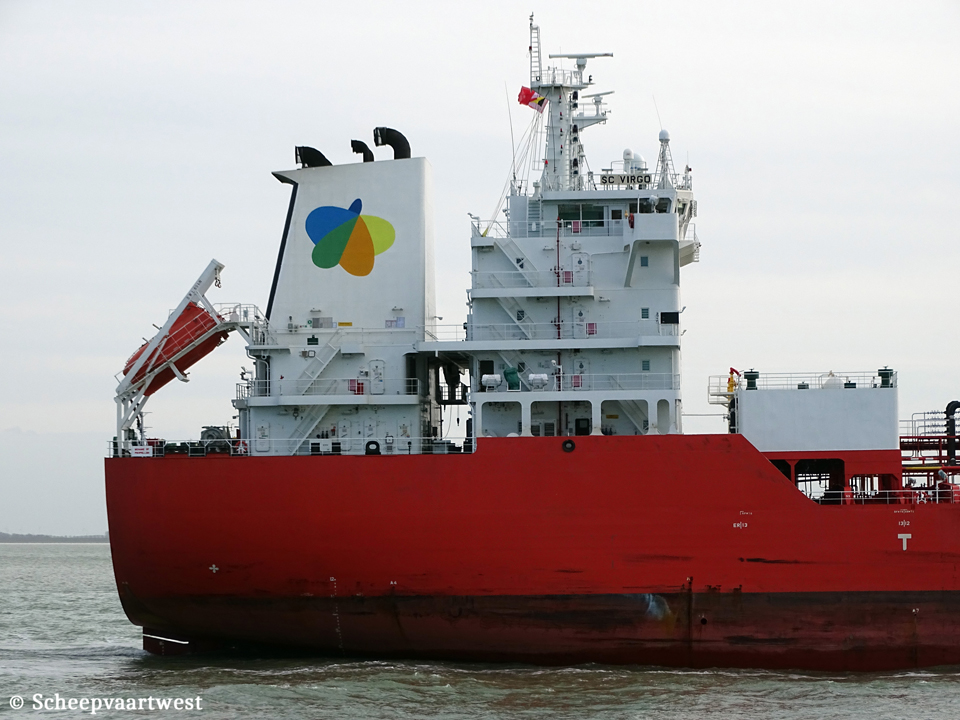

SC Virgo IMO 9801093 03   SC Virgo IMO 9801093 01
Westerschelde 05/03/19   Westerschelde 12/06/20


Name

SC VIRGO

Type

Chemical/Oil tanker

IMO-number

9801093

Call sign

VRRJ3

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

26.364 t

Suez: 27.703 t

DWT

Summer 40.870 t

NT

11.402 t

Suez: 24.082 t

Panama: 22.066 t

Lightship

11.176 t

Length

182,76 m overall

177,35 m between perpendiculars

Breadth

32,00 m moulded

Draught

11,10 m at summer deadweight

Keel to top of mast

46,58 m

Forecastle

18,40 m

Poop

39,20 m

Deckhouse

29,60 m

Freeboard

4.625 mm

Depth

15,70 m moulded

Speed

Service: 12,0 knots

Max: 15,5 knots

Built

2018

Date of completion

15/01/2018

Builder

Jiangsu Hantong Ship Heavy Industry Co., Ltd.

Jiangsu

China

Yard number

HT-CT38-008

Hull material

Steel

Hull type

Double hull

Bulkheads

15

Continuous decks

1x Upper deck

Main engine

1x STX/MAN-B&W 6S50ME-C9.5 - 2 stroke single acting 6 cylinder 500 x 2.214 mm combustion engine Mcr 7.610 kW / 10.347 hp at 104,0 rpm

Build: 28/03/2017

Builder: STX Heavy Industries Co.,Ltd. - South Korea

Propellers

1x Fixed pitch propeller - aft at 104,0 rpm

Boilers

2x Auxiliary boilers

Builder: Jiangyin Sanjie Indusry Co.,Ltd; MIURA Co.,Ltd.

Generators

3x Yanmar 6EY22ALW - 4 stroke 6 cylinder 220 x 320 mm diesel engines each 1.100 kW connected with generators each 1.000 kW - 450 Volt 60 Hz

Bow thruster

1x Tunnel thruster 1.409 kW / 1.916 bhp, forward

Number of cargo tanks

30

Cargo tank capacity

No.1 Cargo Tank (P) - 2.063,76 m³

No.1 Cargo Tank (S) - 2.063,89 m³

No.2 Cargo Tank (P) - 2.579,26 m³

No.2 Cargo Tank (S) - 2.581,80 m³

No.3 Cargo Tank (P) - 820,94 m³

No.3 Cargo Tank (S) - 819,97 m³

No.4 Cargo Tank (CP) - 868,52 m³

No.4 Cargo Tank (CS) - 868,85 m³

No.4 Cargo Tank (P) - 563,57 m³

No.4 Cargo Tank (S) - 564,01 m³

No.5 Cargo Tank (P) - 825,60 m³

No.5 Cargo Tank (S) - 823.36 m³

No.6 Cargo Tank (CP) - 1.278,92 m³

No.6 Cargo Tank (CS) - 1.278,46 m³

No.6 Cargo Tank (P) - 830,64 m³

No.6 Cargo Tank (S) - 834,40 m³

No.7 Cargo Tank (P) - 825,30 m³

No.7 Cargo Tank (S) - 823,97 m³

No.8 Cargo Tank (P) - 2.754,54 m³

No.8 Cargo Tank (S) - 2.749,50 m³

No.9 Cargo Tank (P) - 1.095,80 m³

No.9 Cargo Tank (S) - 1.096,42 m³

No.10 Cargo Tank (P) - 1.649,80 m³

No.10 Cargo Tank (S) - 1.648,88 m³

No.11 Cargo Tank (P) - 1.647,68 m³

No.11 Cargo Tank (S) - 1.646,58 m³

No.12 Cargo Tank (P) - 2.652,31 m³

No.12 Cargo Tank (S) - 2.652,31 m³

No.13 Cargo Tank (P) - 1.392,07 m³

No.13 Cargo Tank (S) - 1.393,27 m³

Total: 43.694,38 m³

Pumps

14 x Cargo pumps each 330 m³/h

16 x Cargo pumps each 220 m³/h

Manifolds

Rail to manifold: 4.600 mm

Bow to centre of manifold: 90,30 m

Tank capacities 100%

Diesel oil: 370,5 m³

Fresh water: 233,8 m³

Fuel oil: 2.317,7 m³

Lube oil: 155,9 m³

Ballast: 15.448,1 m³

Lifting equipment

1x Hose handling crane - SWL 10,0 t

1x Provision monorail crane - SWL 4,0 t

1x Engine room overhead crane - SWL 4,0 t

Crew size

22

Commercial manager

SC Shipping Singapore Pte Ltd.

22-04/05, 6, Temasek Boulevard

Singapore 038986

Republic of Singapore

ISM manager

Fantasea Ship Management Pte

22-04/05, Suntec Tower Four, 6, Temasek Boulevard

Singapore 038986

Republic of Singapore

Registered owner

SC Virgo Shipping Co., Ltd.

Care of SC Shipping Singapore Pte Ltd.

22-04/05, 6, Temasek Boulevard

Singapore 038986

Republic of Singapore

Latest data adjustment

09 November 2022
