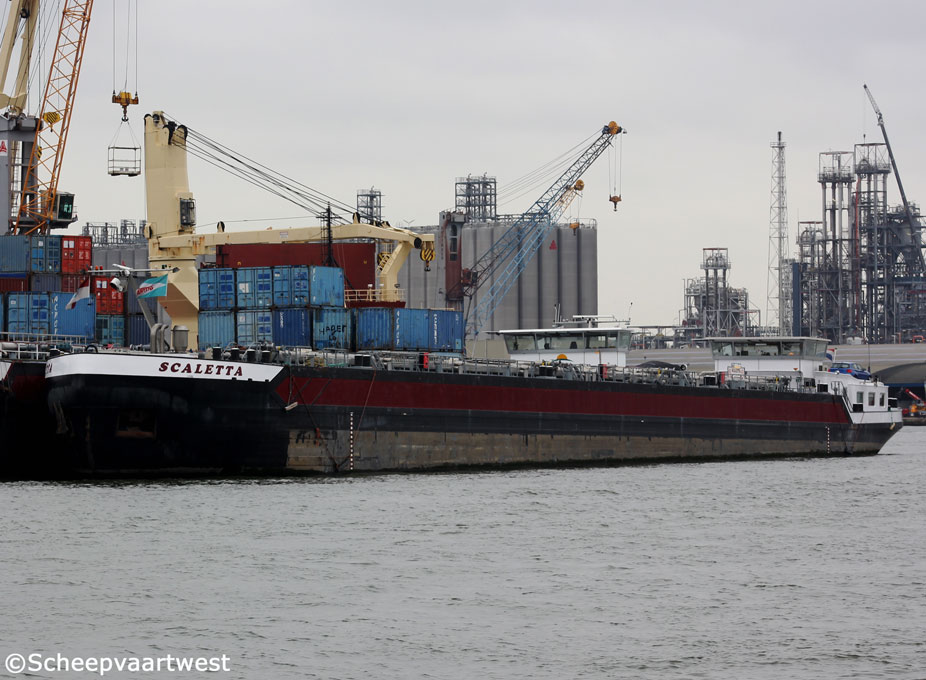

Scaletta 01

Antwerpen 24 October 2014



Name

SCALETTA

Type

Inland tanker

ENI-number

02332648

Call sign

PF6212

Flag

The Netherlands

Port of registry

Gorinchem

Tonnage

2.637 t

Length

109,88 m

Breadth

11,04 m

Draught

3,30 m

Depth

5,14 m

Built

2009

Keel laid

17.03.2009

Launch date

22.06.2009

Date of completion

03.12.2009

Builder casco

Centromost Stocznia Rzeczna
Plock
Poland

Builder completion

Scheepswerf Gelria B.V.
Handelsweg 75
6541 CS Nijmegen
The Netherlands

Yard number

B2/071

Hull material

Shipbuilding steel (standard)

Hull type

Double hull

Partly double bottom

Watertight bulkheads

15

Continuous decks

1

Main engine

1x Mitsubishi S16R-C2MPTK - 4 stroke 16 cylinder 170 x 180 mm diesel engine 1.250 kW / 1.700 hp at 1.600 rpm

Year of manufacture: 2009

Manufacturer: Mitsubishi Heavy Industries, Ltd.
2-16-5, Konan Minato-ku
Tokyo, 108-0075 Tokyo-to
Japan

Propellers

1x Solid propeller - aft at 318 rpm

5 blades propeller - Diameter: 1.750 mm with nozzle diameter 1.762 mm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 57,1 m²

Year of manufacture: 2009

Electric installations

1x Plant 400 V - 82 kVA

1x Plant 400 V - 107 kVA

1x Plant 440 V - 525 kVA

1x Plant 24 V - 230 Ah

1x Plant 24 V - 230 Ah

1x Plant 24 V - 230 Ah

2x Plants each 24 V - 460 Ah

1x Plant 24 V - 560 Ah

Generators

1x Caterpillar C18 ACERT diesel engine coupled with Marathon 573 RSL 4032 generator 525 kVA - 400 Volt

1x Perkins 4.4 TW2GM diesel engine coupled with Marathon 362 CSL 1607 generator 107 kVA - 400 Volt

1x Perkins 4.4 TWGM diesel engine coupled with Marathon 362 CSL 1606 generator 82 kVA - 400 Volt

Batteries

1x Battery for automation 560 Ah

2x Batteries for start auxiliary engine each 460 Ah

1x Battery for start main engine 230 Ah

1x Battery for start auxiliary engine 230 Ah

1x Battery for emergency lighting 230 Ah

Compressed air receivers

1x Receiver 200 litres - 11,0 bar

Bow thruster

1x Transverse thruster 440 kW, forward

Cargo tank capacity

3.420 m³

Pumps

2x Kampers 2M206 cargo pumps

1x Kampers 2M82 Slop pump

Owner

Remie Tankvaart BV
Top Naeffstraat 23
4207 MT Gorinchem
The Netherlands

Latest data adjustment

01 December 2014
