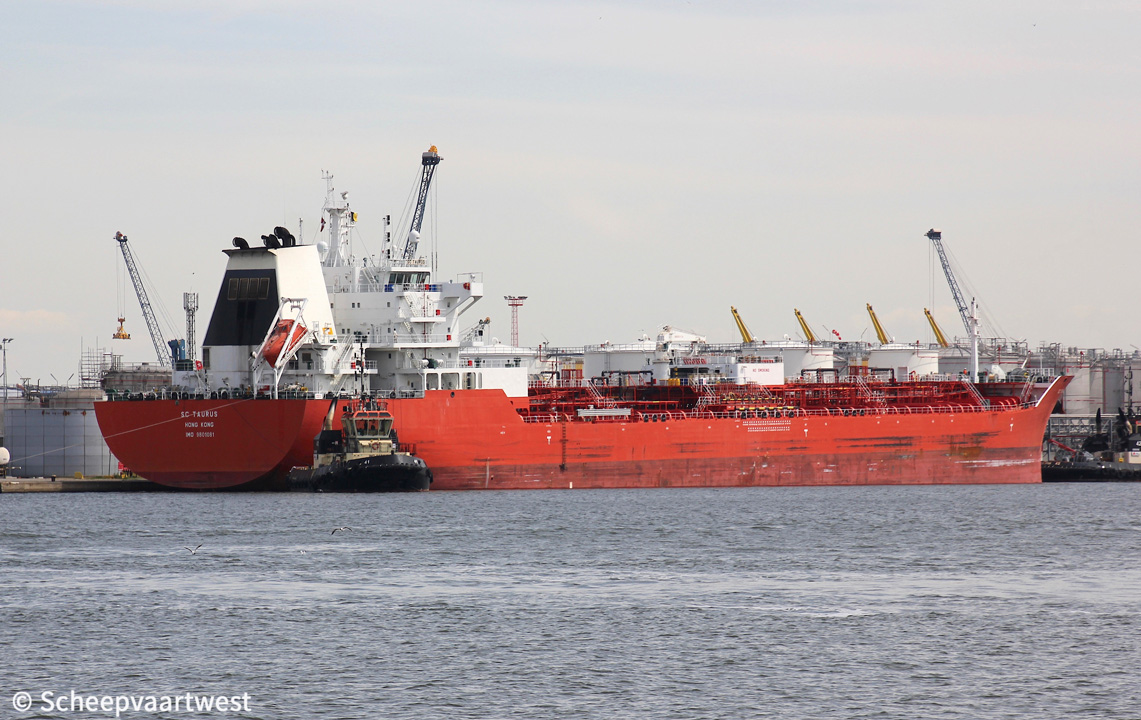

SC Taurus 01

Antwerpen 23 May 2019



Name

SC TAURUS

Type

Chemical and product tanker

IMO-number

9801081

Call sign

VRRE8

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

26.364 t

Suez: 27.703 t

DWT

Summer: 40.962,5 t

NT

11.408 t

Suez: 24.082 t

Panama: 22.066 t

Light ship weight

11.084 t

Length

182,80 m overall

177,00 m between perpendiculars

Breadth

32,00 m moulded

Draught

Summer: 11,10 m

Keel to top of mast

46,59 m

Deckhouse

9,60 m

Forecastle

18,40 m

Poop

39,20 m

Freeboard

4.621 mm

Depth

15,70 m moulded

Speed

Max: 15,5 knots

Service: 12,0 knots

Built

2017

Date of completion

18/10/2017

Builder

Jiangsu Hantong Wing Heavy Industry Co., Ltd. - Tongzhou JS Yard
China

Yard number

HT-CT38-007

Hull material

Steel

Hull type

Double hull

Bulkheads

15

Continuous decks

1x Upper deck

Main engine

1x STX-MAN B&W 6S50ME-C9.5 - 2 stroke single acting 6 cylinder 500 x 2.214 mm combustion engine 7.610 kW / 10.347 hp at 104,0 rpm

Build: 30/12/2016

Builder: STX Heavy Industries Co.,Ltd.- South Korea

Propellers

1x Fixed pitch propeller - aft at 104,0 rpm

Boilers

1x Auxiliary boiler

1x Water tube auxiliary boiler

Builder: Jiangyin Sanjie Indusry Co.,Ltd. Miura Co.,Ltd.

Generators

3x 6EY22ALW - 4 stroke 6 cylinder 220 x 320 diesel engines each 1.100 kW coupled with 3 generators each 1.000 kW - 450 Volt 60 Hz

Bow thruster

1x 1,085 kW / 1.475 bhp, forward

Number of cargo tanks

30

Cargo hold capacity

No.1 P: 2.063,76 m³; No.1 S: 2.063,89 m³

No.2 P: 2.579,26 m³; No.2 S: 2.581,80 m³

No.3 P: 820,94 m³; No.3 S: 819,97 m³

No.4 CP: 868,52 m³; No.4 CS: 868,85 m³; No.4 P: 563,57 m³; No.4 S: 564,01 m³

No.5 P: 825,60 m³; No.5 S: 823,36 m³

No.6 CP: 1.278,92 m³; No.6 CS: 1.278,46 m³; No.6 P: 830,64 m³; No.6 S: 834,40 m³

No.7 P: 825,30 m³; No.7 S: 823,97 m³

No.8 P: 2.754,54 m³; No.8 S: 2.749,50 m³

No.9 P: 1.095,80 m³; No.9 S: 1.096,42 m³

No.10 P: 1.649,80 m³; No.10 S: 1.648,88 m³

No.11 P: 1.647,68 m³; No.11 S: 1.646,58 m³

No.12 P: 2.652,31 m³; No.12 S: 2.652,31 m³

No.13 P: 1.392,07 m³; No.13 S: 1.393,27 m³

Total: 43.694,38 m³

Number of pumps

14x Cargo pumps each 330 m³/h

16 Cargo pumps each 220 m³/h

Manifolds

Summer waterline to manifold: 7,48 m

Normal ballast waterline to manifold: 12,64 m

Rail to manifold: 3,45 m

Bow to centre of manifold (BCM): 90,30 m

Tank capacities

Diesel oil: 370,5 m³
Freshwater:233,8 m³
Fuel oil: 2.317,7 m³
Lube oil: 155,9 m³
Tank ballast: 15.448,15 m³

Lifting equipment

1x Hose handling crane - SWL 10,0 t
1x Provision monorail crane - SWL 4,0 t
1x Engine room overhead crane - SWL 4,0 t

Manager

Sinochem Shipping Co. Ltd (Hainan)
Room 2606, 26th Floor, Jinmao Tower, 88, Shiji Dadao, Pudong Xinqu
Shanghai, 200121
China

Operator

Aoxing Ship management Singapore Pte. Ltd.

Registered owner

Jiatian International Ship Lease Co., Limited

Latest data adjustment

30 June 2019
