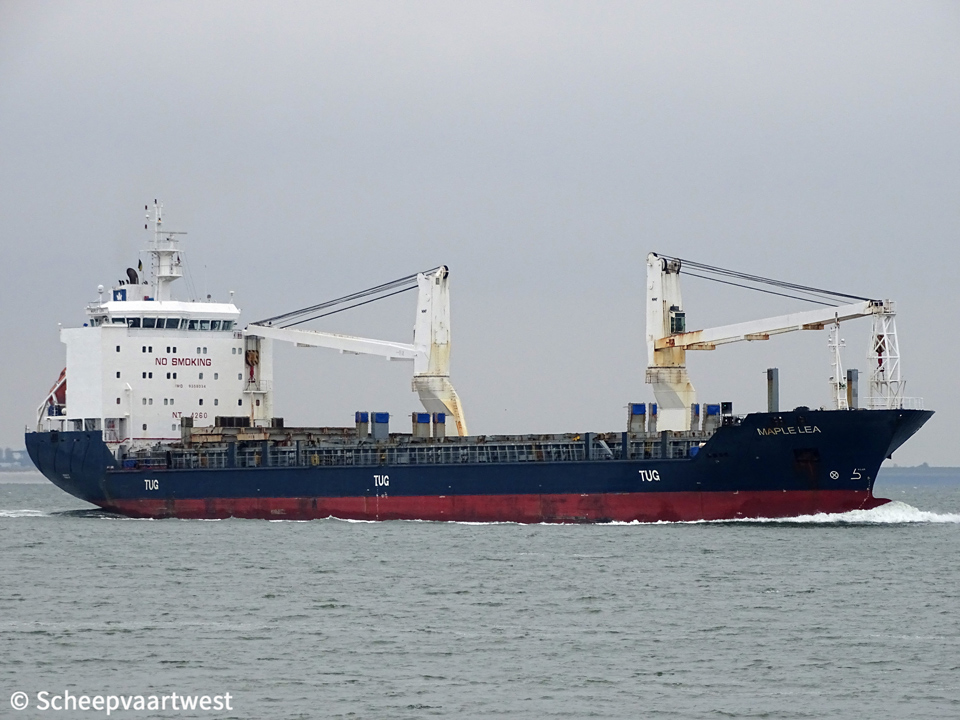

Westerschelde 29 October 2018 |
|
Name |
MAPLE LEA |
|
Previous names |
2007 - 03/2011 Beluga Flirtation 03/2011 - 07/2012 Thorco Horizon 07/2012 - 07/2012 Maple Lea 07/2012 - 2018 BBC Marple Lea |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9358034 |
|
Call sign |
DDLO |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
Previous flags |
Antigua & Barbuda, St. John’s - Call sign: V2CE3 |
|
GT |
9.611 t |
|
DWT |
Summer: 12.719,8 t |
|
NT |
4.260 t |
|
Number of 20ft containers |
On deck: 331 In hold: 334 Total:665 |
|
Container capacity 14t |
528 |
|
Reefer capacity |
50 |
|
Length |
138,07 m overall 130,00 m between perpendiculars |
|
Breadth |
21,35 m extreme 21,00 m moulded |
|
Draught |
Max: 8,00 m |
|
Height above keel |
40,90 m |
|
Forecastle |
9,96 m |
|
Poop |
12,60 m |
|
Depth |
11,00 m to main deck |
|
Speed |
Max: 15,0 knots Laden: 14,0 knots |
|
Built |
2007 |
|
Keel laid |
29/12/2004 |
|
Launch date |
22/11/2006 |
|
Date of completion |
12/05/2007 |
|
Builder |
China Changjiang Shipping Group Qingshan Shipyard |
|
Yard number |
QS2004 0306 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M43C - 2 stroke 6 cylinder 430 x 610 mm combustion engine 5.400 kW / 7.342 bhp at 500 rpm Manufacturer: Caterpillar Motoren Rostock GmbH - Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 132,0 rpm |
|
Boilers |
1x Thermal oil heater, exhaust heated - 10,0 bar Heating surface: 88,6 m² Manufacturer: TUBE-TEC Rohrverformungstechnik GmbH 1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 44,8 m² Manufacturer: Apparate- und Kesselbau AKB GmbH |
|
Electric installations |
1x Plant 400/ 230 V with 626 kVA 1x Plant 400/ 230 V with 626 kVA 1x Plant 400/ 230 V with 626 kVA 1x Plant 400 V with 875 kVA 1x Plant 400 V with 124 kVA |
|
Shaft generator |
1x 875 kVA |
|
Generators |
3x MAN D2840LE301 main diesel generatorsets each 626 kVA |
|
Emergency generator |
1x MAN D2866E diesel generatorset 124 kVA |
|
Bow thruster |
1x 500 kW, forward |
|
Number of holds |
3 Hold 1: 18,75 x 15,01 x 10,53 m Hold 2: 42,00 x 17,50 x 11,18 m Hold 3: 25,50 x 17,50 x 10,77 m |
|
Cargo hold capacity |
Grain: 20.898 m³ Bale: 19.311 m³ |
|
Number of hatches |
3 |
|
Hatch type |
Automatic folding-type |
|
Hold ventilation |
Mechanical hold ventilation |
|
Floor space |
Under deck: 2.810 m² / 30.247 ft² On deck: 1.480 m² / 15.931 ft² |
|
Max permitted loads |
Tanktop: 16,0 t/m² Tweendeck hold 1: 2,5 t/m² Tweendeck hold 2-3: 4,0 t/m² Hatch cover: 1,75 t/m² |
|
Tank capacities |
Fuel: 956 m³ Ballast: 5.009,9 m³ |
|
Anchor equipment |
3x Anchors weight each 4.590 kg Length: 545,80 m Diameter: 52 mm |
|
Cargo gear |
2x NMF cranes - SWL 120 t each port-side mounted Combinable up to 240 t Outreach: 4,00 to 33,00 m |
|
Crew size |
20 |
|
Renamed |
2018 Lea Auerbach Liberia, Monrovia - Call sign: D5SN8 Owner: Auerbach Schiff 3 GmbH & Co KG Manager: Auerbach Bereederung GmbH & Co. KG |
|
Latest data adjustment |
22 December 2019 |
