| Spijkenisse 19 April 2011 |
|
Name |

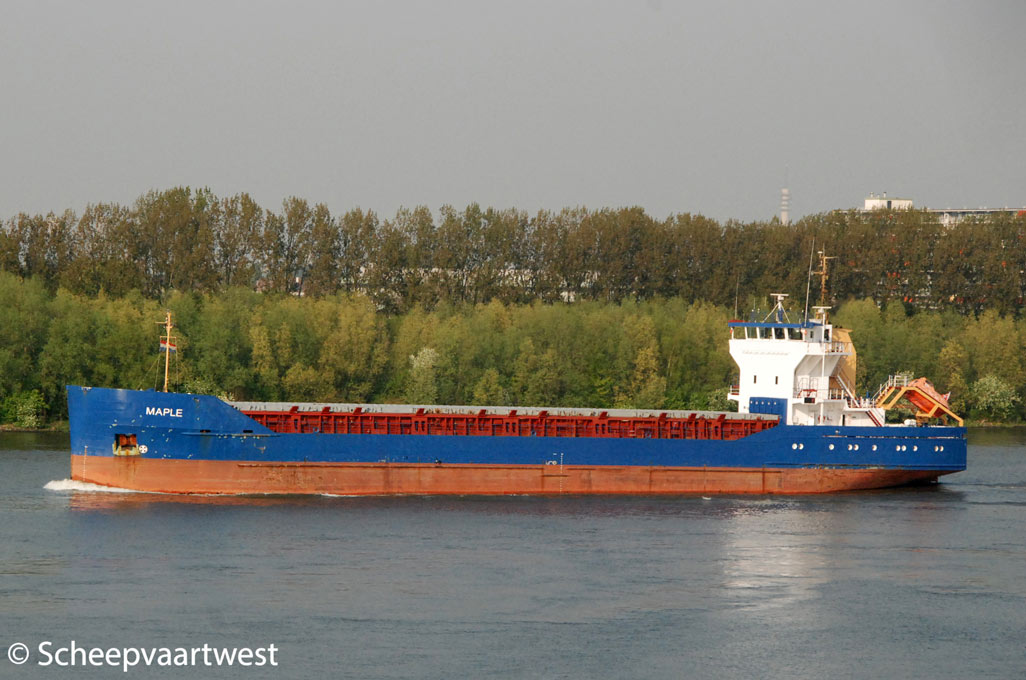

MAPLE |
|
Previous names |
1985 - 02.2005 Paula - H. Breuer KG ms "PAULA", Germany 2005 - 10.2008 Simon B - G. Buck Schiffahrts GmbH ms "SIMON B", Antigua & Barbuda 2008 Malpe - Nyki Shipping B.V., Gibraltar |
|
Type |
General cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
8509844 |
|
Call sign |
E5U2638 |
|
Flag |
Cook Islands |
|
Port of registry |
Avatiu |
|
GT |
2.590 t |
|
DWT |
3.053 t |
|
NT |
1.148 t |
|
Number of 20ft containers |
153 |
|
Length |
87,99 m overall 86,63 m registered |
|
Breadth |
12,80 m registered |
|
Draught |
5,25 m |
|
Forecastle |
8,63 m |
|
Poop |
19,50 m |
|
Depth |
7,45 m |
|
Speed |
11,0 knots |
|
Built |
1985 |
|
Keel laid |
31.08.1984 |
|
Launch date |
24.06.1985 |
|
Date of completion |
07.1985 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. |
|
Yard number |
972 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
3 |
|
Continuous decks |
2 |
|
Main engine |
1x Deutz SBV 6 M 628 - 4 stroke 6 cylinder 240 x 280 mm diesel engine - 875 kW at 900 rpm Year of manufacture: 1985 Manufacturer: Klöckner-Humboldt-Deutz AG |
|
Propellers |
1x Controllable pitch propeller - aft at 202 rpm |
|
Electric installations |
1x Plant 380/220 V - 105 kVA 1x Plant 380/220 V - 220 kVA 1x Plant 380 V - 350 kVA |
|
Shaft generator |
1x 350 kVA |
|
Generators |
1x Diesel generatorset 220 kVA 1x Diesel generatorset 105 kVA |
|
Compressed air receivers |
1x Receiver 250 litres - 30,0 bar 1x Receiver 125 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 166 kW, forward |
|
Cargo capacity |
Grain: 4.763 m³ Bales: 4.745 m³ |
|
Tank capacities |
Fuel oil: 233 m³ Ballast water: 1.691 m³ |
|
Anchor equipment |
3x Anchors weight each 1.440 kg Chain length: 412,50 m |
|
Crew size |
8 |
|
Manager |
Furkan Shipping Inv. Ltd. Co. |
|
Registered owner |
Adnan B Shipping Ltd. |
|
Last update |
14.02.2013 |
