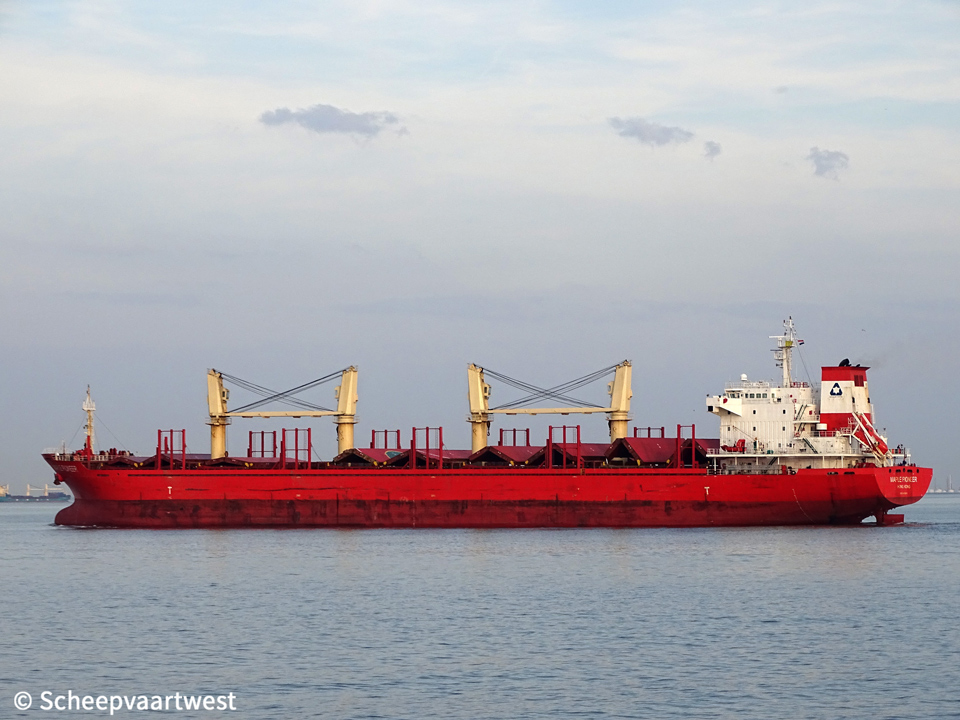

Maple Pioneer 02

Westerschelde 11 May 2018

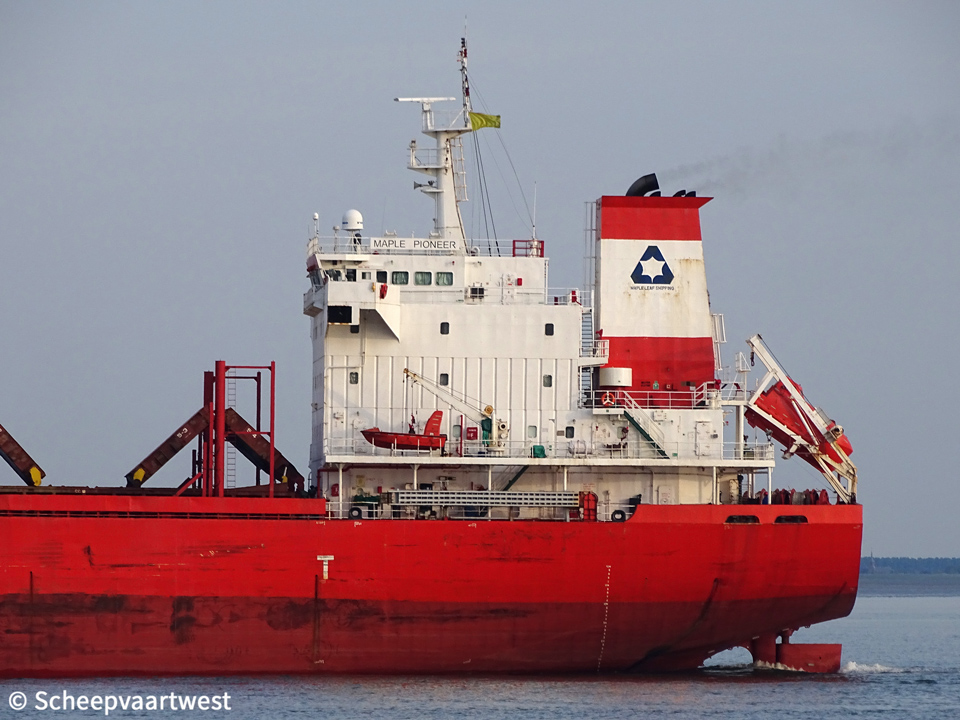

Maple Pioneer 01
Westerschelde 11/05/18













Name

MAPLE PIONEER

Type

Bulk carrier - Strengthened for heavy cargoes

IMO-number

9493494

Call sign

VRDQ3

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

20.763 t

DWT

Summer: 32.500 t

NT

11.627 t

Length

179,90 m overall

171,50 m between perpendiculars

Breadth

28,40 m moulded

Draught

Max: 10,00 m

Forecastle

16,80 m

Poop

17,40 m

Freeboard

3.978 mm

Depth

14,10 m moulded

Speed

13,7 knots

Built

2008

Date of completion

19/09/2008

Builder

Taizhou Maple Leaf Shipbuilding Co., Ltd.

China

Yard number

MLBC 32500-015

Hull material

Steel

Bulkheads

7

Continuous decks

1

Main engine

1x STX/MAN-B&W 6S42MC-MK7 - 6 cylinder combustion engine 6.480 kW at 136,0 rpm

Build: 01/11/2006

Builder: STX Heavy Industries Co., Ltd.

Boilers

Builder: Zhangjiagang Greens-shazhou Boiler Co.,Ltd.

Generators

3x HFC6 454-64 main diesel generatorsets each 465 kW

Manufacturer: Zhenjiang Marine Auxilairy Mach. Works China

Number of cargo holds

5

Cargo hold capacity

Grain:

Hold 1: 7.064,61 m³

Hold 2: 9.308,08 m³

Hold 3: 8.746,35 m³

Hold 4: 9.315,54 m³

Hold 5: 8.130,54 m³

Total: 42.565,12 m³

Number of hatches

5

3x 20,00 x 19,20 m

1x 18,40 x 19,20 m

1x 14,40 x 17,60 m

Tank capacities

Ballast: 11.582 m³

Anchor equipment

4x Deck cranes - SWL 30,5 t each

Lifting equipment

1x Engine room overhead crane - SWL 2,0 t

Operator

Maple Leaf Shipping Co., Limited

8, Huanhe Xilu, Zhang'an Jiedao, Jiaojiang Qu

Taizhou, Zhejiang, 317018

China

Owner

United Fame Shipping Ltd.

Latest data adjustment

07 July 2020
