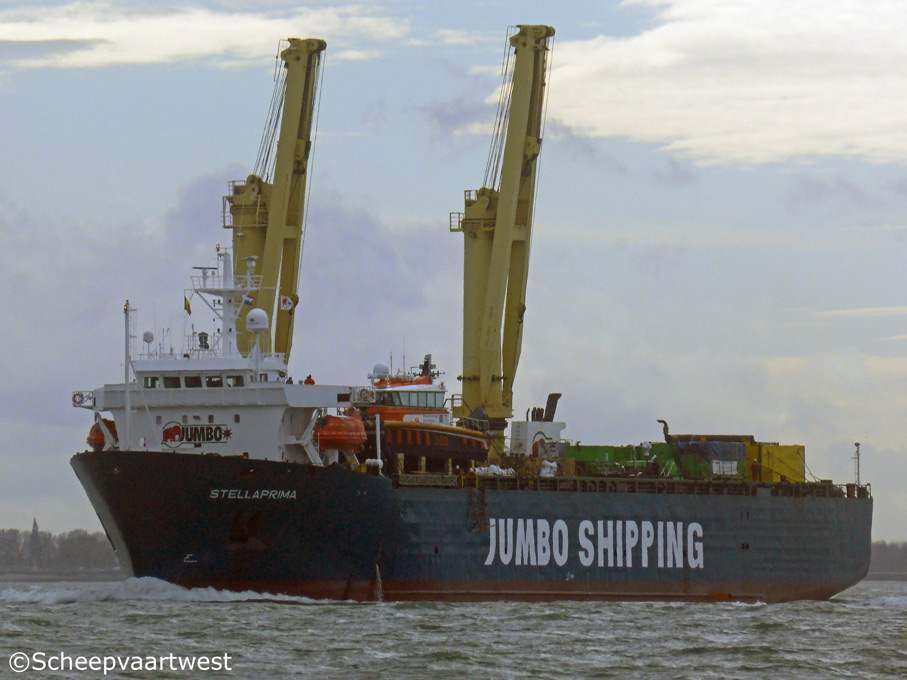

Stellaprima 01

Westerschelde 19 October 2014

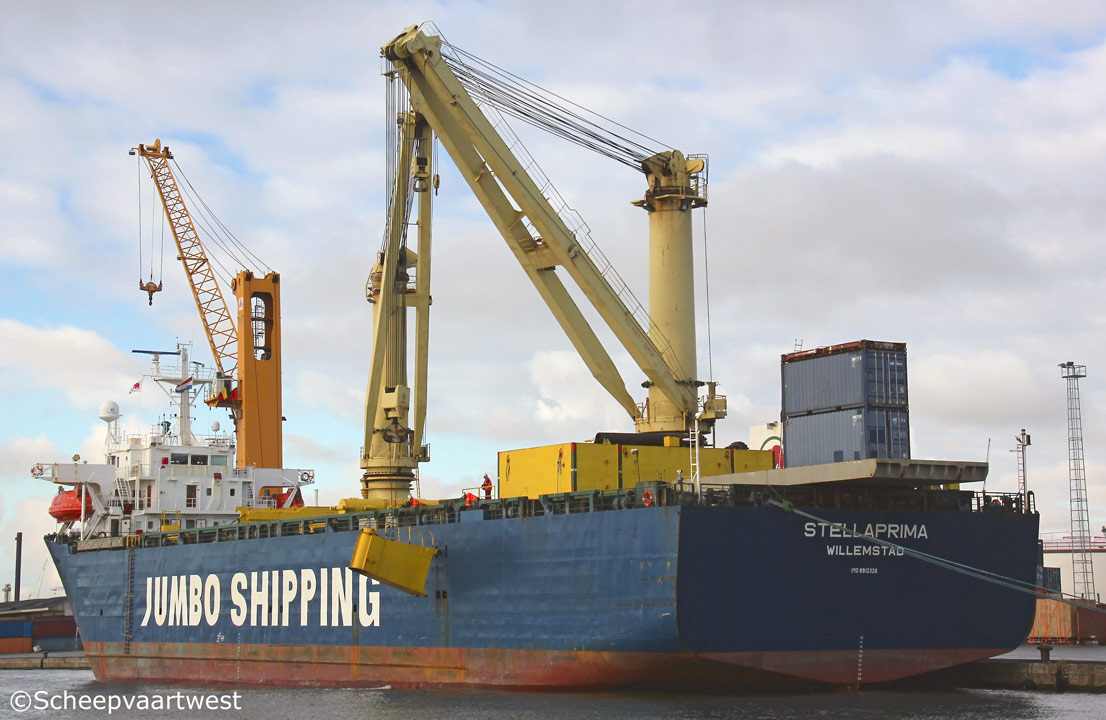

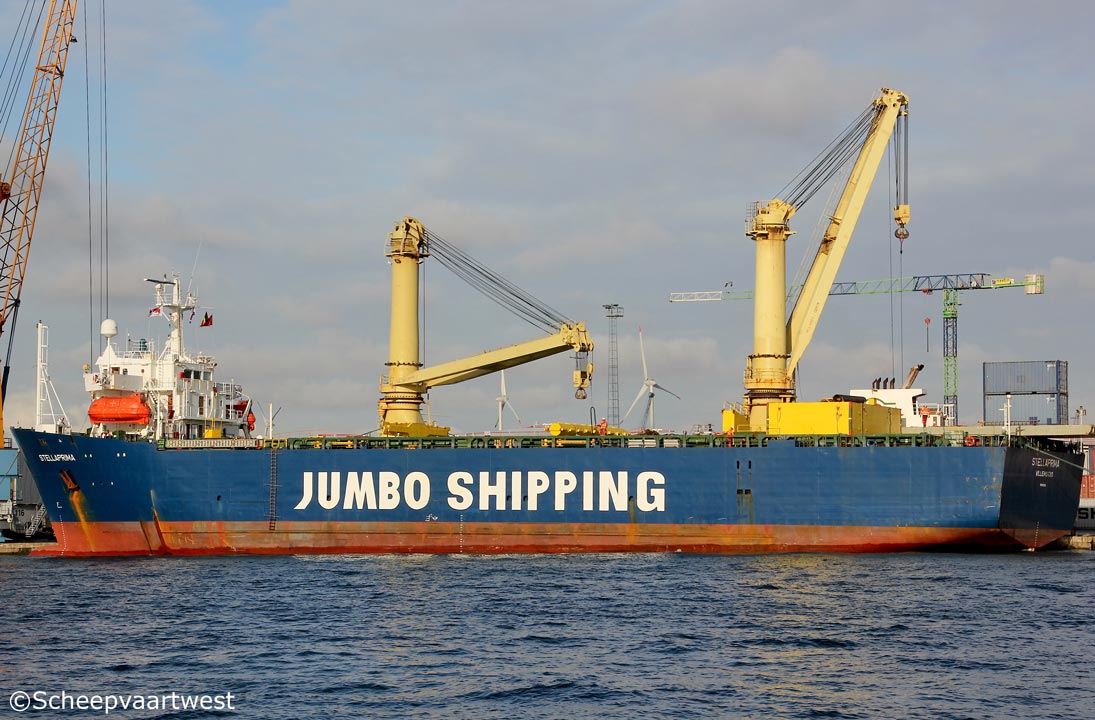

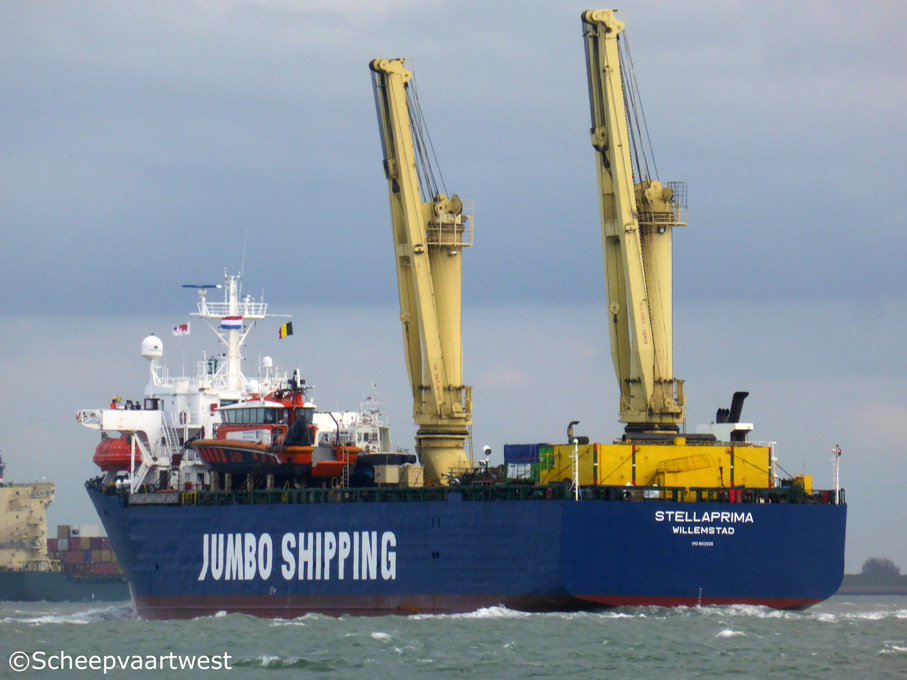

Stellaprima 03   Stellaprima 04   Stellaprima 06   Stellaprima 09
19/10/14   Antwerpen 05/01/17   05/01/17   05/01/17



Name

STELLAPRIMA

Type

General cargo ship - Heavy load carrier - Strengthened for heavy cargoes

IMO-number

8912326

Call sign

PHEA

Flag

The Netherlands

Port of registry

Rotterdam

Previous flags

Netherlands Antilles, Willemstad - Call sign: PJMJ

GT

6.902 t

Suez: 7.089 t
Panama: 7.181 t

DWT

Summer: 7.572 t

NT

2.070 t

Suez: 5.894 t

Panama: 4.559 t

Number of 20ft containers

340

Length

100,78 m overall

93,34 m between perpendiculars

Breadth

20,98 m extreme

Draught

Max.: 7,42 m

Air draft

36,00 m above keel

Depth

13,32 m moulded

Speed

13,5 knots

Built

1991

Launch date

12.06.1991

Delivery date

03.09.1991

Builder

YVC Ysselwerf B.V.
Capelle aan den IJssel
The Netherlands

Yard number

252

Hull material

Steel

Continuous decks

1

Main engine

1x MaK 9M453C - 4 stroke single acting 9 cylinder 320 x 420 mm diesel engine 3.300 kW

Propellers

1x Controllable pitch propeller

Generators

3x Main diesel generatorsets each 436 kW

Number of holds

1

Dimensions lowerhold: 49,57 x 15,18 x 3,795 m

Dimensions tweendeck: 71,48 x15,18 m x 7,585 m

Total hold height

12,18 m (11,98 m below hatchcovers 4,5 & 6)

Cargo hold capacity

Bale: 10.902 m³

Number of hatches

1

Free deck space

1.375 m²

Number of tweendecks

1x (flush) adjustable in height

Max. permitted loads

Tanktop: 12,0 t/m²

Tweendeck: 3,50 t/m²

Hatchcovers: 3x 4,5 t/m² - 5x 2,80 t/m²

Tank capacities

HFO: 614 t

MGO: 110 t

Fresh water: 92 t

Cargo gear

2x Cranes - SWL 400 t each

1x Crane - SWL 250 t

Combined 650 t

Auxiliary hoist: 2x 25 t

Crew

16

Manager

Kahn Scheepvaart B.V.
Rotterdam
The Netherlands

Previous managers

09.1991 - 12.2005 Jumbo Navigation N.V., Willemstad (NA) - Netherlands Antilles

Owner

Jumbo Navigation N.V.
Willemstad (NA)
Netherlands Antilles

Latest data adjustment

11 August 2016
