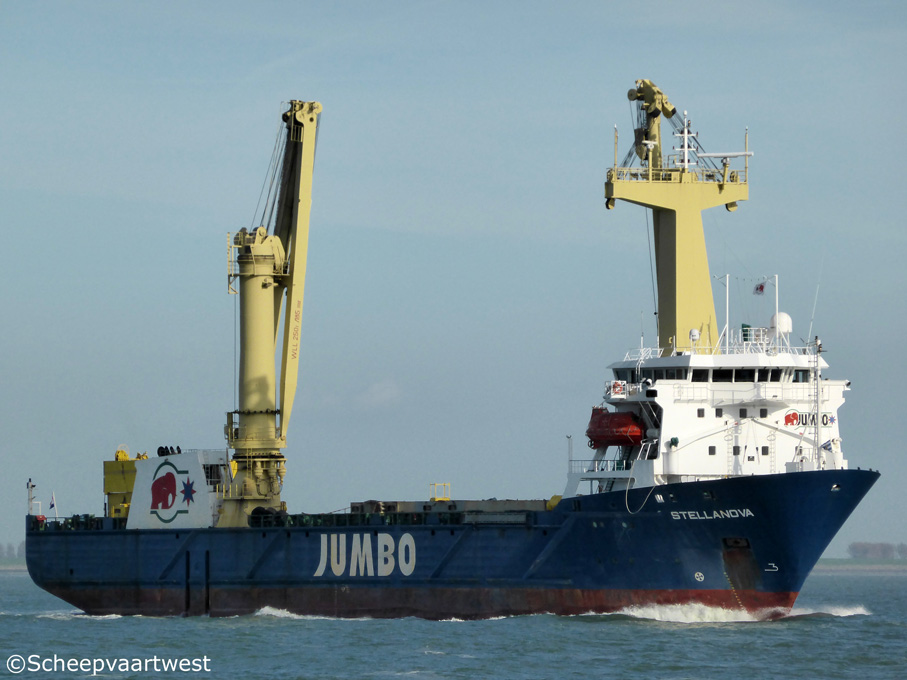

Stellanova 01

Westerschelde 09 April 2014



Name

STELLANOVA

Type

General cargo ship - Heavy load carrier

IMO-number

9085730

Call sign

PHQW

Flag

The Netherlands

Port of registry

Rotterdam

GT

4.952 t

DWT

Summer: 5.204 t

NT

1.488 t

Number of 20ft containers

300

Length

95,72 m overall

87,55 m between perpendiculars

Breadth

18,37 m extreme

Draught

Max.: 6,81 m

Depth

11,32 m moulded

Speed

13,5 knots

Built

1996

Launch date

12.09.1995

Date of completion

08.01.1996

Builder

YVC Ysselwerf B.V.
Capelle aan den IJssel
The Netherlands

Yard number

266

Hull material

Steel

Continuous decks

2

Main engine

1x MAK Type 6M32 - 4 stroke single acting 6 cylinder 320 x 480 mm diesel engine 2.701 kW / 3.671 bhp at 600 rpm

Builder: Krupp MaK Maschinenbau GmbH, Kiel - German Federal Republic

Propellers

1x Controllable pitch propeller

Bow thruster

1x Thrustmaster JT800-42 JET - 475 kW

Number of holds

1

Dimensions lowerhold: 47,28 x 13,95 x 3,650 m

Dimensions tweendeck: 66,98 x 13,95 x 5,304 m

Total height: 9,75 m

Cargo hold capacity

Grain: 6.800 m³

Bale: 7.167 m³ with tweendecks in holds

Number of hatches

1

Free deckspace

Abt.: 1.150 m²

Max. permitted loads

Tanktop: 12 t/m²

Tweendecks: 3,5 t/m²

Hatchcovers: 3,5 t/m²

Tank capacities

Fuel oil (IFO): 540 t

Marine gas oil: 100 t

Fresh water: 110 t

Cargo gear

1x Deck crane - SWL 250 t

1x Derrick - SWL 250 t

Combined - SWL 500 t

Auxiliary hoist: 2x - SWL 25 t

Manager

Jumbo Shipping Co. S.A.
Geneve
Switzerland

Previous managers

01.1996 - 12.2005 Kahn Scheepvaart B.V., Rotterdam - The Netherlands

Owner

Stella V.o.f
Rotterdam
The Netherlands

Renamed

11.2015 African Express

Republic of Palau - Call sign: T8A2219

Owner: African Express Ltd., Majuro - Marshall Islands

Latest data adjustment

09 July 2016
