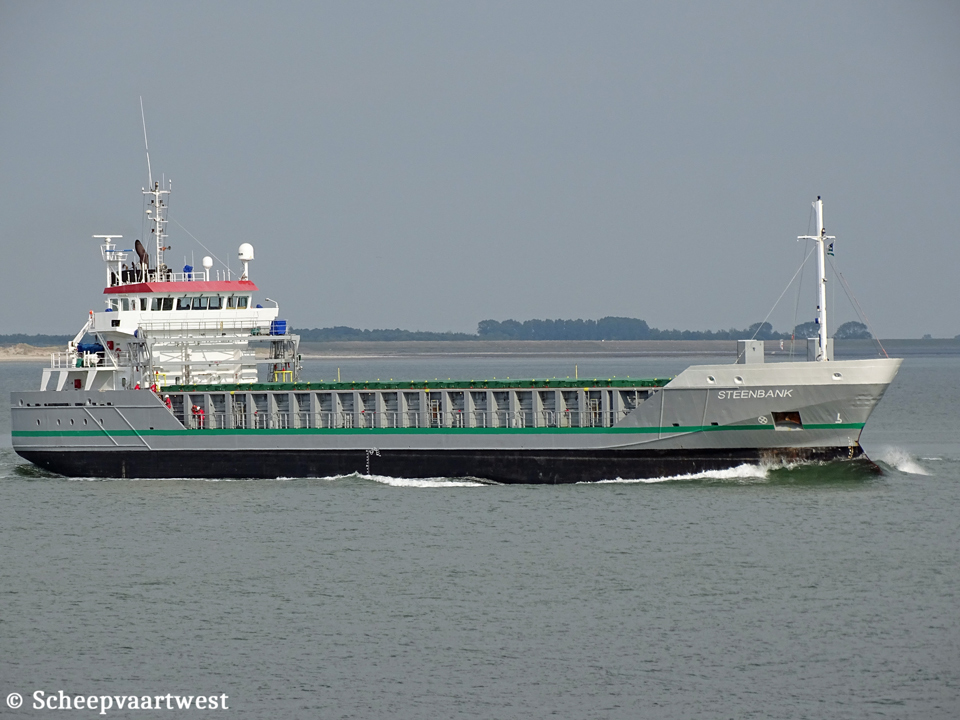

Steenbank IMO 9313876 04

Westerschelde 15 June 2020

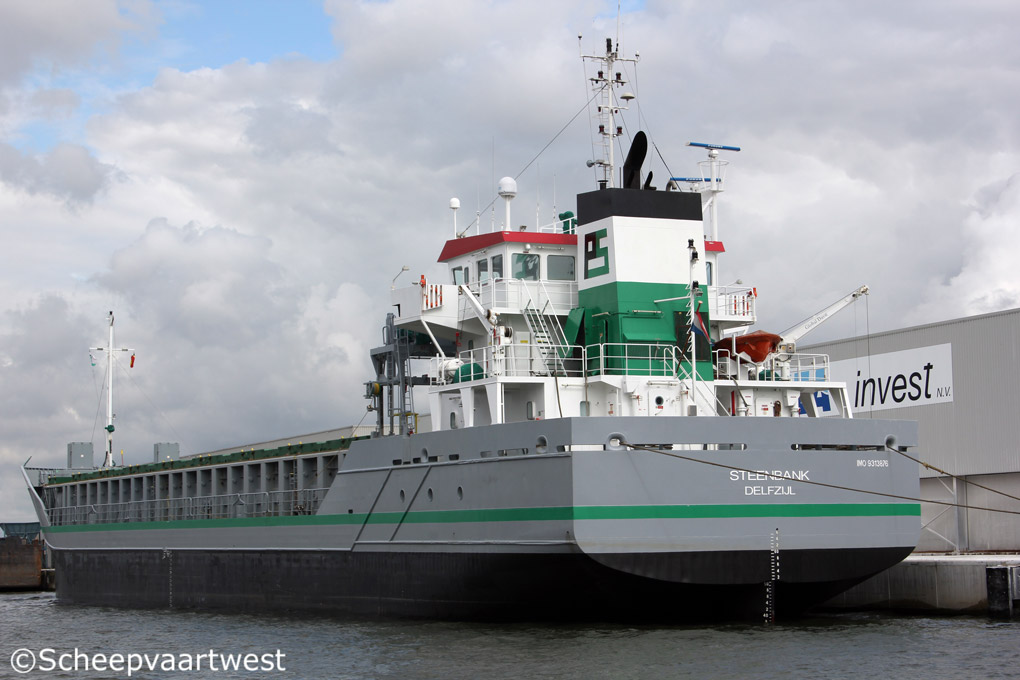

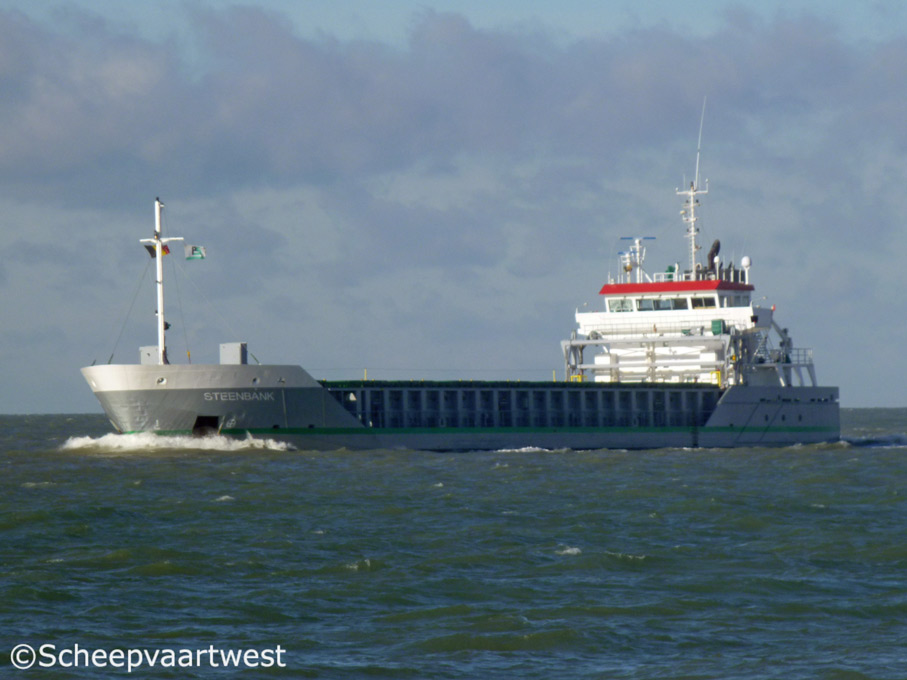

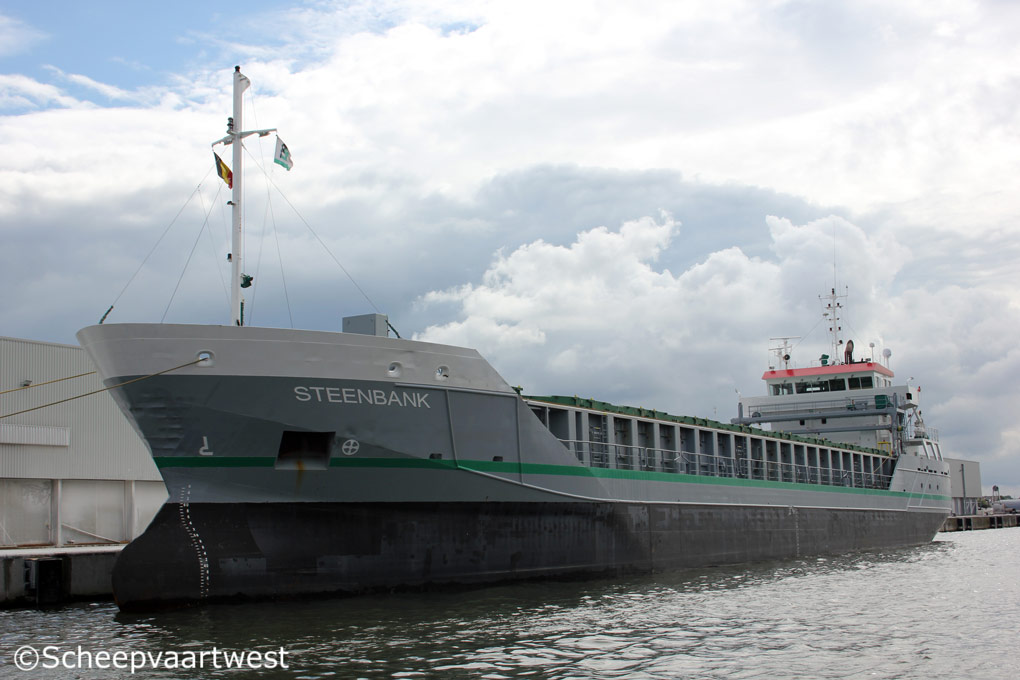

Steenbank 03   Steenbank 01   Steenbank 02
Westerschelde 26/09/12 Antwerpen 15/06/12 Antwerpen 15/06/12



Name

STEENBANK

Type

General cargo ship - heavy cargo - Container ship

IMO-number

9313876

Call sign

PHDG

Flag

The Netherlands

Port of registry

Delfzijl

GT

2.999 t

DWT

Summer: 4.300 t

NT

1.643 t

Number of 20ft containers

144

Length

89,78 m overall

84,97 m between perpendiculars

Breadth

14,00 m extreme

Draught

5,95 m

Air draft

25,90 m in ballast

Depth

7,50 m moulded

Speed

Service: 11,5 knots

Max: 14,5 knots

Built

2005

Keel laid

05/11/2004

Lunch date

13/05/2005

Date of completion

16/06/2005

Builder

Ferus Smit Leer GmbH

Leer

Germany

Yard number

355

Hull material

Steel

Hull type

Double skinned

Watertight compartments

6

Movable bulkheads

2

Number of decks

1

Main engine

1x Caterpillar/MaK 8M25 - 4 stroke single acting 8 cylinder 250 x 400 mm combustion engine 2.640 kW / 3.587 hp at 750 rpm

Built: 2004

Builder: MaK Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x Screw propeller controllable pitch - aft at 200 rpm

Electric installation

Power voltage: 400 Volt

Lighting voltage: 230 Volt

Frequency:50 Hz

Shaft generators

1x 425 kVA - 340 kW

Generators

2x Scania DI-9 60M diesel generatorsets each 235 kVA - 188 kW - 280 hp

Bow thruster

275 kW

Number of holds

1x Fully box, open hatch

59,50 x 11,50 x 9,00 m

Cargo hold capacity

215.000 ft³ / 5.976,2 m³

Hold ventilation

About 6 air changes per hour basis empty hold

Vessel is equipped with dehumidifier system

Number of hatches

1

59,40 x 11,50 m

Hatch type

Pontoon hatch panels by gantry crane on coaming rails

Max permitted loads

Tanktop: 15,0 t/m²

Tank capacities

MGO: 376 m³

Water ballast: 1.828 m³

Fresh water: 45 m³

Gas oil: 45 m³

Accommodation

Comfortable accommodation for 7 persons, all cabins air-conditioned and equipped with private sanitary units

Manager

Wagenborg Shipping B.V.

Marktstraat 10

9934 KK Delfzijl

The Netherlands

ISM manager

Pot Scheepvaart

Handelskade west 28

Delfzijl

The Netherlands

Registered owner

Bankship IV B.V

Delfzijl

The Netherlands

Latest data adjustment

07 May 2021
