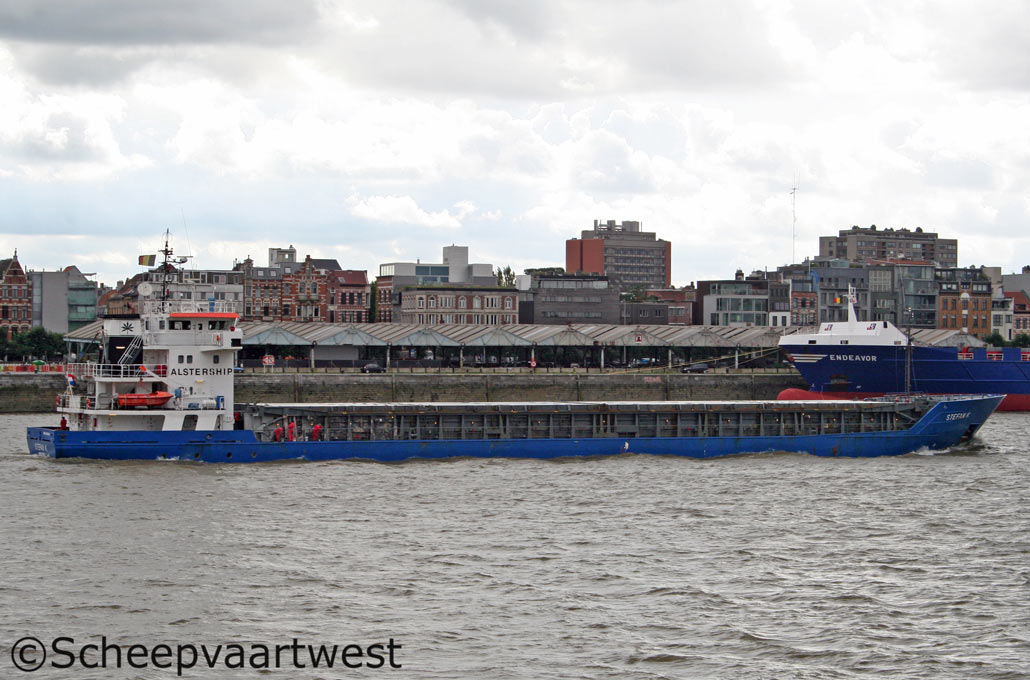

Stefan K 01
Antwerpen 27 August 2011

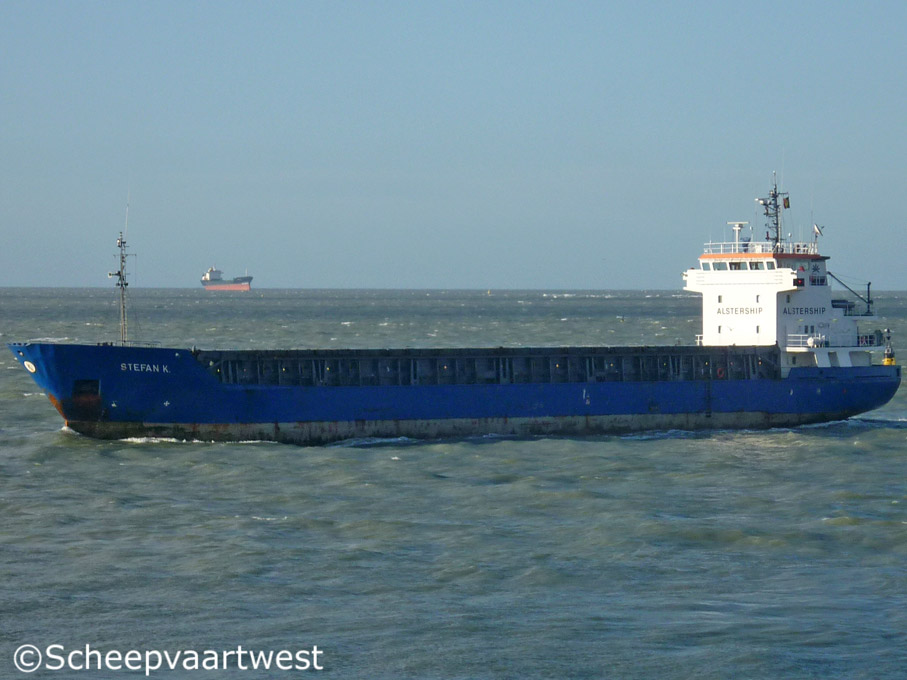

Stefan K 03
Westerschelde 18/12/11



Name

STEFAN K

Type

General cargo - Boxshaped single decker - Multi-purpose
Equipped for carriage of containers

IMO-number

9006394

Call sign

PBER

Flag

The Netherlands

Port of registry

Delfzijl

Previous flag

1995 - 2001 Austria

GT

2.449 t

DWT

Summer: 3.710 t

NT

1.380 t

Number of 20ft containers

180

Length

87,90 m overall

81,84 m between perpendiculars

Breadth

12,80 m moulded

Draught

Max: 5,47 m

Forecastle

6,40 m

Depth

7,10 m moulded

Speed

Max: 12,0 knots

Service: 10,5 knots

Built

1995

Keel laid

14/12/1993

Launch date

02/12/1994

Date of completion

04/1995

Builder

Peene-Werft Werften GmbH
Peene Werft
Schiffbauerdamm 1
17438 Wolgast
Federal Republic of Germany

Yard number

414

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom (e.g. interrupted in way of machinery space)

Watertight bulkheads

4 - Which 2 movable bulkheads

Continuous decks

1

Main engine

1x Deutz SBV 8M628 - 4 stroke single acting 8 cylinder 240 x 280 mm combustion engine 1.500 kW / 2.050 hp at 900 rpm

Year of Manufacture: 1994

Manufacturer: Deutz MWM Motoren-Werke Mannheim AG

Mannheim

Federal Republic of Germany

Propeller

1x Solid propeller - aft at 228 rpm

Boiler

1x Water heater, oil fired - 4,0 bar

Heating surface: 4,71 m²

Year of manufacture: 1994

Electric installations

1x Plant 380/220 V - 210 kVA

1x Plant 380/220 V - 210 kVA

1x Plant 380 V - 72 kVA

Generators

2x Main diesel generatorsets each 210 kVA

Emergency generator

1x Diesel generatorset 72 kVA

Compressed air receivers

2x Receivers each 125 litres - 30,0 bar

1x Receive r30 litres - 30,0 bar

Bow thruster

1x Fixed pitch propeller SCHOTTEL - 184 kW / 250 hp, forward

Cargo capacity

Grain:4.666 m³ / 166.642 ft³

Bales: 4.635 m³

Hold

1

Dimension: 56,55 x 10,20 x 7,99 m

Hatch

1

Dimension: 56,55 x 10,20 m

Type of hatch covers

Kvaerner Multifold

Tank capacities

Fuel: 122,8 m³

Fresh water: 57 m³

Water ballast: 1.642 m³

Hold ventilation

6x Air exchanges / hour

Anchor equipment

3x Anchors weight each 1.740 kg

Chain length: 440,00 m

Manager

Flagship Management B.V.

Farmsum
The Netherlands

Previous managers

1995 - 2001 Oesterreichischer Lloyd GmbH & Co. KG, Vienna - Austria

Owner

Rederij K & T Holland C.V.
Farmsum, Groningen
The Netherlands

Previous owner

1995 - 2001 Krohn Schiffahrts GmbH, Wien - Austria

2001 - 2015 Rufinia Beheer B.V., Delfzijl,- The Netherlands

2015 - 2017 Lian Shipping B.V., Appingedam - The Netherlands

Renamed

08/2019 Stefany

Republic of panama, Panama City - Call sign: 3FNW7

Manager & owner: IB Carriers Corp., Majuro - Marshall Islands

Renamed at: Novorossiejsk - Russia

Latest data adjustment

11 November 2019
