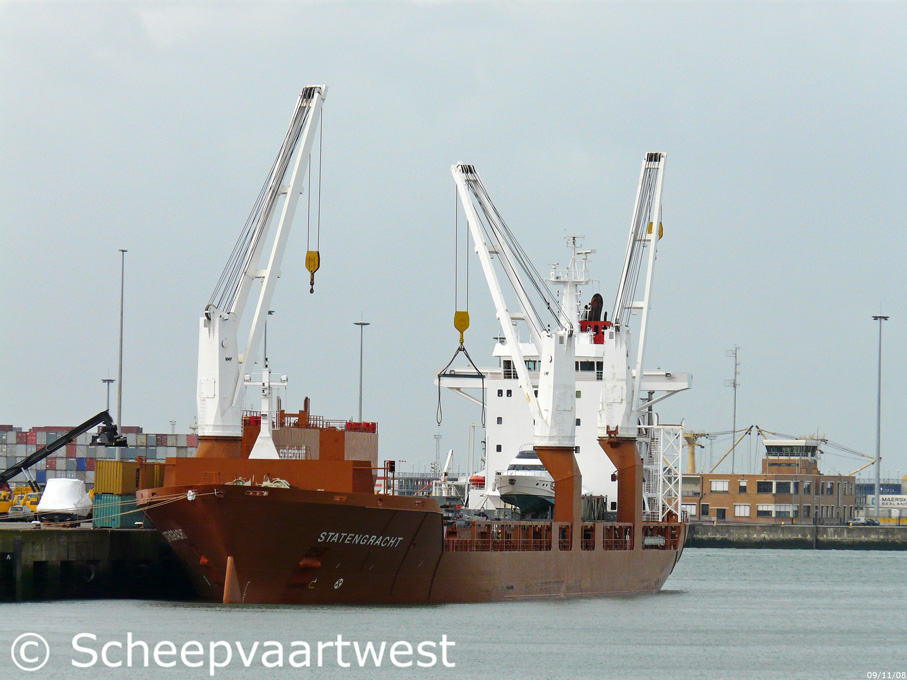

Statengracht 05
Zeebrugge 09 November 2008



Name

STATENGRACHT

Type

General cargo ship
Strengthened for heavy cargoes, container cargoes in holds, on upperdeck and upperdeck hatchcovers, timber deck cargoes

IMO-number

9288045

Call sign

PHAQ

Flag

The Netherlands

Port of registry

Amsterdam

GT

16.641 t

DWT

Summer: 21.250 t

NT

6.730 t

Length

172,00 m overall
160.70 m between perpendiculars

Breadth

25,30 m overall
25,20 m moulded

Number of 20ft containers

In hold: 478
On deck: 649
Total: 1.127

Power for reefer connections

Up to 850 kW

Draught

Summer: 10,73 m

Freeboard

4.000 mm

Depth

16,40 m

Speed

19,1 knots

Built

2004

Date of completion

07.2004

Builder

Stocznia Szczecinska Nowa
Szczecin
Poland

Yard number

5875

Hull type

Single hull

Main engine

Wärtsilä - 16.400 hp / 12.060 kW

Number of screws

1

Bow thruster

1.155 hp / 850 kW

Cargo capacity

Hold 0: 430 m³
Hold 1: 4.565 m³
Hold 2/3: 18.820 m³
Total: 23.815 m³
If tween deck installed: 1.620 m³ less in holds

Floorspace

Tank top: 1.620 m²
Tween deck: 1.840 m²
Weather deck: 2.400 m²

Hatches

Weather deck:
No 0: 6,4 x 7,6 m
No 1: 25,6 x 17,8/15,2 m
No 2: 38,4 x 17,8 m
No 3: 32,0 x 20,4 m
Tween deck:
No 1: 25,6 x 17,8/15,2/10,1 m
No 2: 38,4 x 17,8 m
Under crossbeam: 4,2 x 17,8 m
No 3: 32,0 x 20,4 m
Consisting of 16 steel pontoons:
1 of 6,35 x 17,72 m 2 of 6,37 x 10,02 m
1 of 6,37 x 15,12 m 5 of 6,37 x 17,72 m
2 of 3,17 x 17,72 m 4 of 6,37 x 20,32 m
1 of 4,20 x 17,72 m

Maximum load

Weather deck hatch covers: 2,0 t/m²
Tween deck hatch covers:
Hatchway 1: 7,5 t/m²
Hatchway 2: 5,5 t/m²
Hatchway 3: 5,0 t/m²
Tank top: 20,0 t/m²

Deck cranes

3x 120 t SWL/14 m and 55 t SWL/30 m
Position:2x PS (after and mid) and 1 x SB (forward)

Bunker capacity

Fuel oil: 1.635 m³
Diesel oil: 220 m³

Ballast capacity

7.750 m³

Crew

17

Manager

Spliethoff´s Bevrachtingskantoor
Radarweg 36
1042 AA Amsterdam
The Netherlands

Owner

C.V. S.O. Klippergracht & C.V. S.O.
Koningsgracht
Amsterdam
The Netherlands
