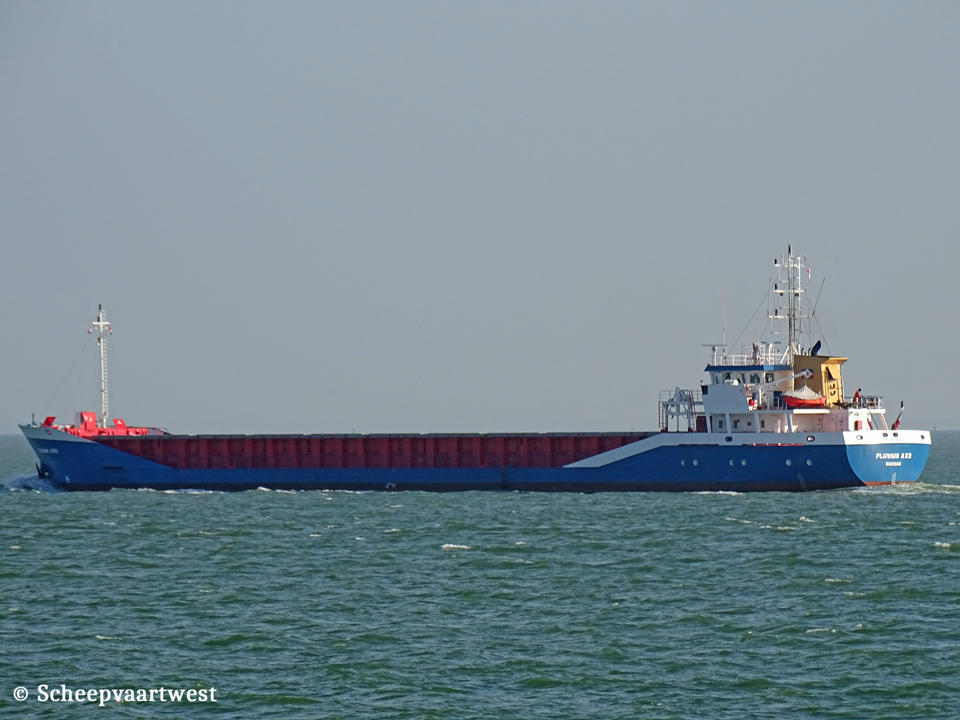

Fluvius Ace - IMO 9163623

Name

FLUVIUS AXE

Previous names

04/ 1998 - 05/2012 Arklow Sea

05/ 2012 - 01/2014 BBS Sea

01/ 2014 - 09/2014 PS Sea

Type

General cargo ship - Heavycargo

IMO-number

9163623

Call sign

8PBN5

Flag

Barbados

Port of registry

Bridgetown

Previous flags

04/1998 - 01/2014 The Netherlands, Zaandam - Call sign: PFTI

01/2014 - 12/2021 Bahamas, Nassau - Call sign:C6AZ6

12/2021 - 05/ 2022 The Netherlands, Delfzijl - Call sign: PIEK

GT

2.316 t

DWT

Summer: 3.211 t

DWCC

Summer: 3.000 t

Winter: 2.900 t

NT

1.295 t

Displacement

4.351 t

Number of 20ft containers

On hatch: 40

In hold: 114

Total: 154

Length

89,98 m overall

84,99 m between perpendiculars

Breadth

12,50 m moulded

Draught

Summer: 4,65 m

Air draft

Min: 19,80 m

Freeboard

1.180 mm

Depth

6,00 m moulded

Speed

10,5 knots

Built

1998

Keel laid

06/10/1997

Launch date

07/03/1998

Date of completion

31/03/1998

Builder

Barkmeijer Shipyard BV

Stroobos

The Netherlands

Yard number

286

Hull material

Steel

Hull type

Double hull

Movable bulkheads

2x Portable may be placed in 6 positions for cargo separation

Continuous decks

1

Main engine

1x MaK 8M20 - 4 stroke single acting 8 cylinder 200 x 300 mm combustion engine 1.360 kW / 1.847 hp at 1.000 rpm with Lohmann & Stolterfoht 4:1 reverse reduction gear

Build: 1997

Builder: Maschinenbau Kiel A.G., Kiel - German Federal Republic

Propellers

1x Screw propeller solid - aft at 230 rpm

Electric installations

Power voltage: 380 V

Lighting voltage: 220 V

Frequency: 50 Hz

Generators

2x Valmet 620DSG diesel engines each 110 kW connected with Stamford UCM274 E23 generators each 112 kVA 50 Hz

Emergency generator

1x Valmet 320DSG diesel engine 42 kW connected with Stamford UCM224 E47 generator 47,5 kVA 50 Hz

Bow thruster

1x 200 kW

Number of cargo holds

1

63,00 x 10,20 x 7,43 m

Cargo hold capacity

Grain & bale:

4.723,02 m³ / 166.792,0 ft³ without bulkheads

4.669,00 m³ / 164.884,2 ft³ with bulkheads

Hatchways

1

63,00 x 10,20 m

Hatches cover type

Roden Staal pontoon system

Max permitted loads

Hatch covers: 1,6 t/m²

Tanktop: 14,0 t/m²

Tank capacities

Ballast: 1.586,30 m³

Fuel: 92,50 m³

Fresh water: 56,20 m³

Lub oil: 3,56 m³

Manager

Amasus Shipping B.V.

Zeevaartschool Abel Tasman

Abel Tasmanplein 4

9934 GD Delfzijl

The Nederland

Previous managers

• 04/1998 - 05/2012 Arklow Shipping Nederland B.V., Rotterdam - The Netherlands

• 05/2012 - 01/2014 Vaage Ship Management AS, Bergen - Norway

• 01/2014 - 09/2014 Pillar Shipping SCS (Hoyergruppen AS, Porsgrunn), Luxembourg - G.D. Luxembourg

Registered owner

Fluvius Axe BV

Rondeboslaan 36

9936 BK, Farmsum (Delfzijl)

The Netherlands

Previous named & owners

• 04/1998 - 2001 Arklow Sea - Rederij Makkinga B.V., Zaandam - The Netherlands

• 2001 - 07/2006 Arklow Sea - Scheepvaart Maatschappij Zaanland B.V., Zaandam - The Netherlands

• 07/2006 - 12/2007 Arklow Sea - Arklow Shipping Nederland B.V., Rotterdam - The Netherlands

• 12/2007 - 05/2012 Arklow Sea - BBS Bulk 1 KS, Bergen - Norway

• 05/2012 - 01/2014 BBS Sea - BBS Bulk 1 KS, Bergen - Norway

• 01/2014 - 09/2014 PS Sea - Pillar Shipping SCS (Hoyergruppen AS, Porsgrunn), Luxembourg - G.D. Luxembourg

• 09/2014 - 12/2021 Fluvius Axe - Fluvius Axe Ltd., Nassau - Bahamas

• 12/2021 - 05/2022 Fluvius Axe - Fluvius Axe B.V., Delfzijl, Groningen - The Netherlands

Latest data adjustment

31 October 2023
