| Westerschelde 26 May 2018 |
|
Name |

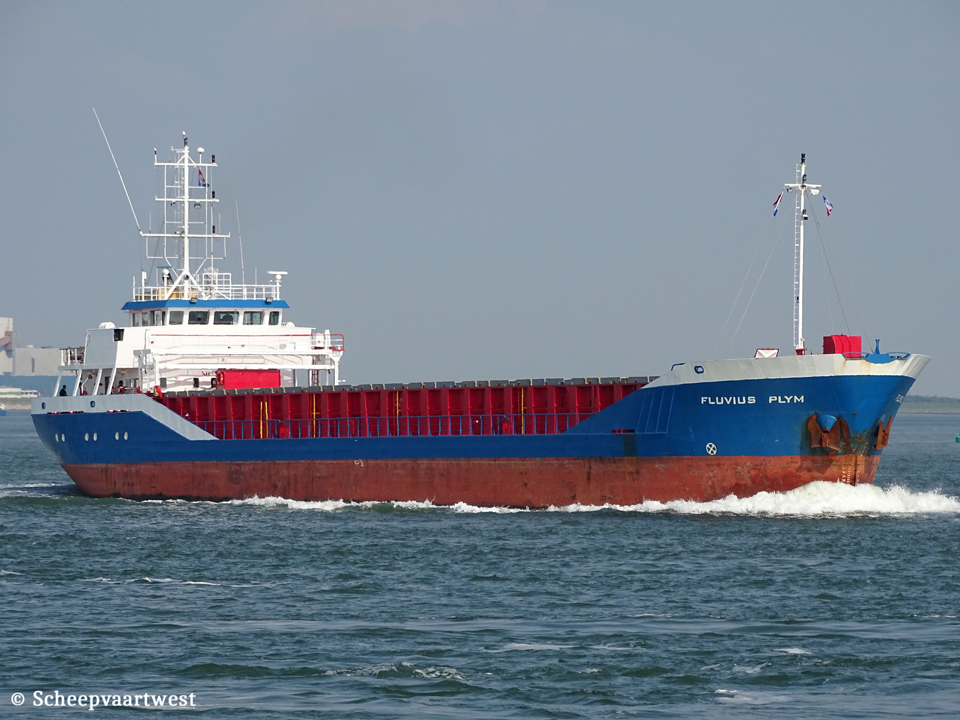

FLUVIUS PLYM |
|
Previous names |
1998 - 2012 Arklow Sand 2012 - 2014 BBS Sand 2004 - 2014 PS Sand |
|
Type |
General Cargo - Heavy cargo |
|
IMO-number |
9163611 |
|
Call sign |
8PBN7 |
|
Flag |
Barbados |
|
Port of registry |
Bridgetown |
|
Previous flags |
01/1998 - 01/2014 The Netherlands, Zaandam - Call sign: PDIO 01/2014 - 12/2021 Bahamas, Nassau - Call sign: C6AZ5 12/2021 - 06/2022 The Netherlands, Delfzijl - Call sign: PEIP |
|
GT |
2.316 t |
|
DWT |
3.211 t |
|
DWCC |
Summer: 3.000 t Winter: 2.900 t |
|
NT |
1.295 t |
|
Displacement |
4.351 t |
|
Number of 20ft containers |
On hatch: 40 In hold: 114 Total: 154 |
|
Length |
89,99 m overall 84,99 m between perpendiculars |
|
Breadth |
12,50 m moulded |
|
Draught |
Summer: 4,65 m |
|
Keel to mast end |
19,80 m |
|
Air draft |
21,50 m |
|
Depth |
6,00 m |
|
Freeboard |
1.180 mm |
|
Depth |
6,00 m moulded |
|
Speed |
10,5 knots |
|
Built |
1998 |
|
Keel laid |
03/04/1997 |
|
Launch date |
21/12/1997 |
|
Date of completion |
06/01/1998 |
|
Builder |
Barkmeijer Shipyard BV Stroobos The Netherlands |
|
Yard number |
281 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Movable bulkheads |
2x Portable bulkheads may be placed in 6 positions for cargo separation |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M20 - 4 stoke single acting 8 cylinder 200 x 300 mm combustion engine 1.360 kW / 1.847 bhp at 1.000 rpm with Lohmann & Stolterfohl 4:1 reverse reduction gear Built: 1997 Manufacturer: Maschinenbau Kiel A.G., Kiel - Germany |
|
Propellers |
1x Fixed pitch propeller - aft at 230 rpm |
|
Electric installations |
Power voltage: 380 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Generators |
2x Valmet 620DSG diesel engines each 110 kW connected with 2 Stamford UCM274 E23 generators each 112 kVA 50 Hz |
|
Emergency generator |
1x Valmet 320DSG diesel engine 42 kW connected with Stamford UCM244 E47 generator 47,5 kVA 50 Hz |
|
Bow thruster |
1x 200 kW |
|
Number of cargo holds |
1 63,00 x 10,20 x 7,43 m |
|
Cargo hold capacity |
Grain & bale: 4.723 m³ / 162.710 ft³ |
|
Number of hatches |
1 63,00 x 10,20 m |
|
Hatch type |
Roden Staal pontoon system |
|
Max permitted loads |
On hatches: 1,6 t/m² Tanktop: 14,0 t/m² |
|
Tank capacities |
Fuel: 92,50 m³ Fresh water: 56,20 m³ Lub oil: 3,56 m³ Ballast: 1.586,3 m³ |
|
Lifting equipment |
1x Gantry crane- SWL 13,5 t |
|
Crew |
7 |
|
Manager |
Amasus Shipping B.V. Abel Tasmanplein 4 9934 GD Delfzijl The Netherlands |
|
Previous managers |
1998 - 2012 Arklow Shipping Nederland B.V., Rotterdam - The Netherlands 2012 - 2014 Vaage Ship Management AS, Bergen - Norway 2041 - 2014 Pillar Shipping SCS (Hoyergruppen AS, Porsgrunn), Luxembourg - G.D. Luxembourg 2014 - 2021 Exe Shipping Ltd., Exeter - United kingdom |
|
Registered owner |
Fluvius Plym B.V. Delfzijl The Netherlands |
|
Previous names & owners |
1998 - 2001 Arklow Sand - Rederij Sonnega B.V., Zaandam, Noord-Holland - The Netherlands 2001 - 2004 Arklow Sand - Scheepvaart Maatschappij Eemsland B.V., Zaandam - The Netherlands 2004 - 2012 Arklow Sand - BBS Bulk 1 KS, Bergen - Norway 2012 - 2014 BBS Sand - BBS Bulk 1 KS, Bergen - Norway 2014 - 2014 PS Sand - Pillar Shipping SCS (Hoyergruppen AS, Porsgrunn), Luxembourg - G.D. Luxembourg 2014 - 2021 Fluvius Plym - Fluvius Plym B.V., Nassau - Bahamas |
|
Latest data adjustment |
09 December 2022 |
