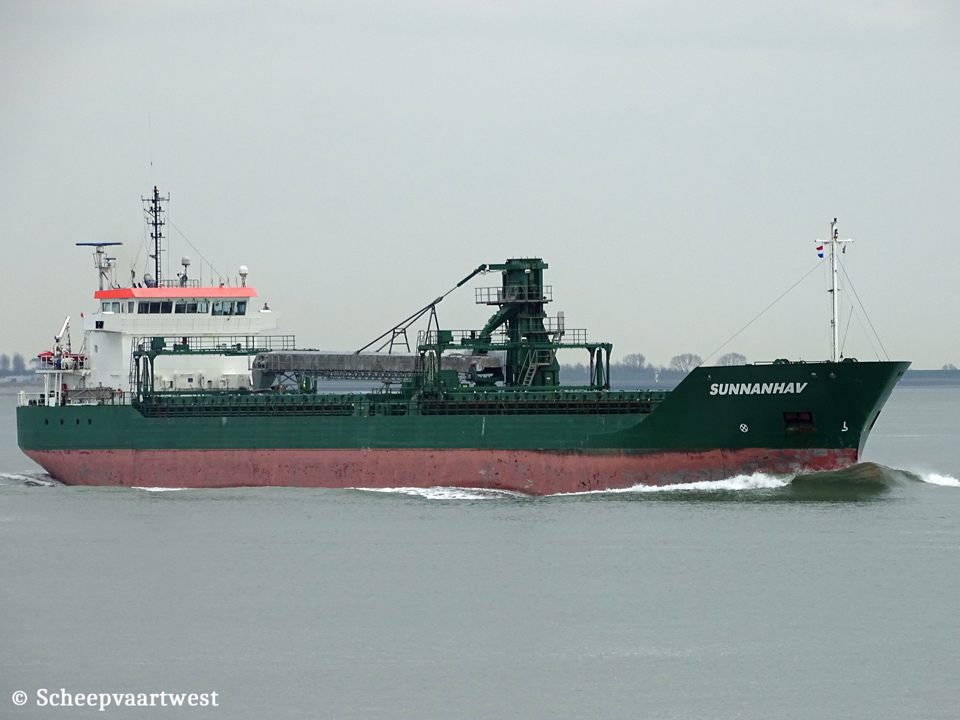

Sunnanhav IMO 9341160 01
Westerschelde 27 March 2019



Name

SUNNANHAV

Type

General cargo ship - Selfunloader

IMO-number

9341160

Call sign

OZ2103

Flag

Faeroe Islands

Port of registry

Tórshavn

Previous flags

Norway - Call sign LAJM6

GT

5.325 t

DWT

Summer: 9.402 t

Winter: 9.118 t

NT

2.572 t

Length

113,50 m overall

106,53 m between perpendiculars

Breadth

15,85 m

Draught

Summer: 7,84 m

Winter: 7,67 m

Air draft

28,20 m

Freeboard

2.628 mm

Depth

10,46 m

Speed

13,0 knots

Built

2006

Date of completion

14/07/2006

Builder

Scheepswerf Ferus Smit B.V.

Leer

Germany

Yard number

373

Hull material

Steel

Hull type

Single hull

Watertight compartments

5

Continuous decks

1

Main engine

1x Wärtsilä 8L32- 4 stroke 8 cylinder 320 x 400 mm combustion engine 3.840 kW / 5.184 hp at 720 rpm

Build: 2006

Builder: Wärtsilä Finland Oy, Vaasa - Finland

Propellers

1x Screw propeller controllable pitch - aft at 149,0 rpm

Diameter: 4.100 mm

Generators

2x Volvo Penta D12-AUX main diesel generatorsets each 438 kVA - 350 kW - 503 hp

Emergency generator

1x Diesel generatorset 92 kVA - 74 kW - 110 hp

Bow thruster

1x Jastram electric motor variable bow thruster

Output: 340 kW / 460 bhp

Number of holds

2

Hold 1: 36,50 x 13,10 x 10,10 m

Hold 2: 36,50 x 13,10 x 10,10 m

Cargo hold capacity

Hold 1: 4.602 m³

Hold 2: 4.618 m³

Bale: 9.220 m³

Grain: 9.551 m³

Number of hatches

2

Hatch 1: 33,75 x 13,10 m

Hatch 2 : 33,75 x 13,10 m

Discharging equipment

  • Distance from waterline to outlet of boom conveyor in top position: 14,80 m

  • Distance from waterline to outlet of boom conveyor in 90°: 4,40 m

  • Boom conveyor outreach at top position from ship side, starboard side: 22,00 m

  • Boom conveyor outreach in 90° angle from ship side, starboard side: abt. 25,00 m

  • Max elevation boom conveyor: 22 °

  • Max fraction size allowed for self discharging: 45 mm

  • Discharging capacity boom conveyor: abt. 500 t/hour

Tank capacities

HFO: 362,5 m³

MGO: 73 m³

Ballast water: 4.002 m³

Lub oil: 20 m³

Fresh water: 41 m³

Crew size

13

Commerical manager

Erik Thun AB

Ostra Hamnen 7

SE-531 32 Lidkoping

Sweden

ISM manager

Thun Shipmanagement

Ostra Hamnen 7

SE-531 32 Lidkoping

Sweden

Registered owner

Erik Thun AB

Ostra Hamnen 7

SE-531 32 Lidkoping

Sweden

Latest data adjustment

01 January 2022
