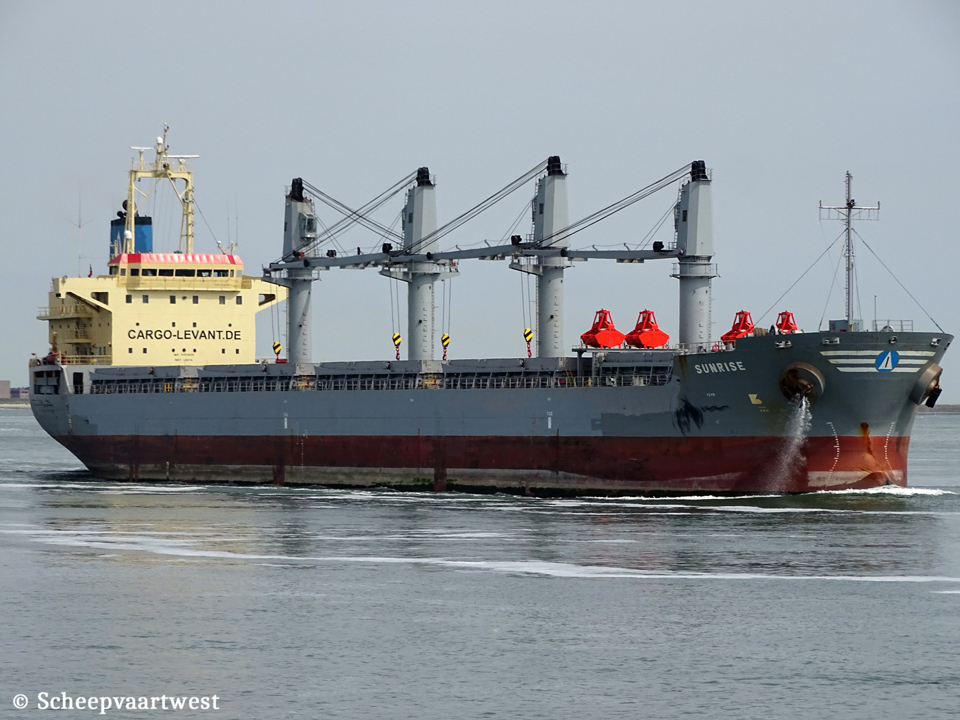

Sunrise IMO 9393620 04

Westerschelde 23 May 2019

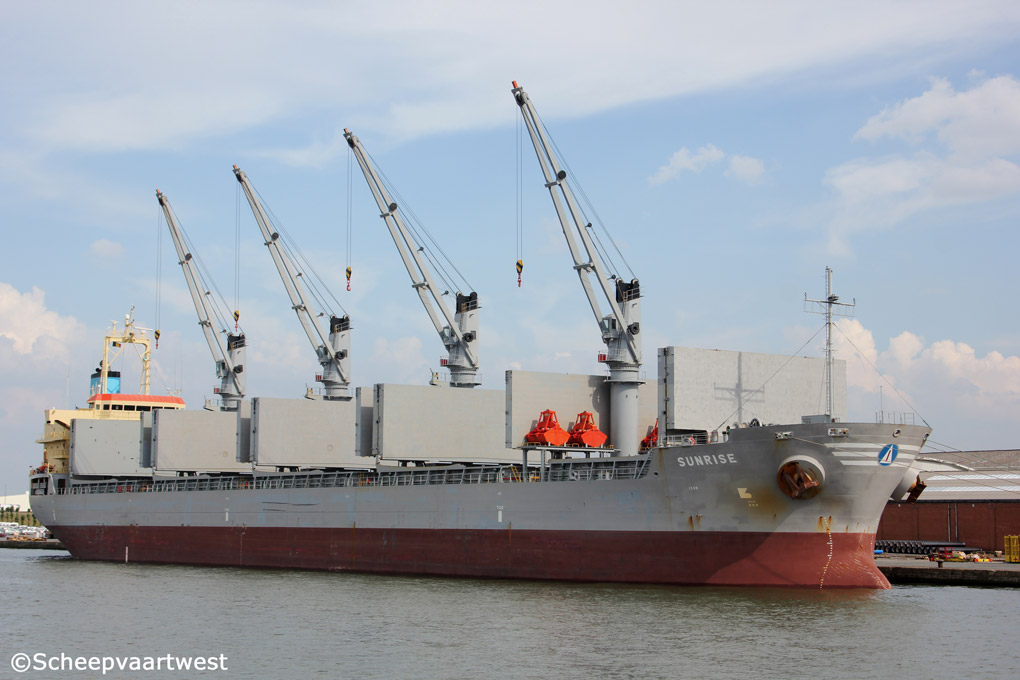

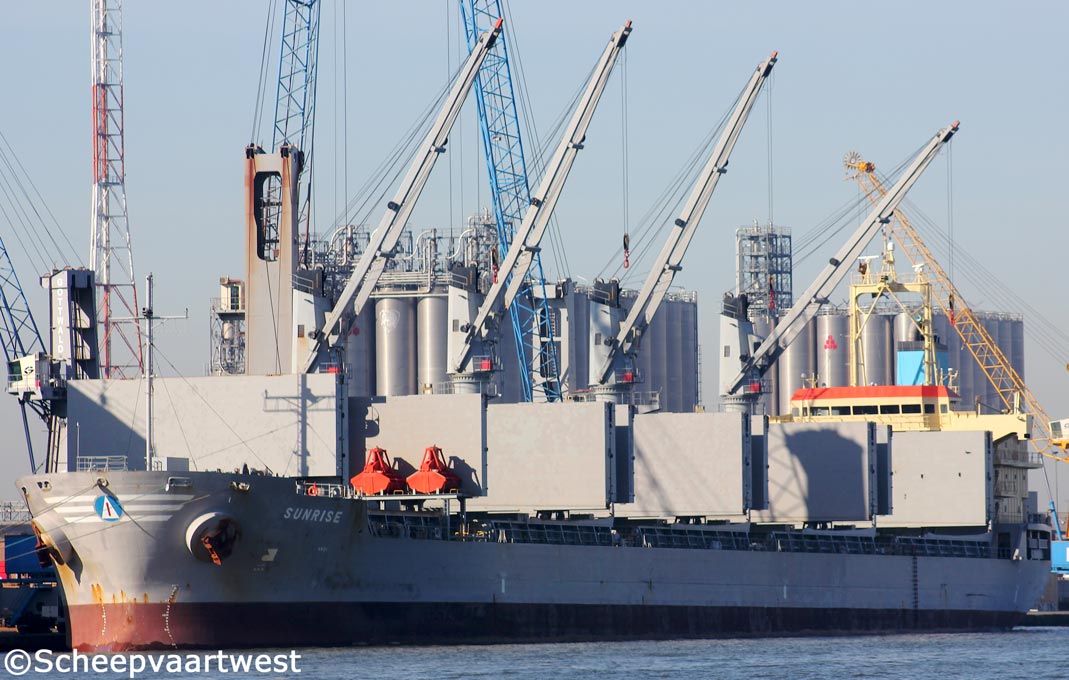

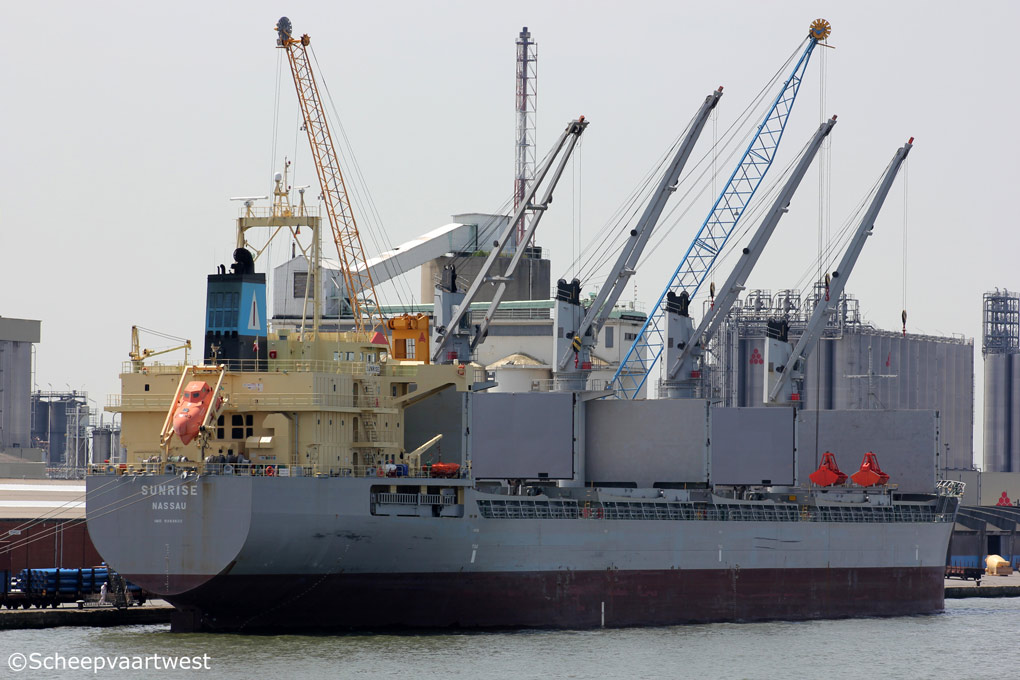

Sunrise 01   Sunrise 02   Sunrise 03
Antwerpen 24/07/14   Antwerpen 12/03/15 Antwerpen 22/07/14



Name

SUNRISE

Type

Bulk carrier - Strengthened for heavy cargo loading - Handysize

IMO-number

9393620

Call sign

C6XM3

Flag

Commonwealth of the Bahamas

Port of registry

Nassau

GT

22.697 t registered

Suez: 23.071,98 t

DWT

Summer: 37.268 t

NT

12.674 t registered

Panama: 18.913 t

Suez: 20.999,08 t

Length

177,84 m overall

Breadth

28,60 m moulded

Draught

10,85 m

Moulded LxBxD

169,80 x 28,60 x 15,00 m

Registered LxBxD

170,58 x 28,60 x 15,00 m

Freeboard

4.190 mm

Depth

15,00 m moulded

Speed

14,5 knots

Built

2009

Keel laid

28/08/2008

Launch date

31/10/2008

Delivery date

16/01/2009

Builder

Saiki Heavy Industries Co., Ltd.

Saiki

Japan

Yard number

1173

Hull material

High strength steel

Ordinary strength steel

Hull type

Single hull

Number of decks

1

Bulkhead

Non tight: 8

Water tight: 48

Oil tight: 6

Main engine

1x Mitsubishi/Akasaka Diesel 6UEC52LA - 2 stroke single acting 6 cylinder 520 x 1.600 mm combustion engine 7.080 kW / 9.626 bhp at 133,0 rpm

Manufacturer: Akasaka Diesels Limited

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 452 mm

Propellers

1x Fixed pitch propeller - aft at 130,0 rpm

Manufacturer: Nakashima Propeller Co., Ltd. Head Office & Works

Boilers

1x Auxiliary vertical composite boiler - 6,9 bar

Evaporation: 2,14 t/h

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Generators

3x YANMAR 6N18(AL)-DV diesel generatorsets each 563 kVA - 450 kW - 679 hp

Manufacturer: Nishishiba Electric Co., Ltd.

Emergency generators

1x Diesel generatorset 100 kVA - 80 kW - 143 hp

Number of holds

5

Holds capacity

Bales: 45.706,85 m³

Grain: 46.030,12 m³

Number of tanks

Ballast: 14

Lubricating Oil: 11

Fuel Oil: 9

Fresh Water: 6

Diesel Oil: 5

Sludge: 4

Chain: 2

Waste Water: 2

Tank capacities

Diesel Oil: 315,36 m³

Freshwater: 233,68 m³

Fuel Oil: 1.450,89 m³

Tank Ballast: 14.299,32 m³

Lub oil: 93,70 m³

Lifting equipment

1x Provision crane - SWL 1,5 t

Manufacture: Mansei Inc.

Cargo gear

4x Deck cranes - SWL 30,0 t each

Manufacture: Mitsubishi Heavy Industries Ltd.

Grabs

4x Electro hydraulic each 8,0 m³

Manufacture: Salzgitter Maschinnenbau AG

Crew size

25

ISM & commercial manager

Alberta Shipmanagement Ltd.

Ioannou Apostolopoulou 26, Chalandri 152 31 Athens

Greece

Registered owner

Westaway Investments Ltd.

Care of Alberta Shipmanagement Ltd.

Ioannou Apostolopoulou 26, Chalandri 152 31 Athens

Greece

Latest data adjustment

25 February 2022
