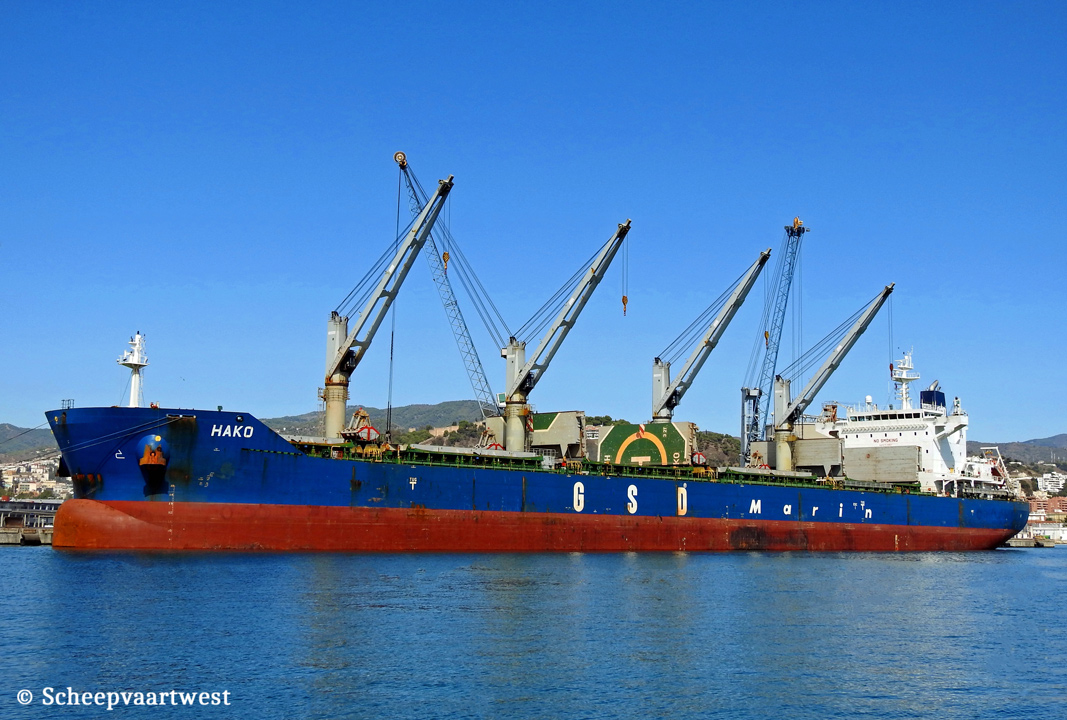

Hako IMO 9691814 01

Malaga, Spain 06 October 2021



Name

HAKO

Type

Bulk carrier

IMO-number

9691814

Call sign

9HA3527

Flag

Malta

Port of registry

Valletta

GT

35.873 t

DWT

Summer: 63.104 t

NT

21.218 t

Displacement

74.922 t

Length

199,97 m overall

193,74 m between perpendiculars

Breadth

32,26 m moulded

Draught

Summer: 13,32 m

Keel to mast end

47,50 m

Freeboard

5.227 mm

Depth

18,52 m moulded

Speed

Ballast: 14,0 knots

Laden: 13,5 knots

Eco: 12,5 knots

Built

2014

Keel laid

25/11/2013

Delivery date

23/06/2014

Builder

Yangzhou Dayang Shipbuilding Co., Ltd.

Wantou, Yangzhou, 225006

China

Yard number

DY4032

Hull material

High strength steel

Continuous decks

1

Main engine

1x MAN-B&W/Hudong 5S60ME-C8.1 - 5 cylinder 600 x 2?400 mm combustion engine Mcr 8.300 kW / 11.285 hp at 91,0 rpm

Manufacturer: Shanghai Hudong Heavy Machinery

Propellers

1x Fixed pitch propeller

Manufacturer: Nakashima Propeller Co., Ltd.

Generators

3x Daihatsu Anqing / 5DK-20e diesel engines each Mcr 660 kW connected with generators each 768 kVA

Manufacturer: Zhenjiang China Marine-Xiandai Gen. Co., Ltd.

Emergency generator

1x Diesel generatorsets 138 kW

Number of holds

5

Cargo hold capacity

Hold 1: 12.376,20 m³

Hold 2: 16.501,00 m³

Hold 3: 16.006,00 m³

Hold 4: 16.518,00 m³

Hold 5: 16.089,00 m³

Total:

Grain: 77.492,00 m³

Bale: 75.753,00 m³

Number of hatches

5

Max permitted loads

Tanktop:

Hold 1 & 3 and 5: 5,25 t/m²

Hold: 2 and 4: 20,0 t/m²

Upper deck: 3,5 t/m²

Number of pumps

2x Ballast pump each 1.000 m³/h

Tank capacities

Ballast: 34.848,1 m³

Lub oil: 180,1 m³

Fuel oil: 2.223,7 m³

Fresh water: 421,4 m³

Diesel oil: 218,0 m³

Lifting equipment

1x Electric slewing crane port - SWL 4,0 t

1x Electric Slewing crane Stbd - SWL 2,0 t

Manufacturer: Wuxi City Huaxing Marine Equipment Co., Ltd.

1x Engine room crane - SWL 4,0 t

Manufacturer: Jiangyin Oya Marine Machinery Co., Ltd.

Cargo gear

4x Electro-hydraulic deck cranes - SWL 36,0 t each

Manufacturer: CSSC - Nanjing Luzhou Machine Co., Ltd.

Crew

25

Commerical manager

GSD Denizcilik Gayrimenku (GSD Marin)

Kaptan Rifat Sokak 3, Aydinevler Mah, Maltepe

34854 Istanbul

Turkey

ISM manager

Fleet Management Ltd.

27th Floor, South Island Place, 8, Wong Chuk Hang Road, Southern

Hong Kong

China

Registered owner

Hako Maritime Ltd.

Care of GSD Denizcilik Gayrimenkul Insaat Sanayi ve Ticaret AS

Kaptan Rifat Sokak 3, Aydinevler Mah, Maltepe

34854 Istanbul

Turkey

Latest data adjustment

11 October 2011
