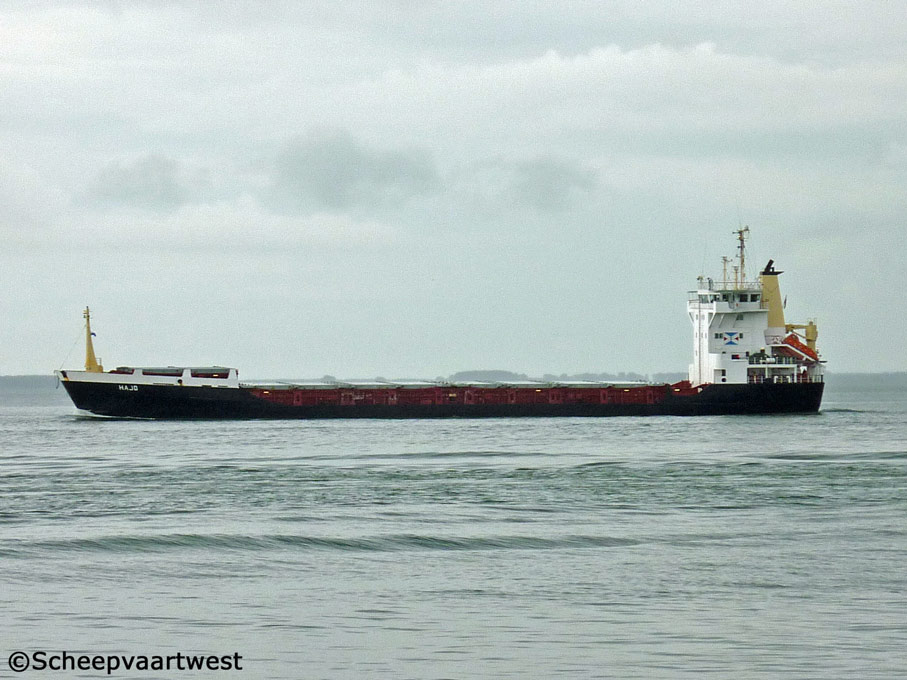

Hajo 03
Westerschelde 15 July 2012

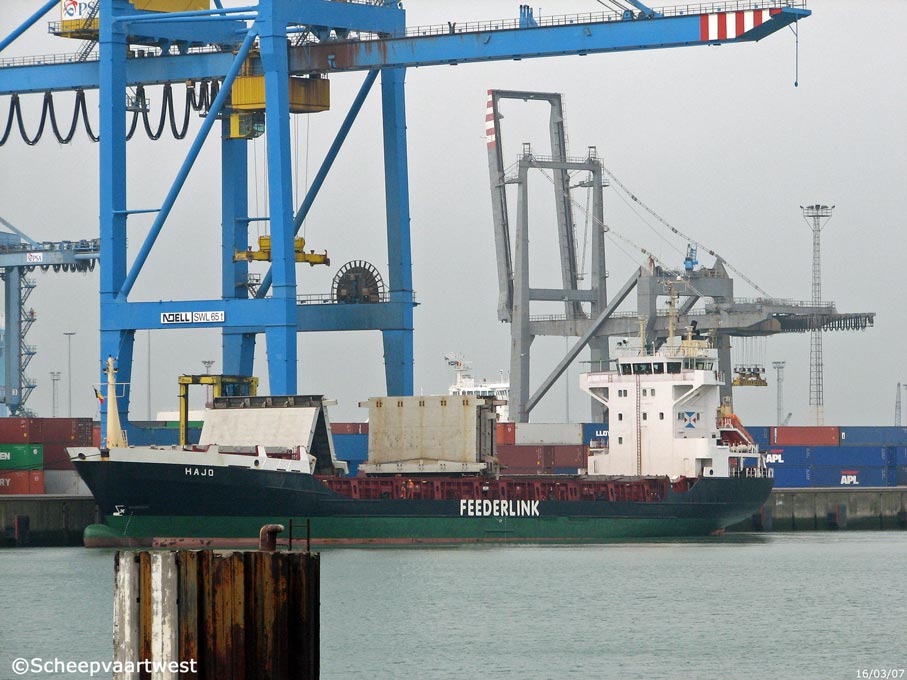

Hajo 01
Zeebrugge 16/06/07



Name

HAJO

Previous names

1991-1992 City Of Valletta
1992-1993 Nincop
1993-1995 Norasia Alexandria
1995-1995 Nincop
1995-1999 Opdr Tejo
1999-2002 Nincop
1002-2004 Portlink Sprinter
2004 Hajo

Type

General purpose bulk carrier fit for transport of goods of various cargo; also dangerous good - Equipped for carriage of containers

IMO-number

8913021

Call sign

V2UJ

Flag

Antigua & Barbuda

Previous flag

22.01.1996 Germany

Port of registry

St. John's

GT

3.818 t

DWT

Summer: 5.066 t
Winter: 4.879 t

NT

3.818 t

Weight light ship

1.996 t

Number of 20ft containers

372

Reefer point

50

Length

103,59 m overall
96,90 m between perpendiculars
97,34 m registered

Breadth

16,24 m overall
16,00 m registered

Draught

Summer: 6,074 m

Air draft

36,00 m

Forecastle

18,87 m

Poop

13,25 m

Freeboard

1.930 mm

Depth

8,00 m

Speed

14,5 knots

Line

Feederlink

Built

1991

Keel laid

06.04.1989

Launch date

12.12.1990

Date of completion

01.1991

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelder Fährdeich 88
21129 Hamburg
Federal Republic of Germany

Yard number

1044

Hull material

Shipbuilding steel (standard)

Hull type

Single hull
Partly double bottom

Watertight bulkheads

5

Continuous decks

2

Main engine

1x MaK 9 M 453 C - 4 stroke single acting 9 cylinder 320 x 420 mm diesel engine - 1.995 kW

Year of manufacture: 1990
Manufacturer: Krupp Mak Maschinenbau GmbH
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft

Electric installations

1x 380/220 V - 570 kVA
1x 380 V - 625 kVA
1x 380 V - 35 kVA

Shaft generator

1x 625 kVA / 500 kW

Generators

2x Main diesel generatorset each 285 kVA

Emergency generator

1x Diesel generatorset 35 kVA

Compressed air receivers

2x Receivers, each 250 litres - 30,0 bar
1x Receiver 20 litres - 10,0 bar

Bow thruster

1x Transverse thruster JASTRAM - 294 kW, forward

Cargo capacity

Grain: 6.788 m³
Bale: 6.615 m³

Hatch covers

Hydraulic folding type

Ballast capacity

1.882 m³

Anchor equipment

3x Anchors weight each 2.850 kg
Chain length: 495,00 m

Crew

9 + 6 passengers

Manager

Reederei Salge e.K.
Am Weserdeich 31b
26919 Brake
Federal Republic of Germany

Previous manager

Peter Döhle Schiffahrts-KG
Elbchaussee 370
22609 Hamburg
Federal Republic of Germany

Charterer

Peter Döhle Schiffahrts-KG
Elbchaussee 370
22609 Hamburg

Germany

Owner

Reederei Salge e.K.
Am Weserdeich 31b
26919 Brake
Federal Republic of Germany

Registration owner

M/V "Hajo" GmbH & Co. KG
Am Weserdeich 31b
26919 Brake
Germany

Previous owner

Globehelier Maritime Co. Ltd.
c/o Peter Döhle Schiffahrts-KG
Elbchaussee 370
22609 Hamburg
Federal Republic of Germany
