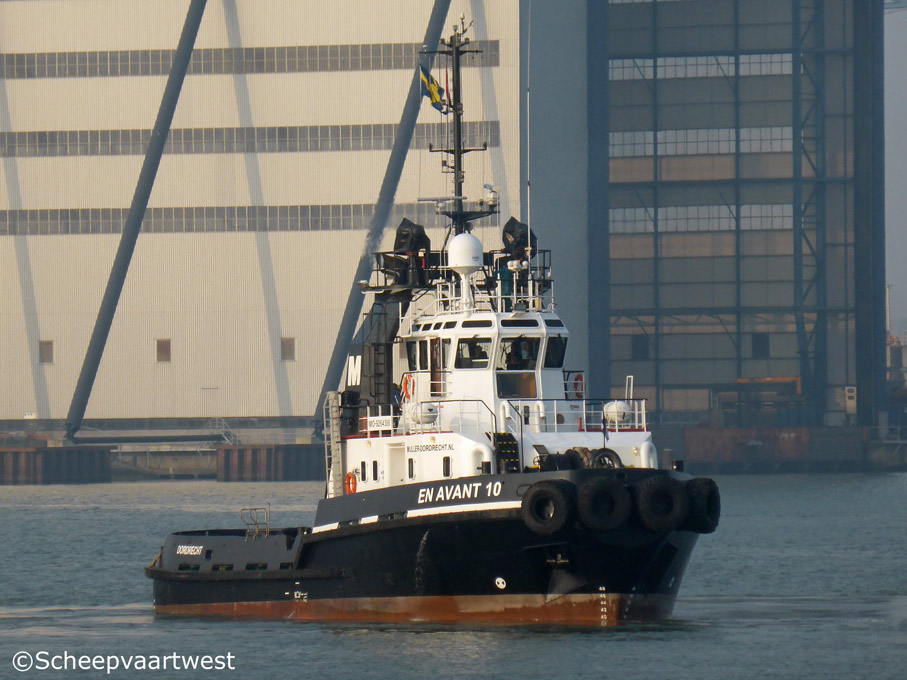

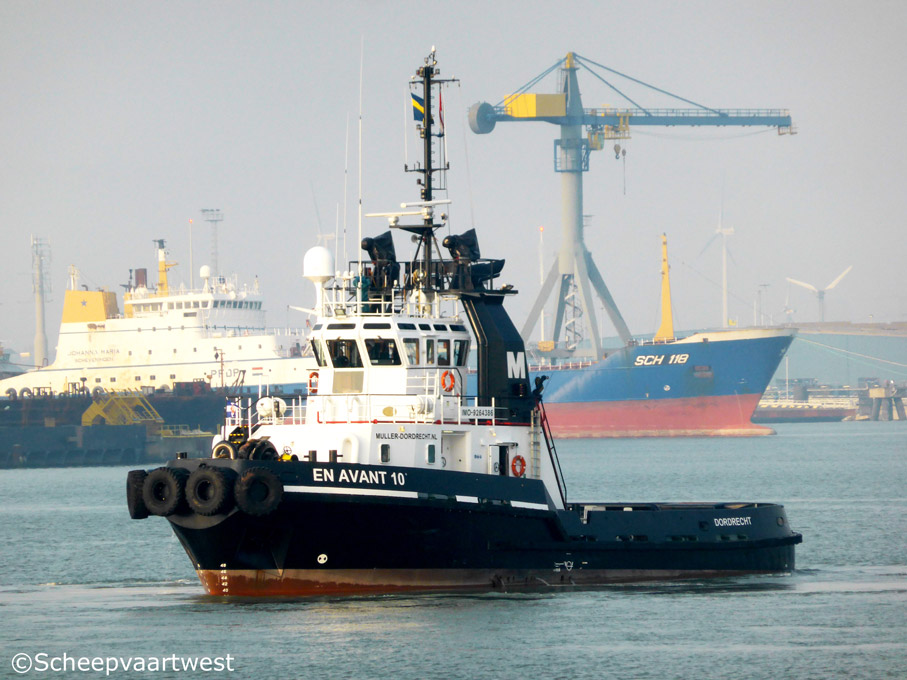

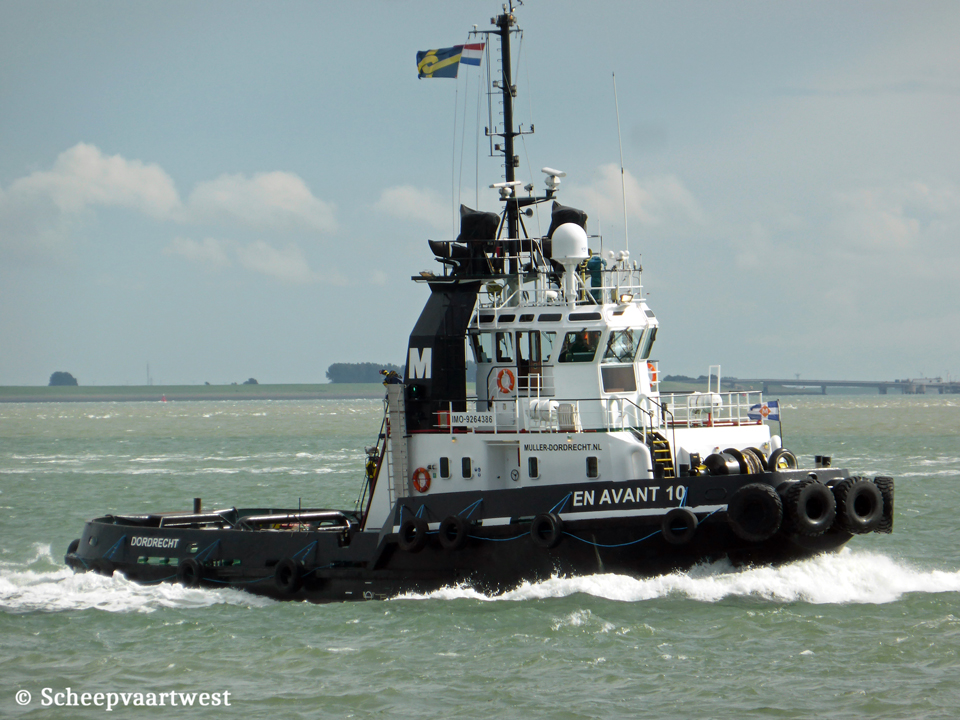

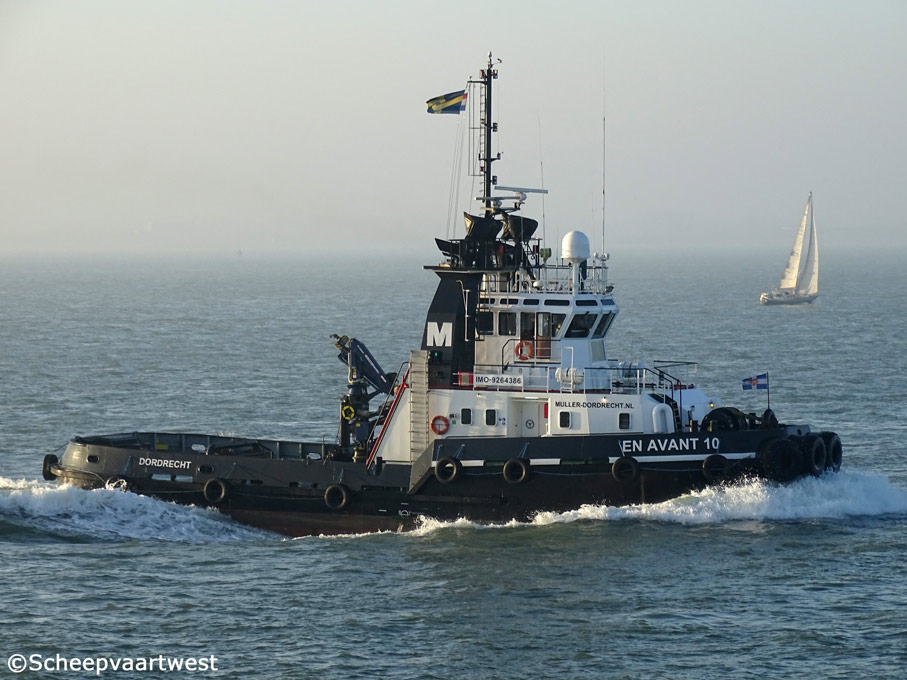

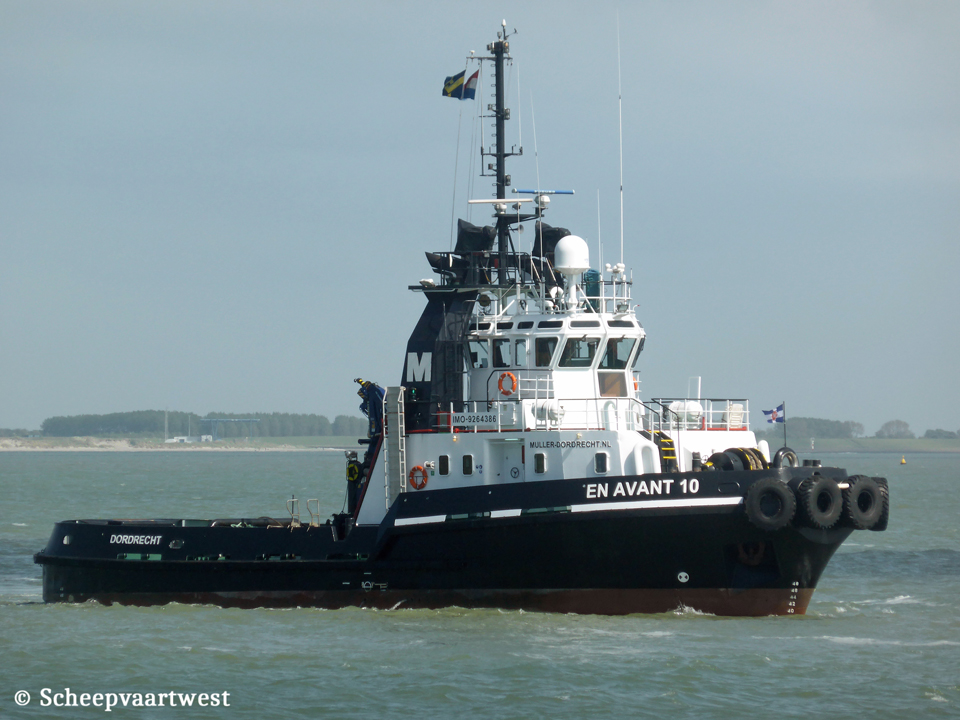

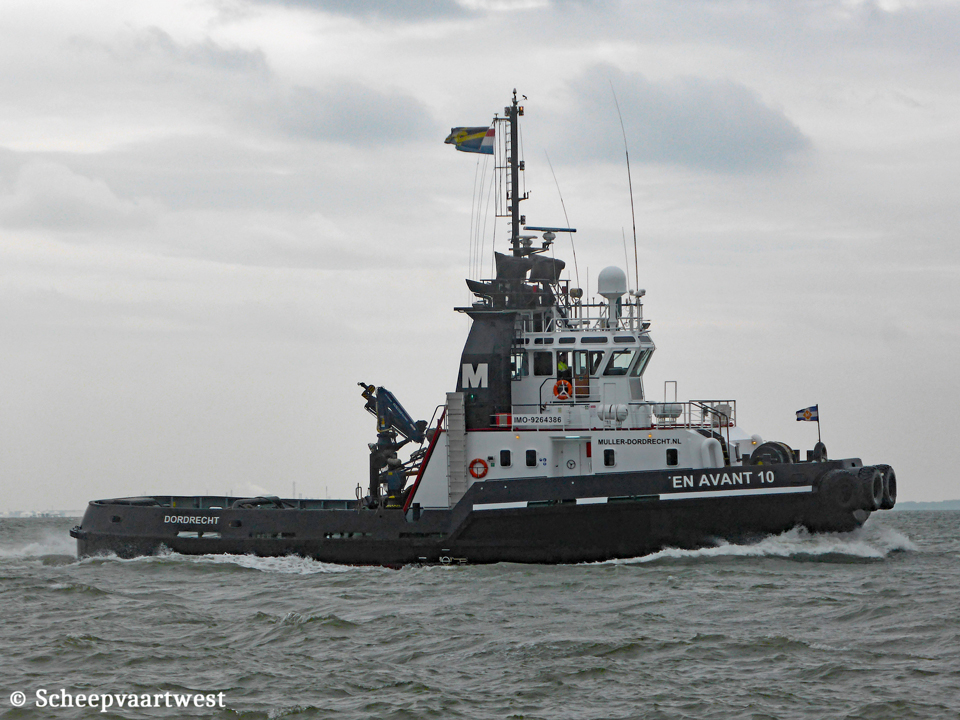

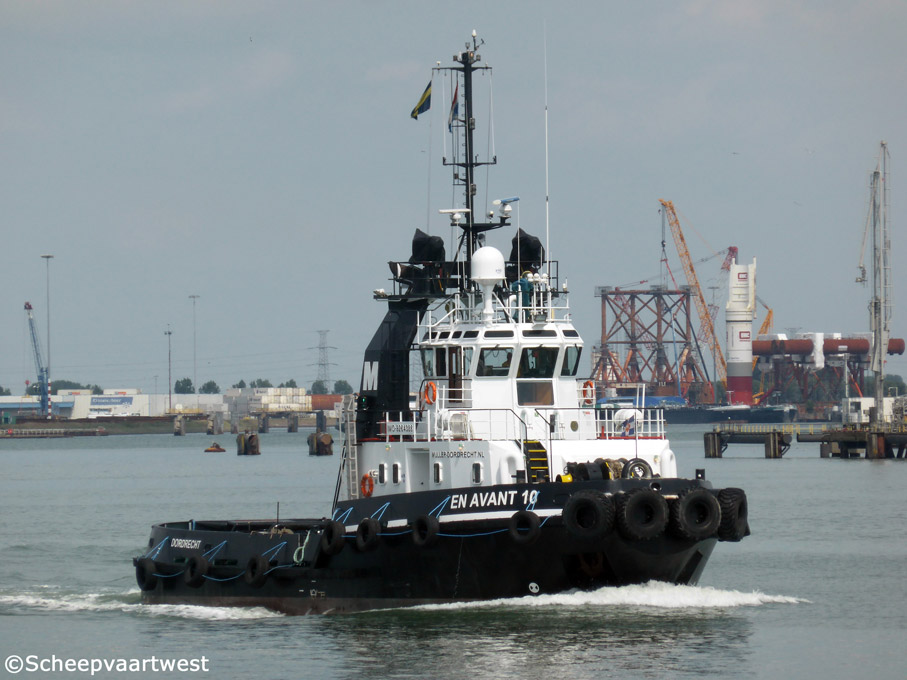

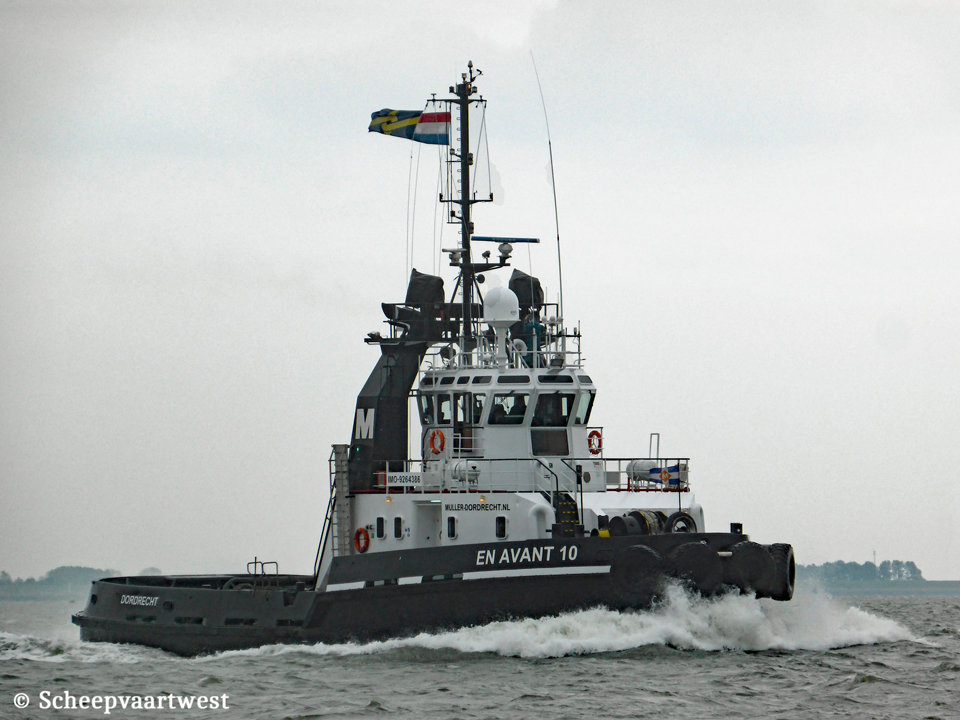

En Avant 10 - IMO 9264386

Westerschelde 01 November 2015

Name

EN AVANT 10

Previous names

2002 - 01/2004 Dhoce

01/2004 - 07/2012 Tryton

Type

Harbour & Seagoing tug - Fire Fighting vessel - Water spraying

IMO-number

9264386

Call sign

PCPP

Flag

The Netherlands

Port of registry

Dordrecht

GT

358 t

NT

107 t

Length

31,12 m overall

Breadth

10,32 m overall

Draught

Max.: 4,89 m

Min.: 4,00 m

Air draught

22,39 m

Freeboard

408 mm

Depth

5,40 m

Speed

13,5 knots

Built

2002

Date of completion

15/02/2002

Builder

Astilleros Armon Vigo S.A.

Vigo Pontevedra

Spain

Yard number

553

Hull material

Steel

Watertight compartments

3

Continuous decks

1

Main engine

2x Caterpillar 3516B TA HD/B - 4 stroke 16 cylinder 170 x 190 mm combustion engines each 1.498 kW at 1.800 rpm

Total 2.996 kW / 4.052 hp

Built: 2001

Builder: Caterpillar Inc., Lafayette (Indiana) - USA

Gearbox

2x Reintjes LAF 741 / reduction 2.033:1

Azimuth thrusters

2x ASD Schottel SRP1212 Fixed pitch

Propellers

2x Fixed pitch propellers

Diameter 2.300 mm in kort nozzles

Electric installations

Power voltage: 380 V

Lighting voltage: 220 V

Frequency: 50 Hz

Generators

2x Caterpillar 3304B T diesel generators each 106 kVA - 85 kW - 129 hp / 230/400 Volt 50 Hz

Bow thruster

1x Caterpillar 3406 diesel engine / Schottel ST110LK - 275 hp

Bollard pull

60,2 t

Deck equipment

• Free deck area: 64 m²

• Deck strenght: 2,0 ton/m²

• Escort winch fwd: Rope ø 80 mm, 100,00 m length Pull 3,5 t, Speed 54 m/min

• Towing winch aft: Waterfall type Main: steel wire, ø 44 mm 800,00 m length Pull 18 t @ 20,00 m/min Second: steel wire, ø 45 mm 600,00 m length Pull 25 t @ 14,00 m/min

• Gob eye: Flush in deck (max. 20 t SWL)

• Stern roller: 2.000 mm, diam. 711 mm, SWL 30 t

Fire fighting equipment

• FiFi level: FiFi 1 - Water Spraying

• FiFi monitors: 2x Kvaerner 1.200 m³/h each

• FiFi system: Kvaerner FiFi-pump B 1470-002

• FiFi pump capacity: 3?600 m³/h

• Spraying system: Water, Foam (12m³)

• Deluge protection: Waterspraying system fitted

• Internal FiFi system CO2 in the engine room

• Anti pollution: Fitted with 2 booms with dispersant disposers

Auxiliaries

• Salvage pumps: Salvage pumps and FIFI equipment available

• Towing pins: Karmoy hydraulic towing pins

• Anti pollution: Fitted with 2 booms with dispersant disposers

Tank capacities

Fuel oil (MGO): 273,00 m³

Fresh water: 54,24 m³

Lube oil: 5,10 m³

Dirty oil: 5,15 m³

Foam: 12,00 m³

Water ballast: 7,69 m³

Engine oil: 5,15 m³

Hydraulic / Gear lub oil: 7,51 m3 / 7,51 m³

Anchor equipment

2x 570 kg

Length: 137,5 m

Diameter: 22 mm

Lifting equipment

1x Deck crane: Palfinger (remote controlled)
Lifting capacity: 6,5 t at 1,00 m / 1,0 t at 10,70 m

Accommodation

Heated and air-conditioned living spaces for 10 persons, consisting of a galley and mess room, captain’s cabin, C.E cabin and a 1st officer cabin, officers sanitary facilities on the main deck, four double crew cabins, and crew's sanitary facilities below deck

Navigation & communication equipment

• GMDSS Area: A1 A2 A3

• Searchlights: 2x Seematz 1.000 W

• Compass: 1x Kotter type/ 1x gyro compass

• Radar system: Furuno FR 1505 mk III + JRC 2253

• GPS: Furuno GP - 31

• Autopilot: Robinson APS mk III

• Echo sounder: Suzuki ES 1025

• VHF radio / telephone: 2x Sailor RT 5022 + DSC, 25 Watt

• VHF handheld: 2x Axis-50

• NAVTEX: JRC NCR 330

• AIS: SAAB R4

• SART: McMurdo S4

• Communication: VSAT - Iridium - SSB - Phone

• ECDIS system: 2x Transas ECDIS system

• Weather system: Meteogroup SPOS onboard

Manager

Muller T. Rederij

Merwedestraat 82-83

3311TH Dordrecht

The Netherlands

Owner

Muller Groep BV

Dordrecht

The Netherlands

Registered owner

Tebra Beheer BV

Latest data adjustment

08 December 2023
