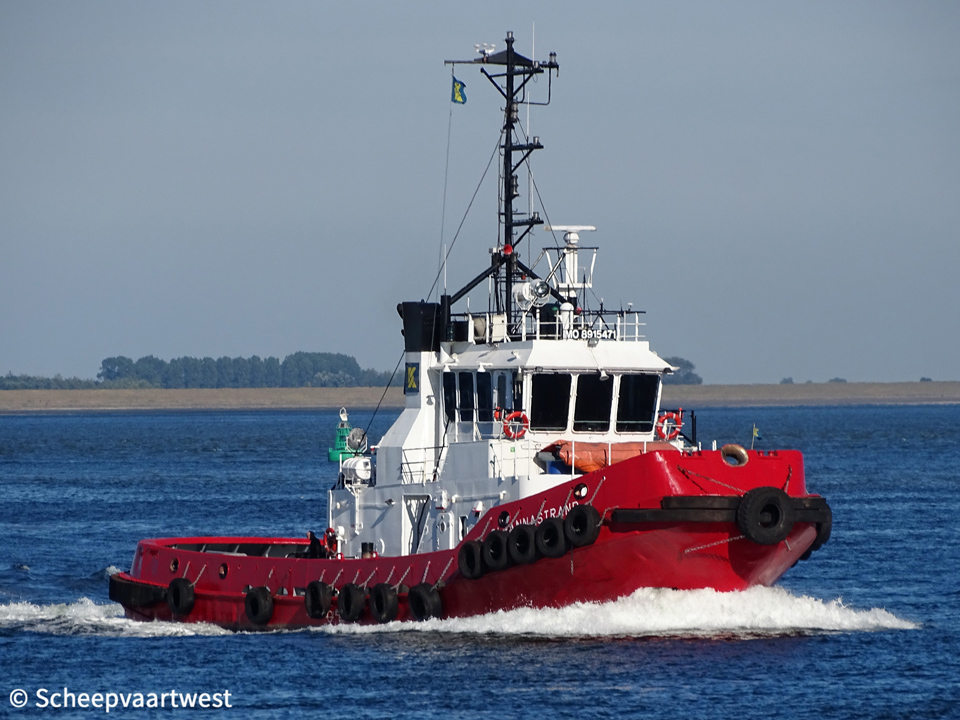

St. Annastrand 08
Westerschelde 05 July 2018

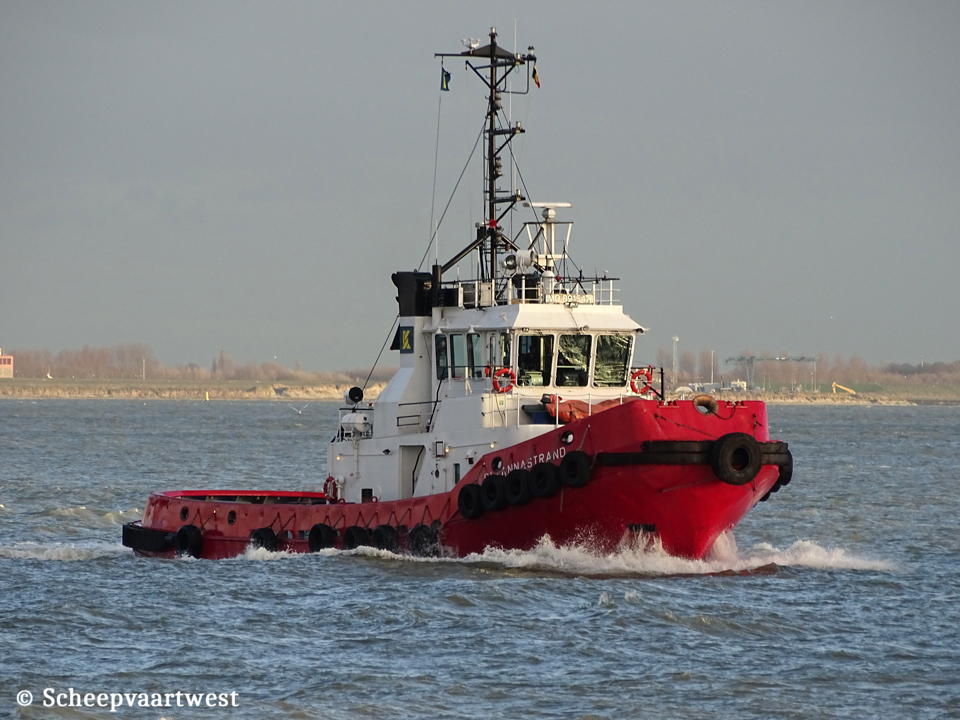

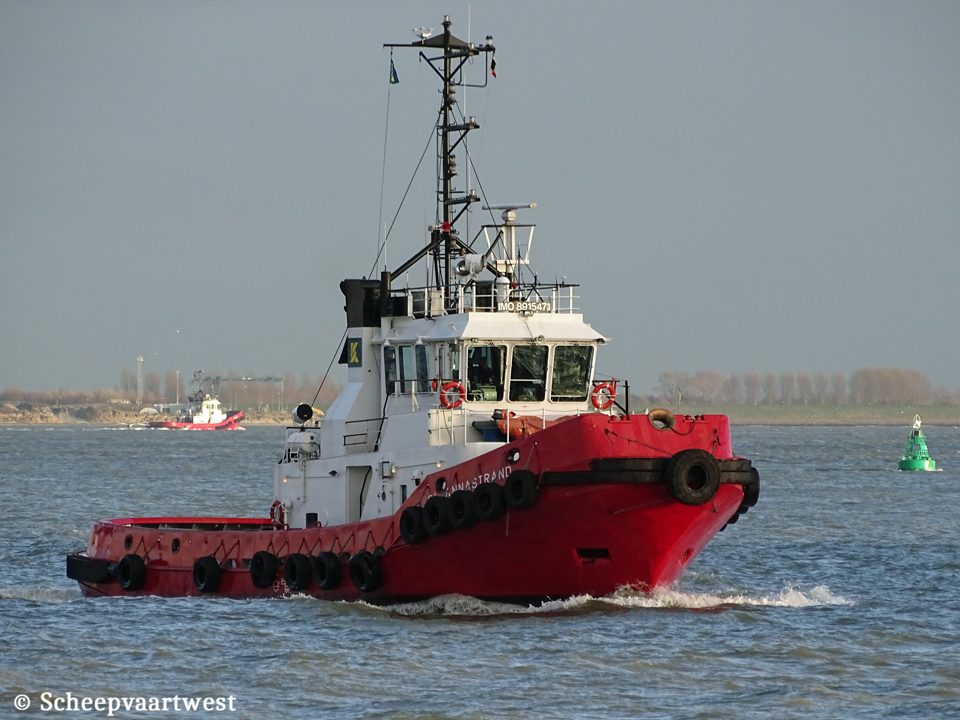

St. Annastrand IMO 8915471 09   St. Annastrand IMO 8915471 10
Westerschelde 10/12/18   Westerschelde 10/12/18

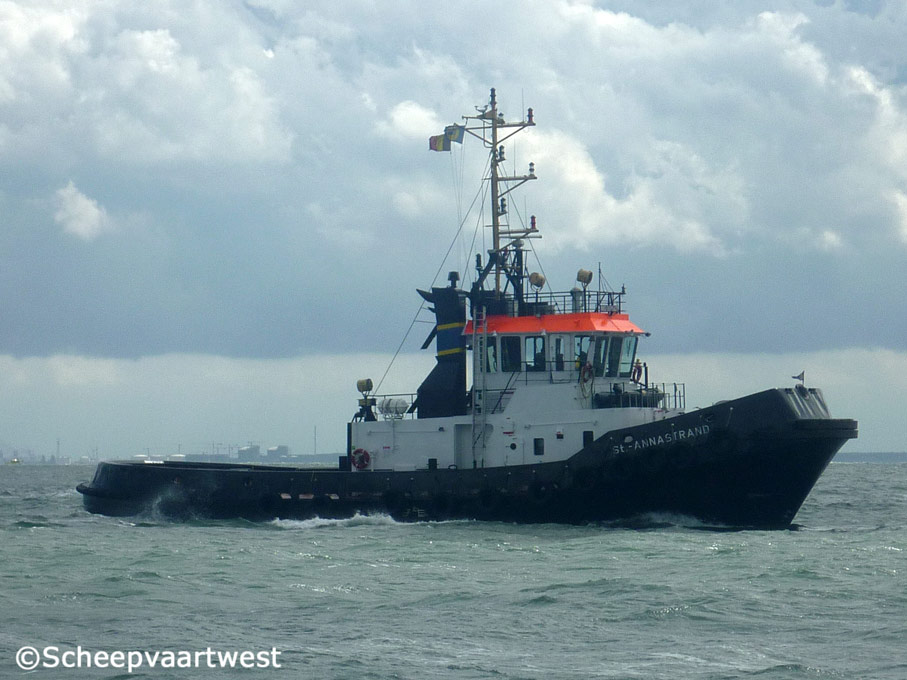

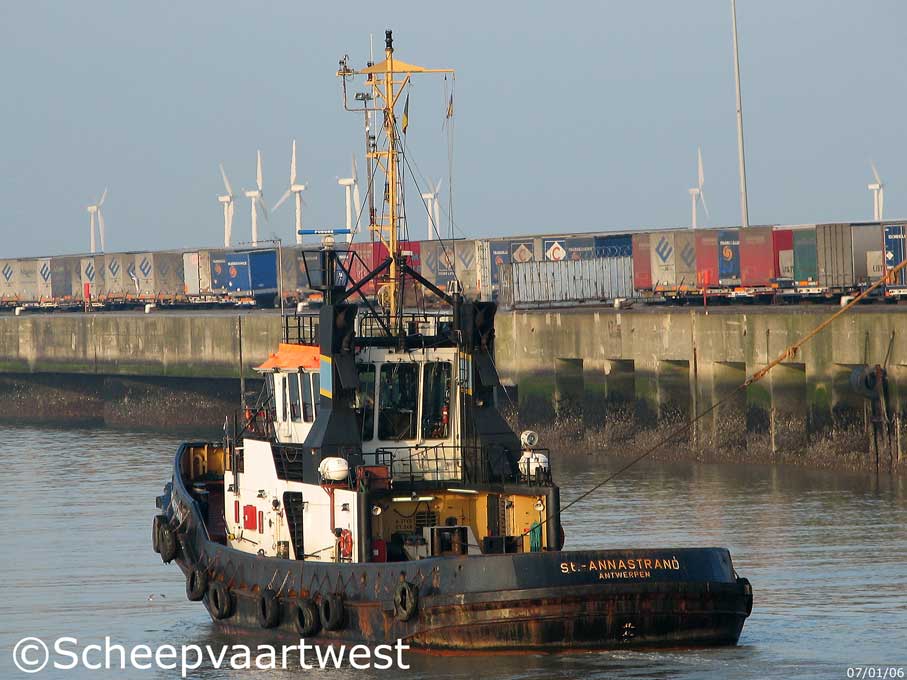

St. Annastrand 05   St. Annastrand   St.-Annastrand 07
Westerschelde 11/09/11   Zeebrugge 07/01/06 Westerschelde 15/07/12



Name

ST.-ANNASTRAND

Type

Seagoing azimuth stern drive tug 30-40 tons

Coastal area

IMO-number

8915471

Registration number

01 00301 1996

Call sign

ORKG

Flag

Belgium

Port of registry

Antwerpen

GT

249 t

DWT

Summer: 134 t

NT

74 t

Length

30,62 m overall

27,35 m between perpendiculars

30,00 m registered

Breadth

8,80 m overall

8,70 m registered

Draught

Max.: 4,60 m

Freeboard

311 mm

Depth

4,64 m

Speed

13,2 knots

Built

1991

Date of completion

05/12/1991

Builder

Scheepswerf van Rupelmonde NV

Rupelmonde

Belgium

Yard number

465

Hull material

Steel

Watertight compartments

5

Continuous decks

1

Main engine

2x ABC type 6MDZC - 4 stroke single acting 6 cylinder 256 x 310 mm medium speed combustion engines each 1.065 kW / 1.448 hp at 750 rpm

Built: 1991

Builder: Anglo Belgian Corporation N.V.

Wiedauwkaai 43

9000 Gent

Belgium

Gearbox

Reintjes VA L 2240 step-up gearbox

Propelling system

2x Fixed Azimuth SCHOTTEL Thruster-SRP 1010 propeller (in Kort nozzle) at 240 rpm

Electrical installation

Power voltage: 380 V

Lighting voltage: 220 V

Frequency: 50 Hz

Generators

2x Main diesel generatorsets each 150 kVA / 108 kW - 3x 400 Volt - 50 Hz

Bollard pull

Ahead 39 t

Astern 37 t

Tank capacities

Fuel: 76 m³

Deck equipment

Hydraulic towing winch combined with anchor windlass on forecastle deck

Identical towing winch, combined with bridle winch on aft deck

Towing winches:

Brake holding: 80 t, dynamic: 18 t at 13,40 m/min, slack rope speed: 50,00 m/min

Bridle winch: Brake holding: 40 t , dynamic: 20 to at 12,00 m/min, slack rope speed: 40,00 m/min

Navigation equipment

Tug have the most modern navigational aids s.a. radar, echo sounder, DGPS, compass, electronic charting, multiple VHF sets

Accommodation

The air-conditioned accommodation provides for 8 men

Manager

Kotug-Smit Towage B.V.

Waalhaven Zuidzijde 21

3089 JH; Rotterdam

The Netherlands

Owner

URS Belgie NV

Previous owner

Unie Van Redding- en Sleepdienst

Italiëlei 3 Bus 2

2000 Antwerpen

Belgium

Latest data adjustment

19 March 2019
