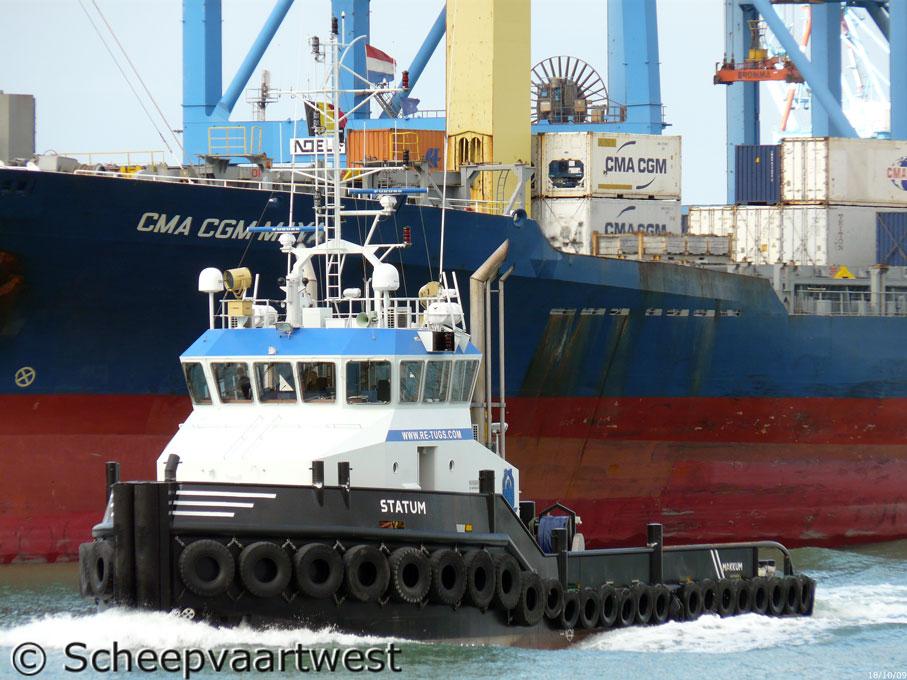

Statum 02
Zeebrugge 18 October 2009

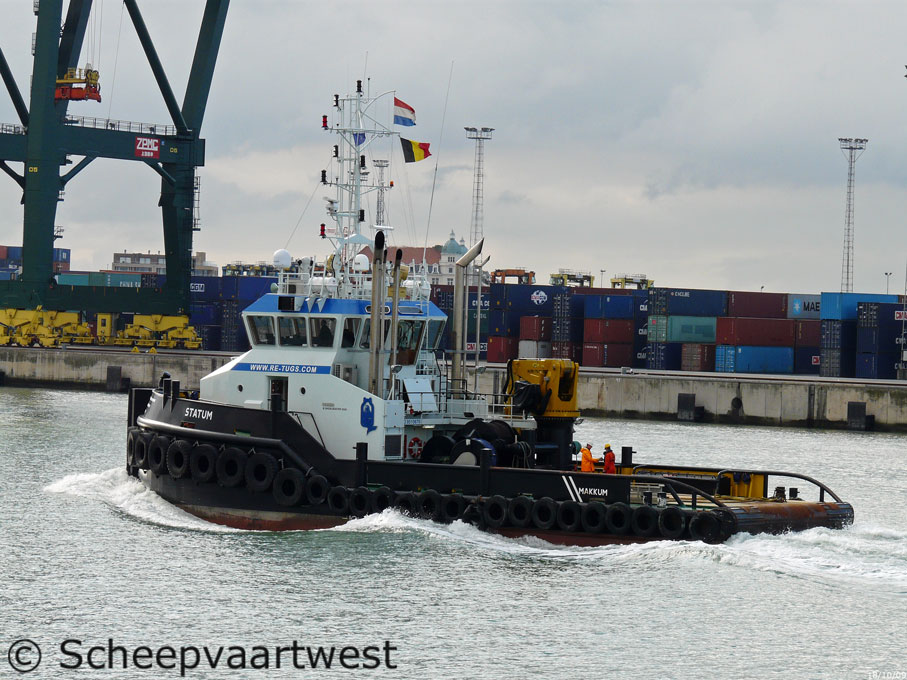

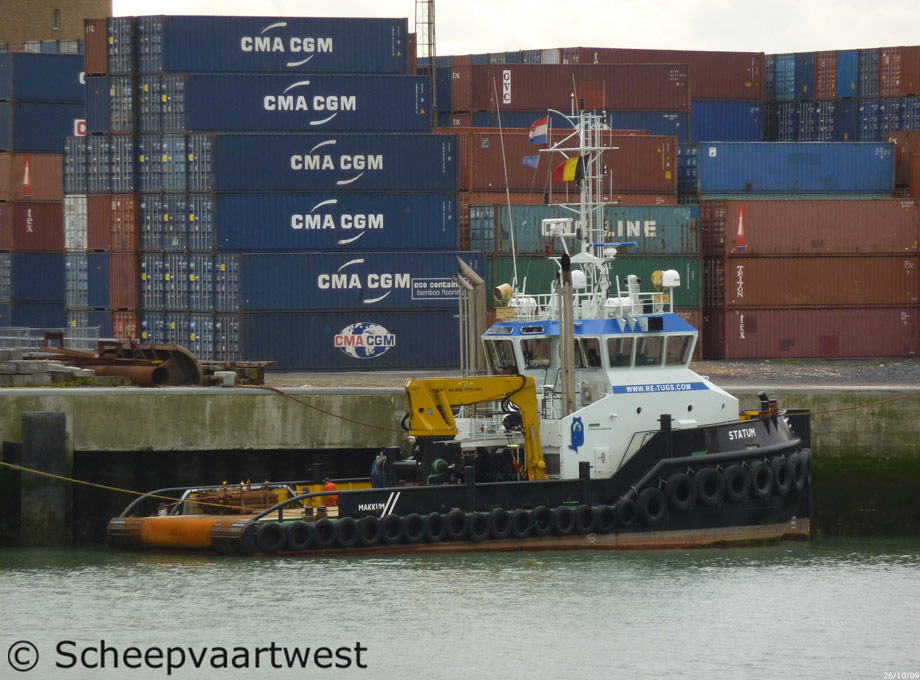

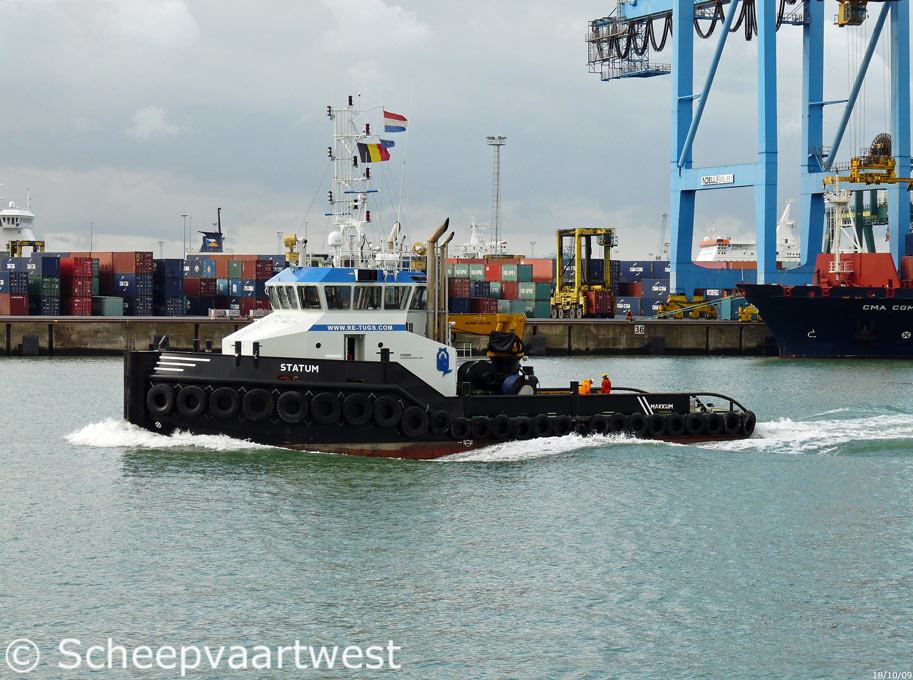

Statum 04   Statum 06   Statum 09
18/10/09   18/10/09   18/10/09



Name

STATUM

Type

Twin screw multi-purpose tug

IMO-number

9510670

Call sign

PBOP

Flag

The Netherlands

Port of registry

Makkum

GT

309 t

NT

92 t

Displacement

350 ton (empty tanks)

Length

30,08 m overall

29,38 m between perpendiculars

Breadth

9,10 m

Draught

2,30 m

Freeboard

608 mm

Depth

4,4 m

Speed

12,0 knots

Built

2008

Date of completion

23.04.2008

Builder casco

Damen Kozle Shipyard
Kedzierzyun Kozle
Poland

Yard number: 1124

Builder completion

Damen Shipyards
Hardinxveld-Giessendam
The Netherlands

Yard number: 1598

Hull material

Steel

Hull type

Single hull

Watertight compartments

7

Continuous decks

1
Machinery aft

Main engine

2x Caterpillar type 3512 B TA/C - 4 stroke 12 cylinder 170 x 190 mm internal combustion engine - 2.460 kW / 3.342 hp total at 1.600 rpm

Propellers

2x Screw propeller solid

Generators

1x Caterpillar diesel generatorset 120 kVA - 96 kW - 92 hp
1x Caterpillar diesel generatorset 120 kVA - 96 kW - 126 hp

Bow thruster

250 bhp / hydraulic

Anchor handling towing winch

50/100 ton, 2x drums 800 m. + 600 m. towing wire

Stern roll for anchor handling

Towing pins

Hydraulic towing pins in aft deck, triple pin type

Bollard pull

50 t

Free deck space

80,0 m²

Hydraulic crane

170/3SL 10,0 t at 14,00 m Local + remote control

Tank capacities

Fuel oil: 175 t

Freshwater: 41.0 t

Sewage: 3,3 t

Dirty oil: 4,3 t

Lub oil: 7,3 t

Accommodation

8 persons

Crew

5 persons

Registered owner

Rederij Engelsman Towage & Salvage
Houtmolen 14 A
8754 GJ Makkum
The Netherlands

Remarks

Vessel fully air-conditioned
