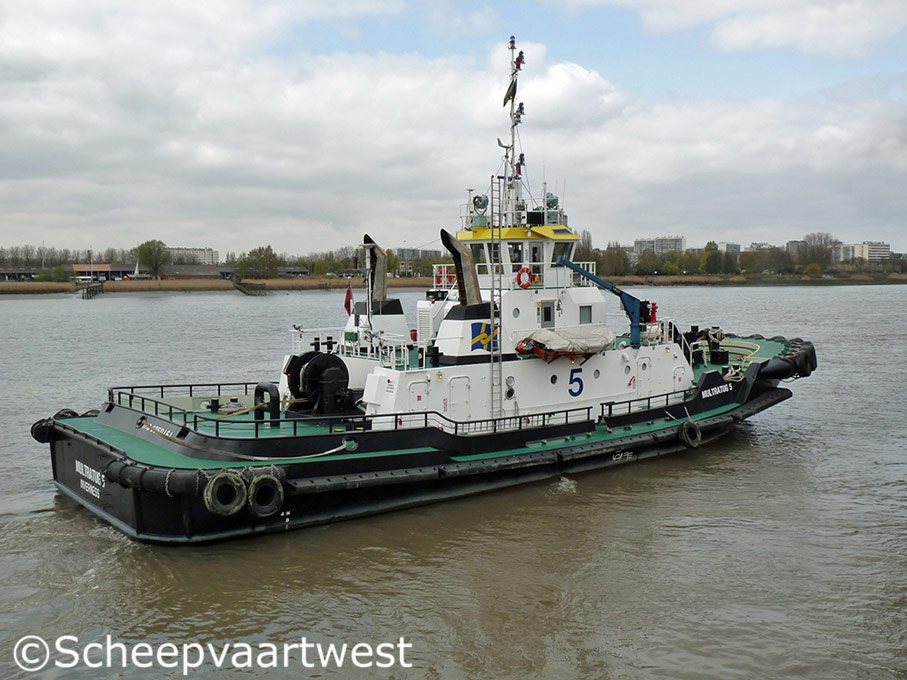

| Antwerpen 16 April 2010 |
 |
 |
 |
||

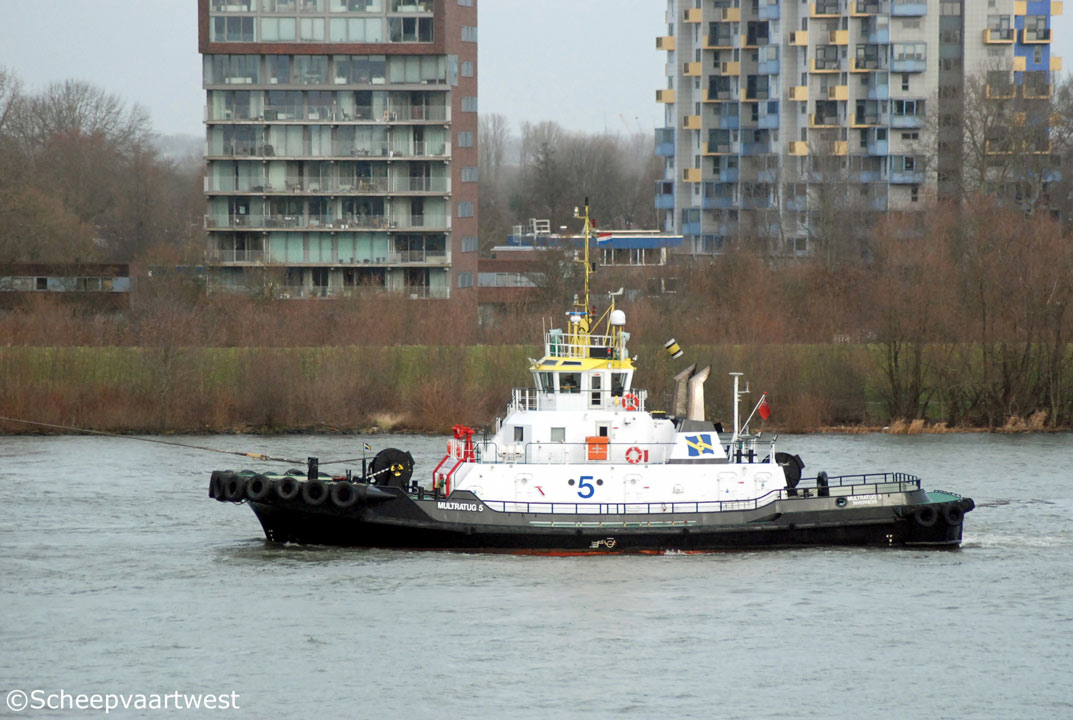

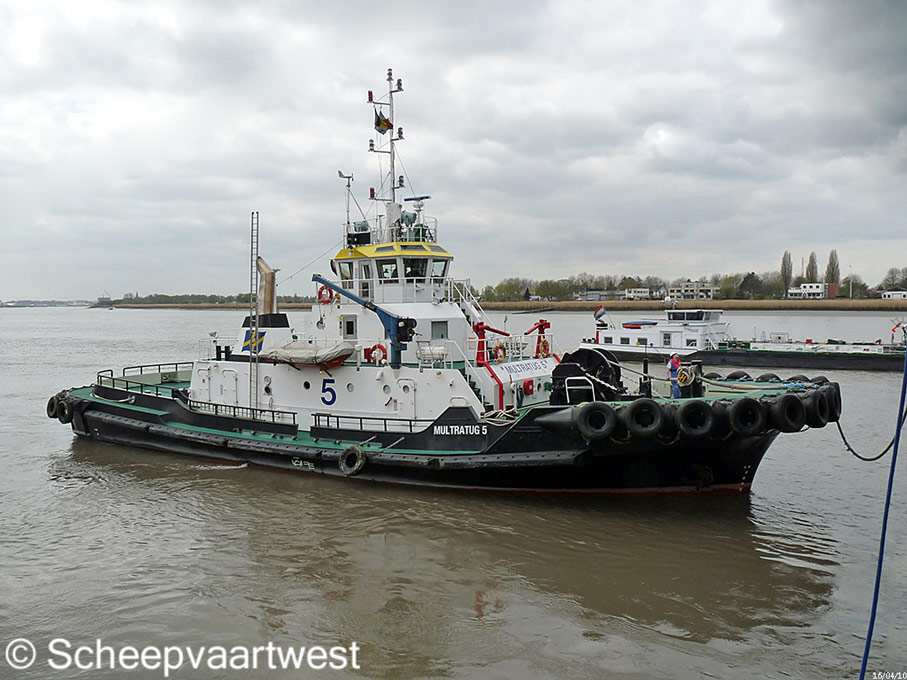

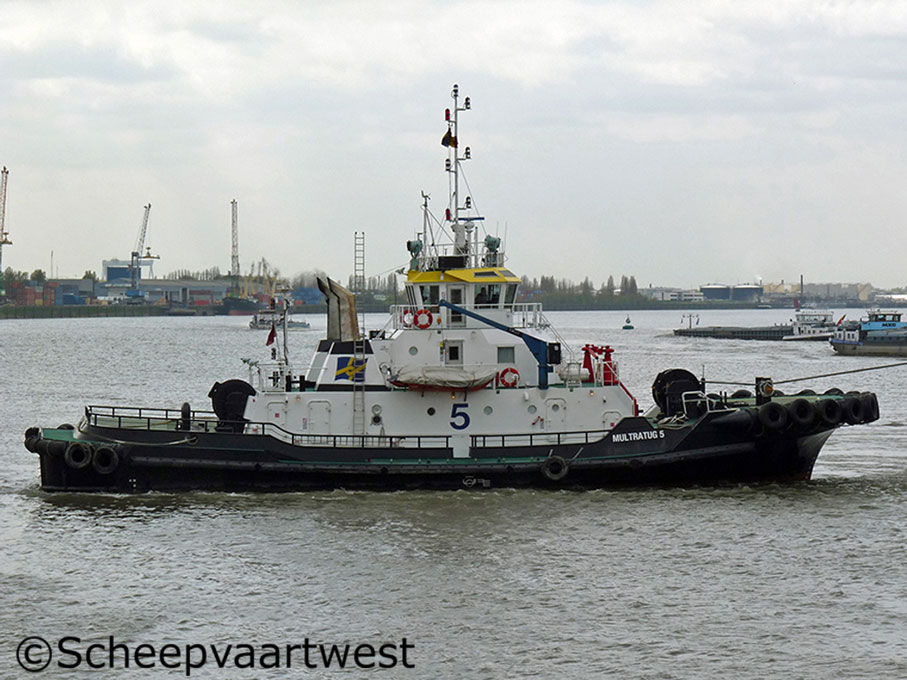

| Antwerpen 16/04/10 | Antwerpen 16/04/10 | Spijkenisse 24/12/16 | ||
|
Name |
MULTRATUG 5 |
|
Previous names |
2005 - 2007 Fuji Maru 2007 - 2008 Kindeace 2008 Multratug 5 |
|
Type |
Z-Peller tug - Azimuth stern drive |
|
IMO-number |
9350161 |
|
Call sign |
2AAV9 |
|
Flag |
United Kingdom |
|
Port of registry |
Inverness |
|
GT |
394 t |
|
DWT |
255 t |
|
NT |
119 t |
|
Length |
32,50 m overall 30,18 m between perpendiculars |
|
Breadth |
11,40 m overall |
|
Draft |
Max.: 3,70 m |
|
Depth |
4,40 m |
|
Speed |
Service: 11,2 knots Max.: 13,0 knots |
|
Built |
2005 |
|
Keel laid |
22.10.2004 |
|
Launching |
21.01.2005 |
|
Completion |
08.04.2005 |
|
Builder |
Kanagawa Shipbuilding |
|
Yard number |
536 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight bulkheads |
3 |
|
Continuous decks |
1 |
|
Main engine |
2x Niigata 6L28HX - 4 stroke single acting 6 cylinder 280 x 370 mm diesel engines each 1.618 kW total 3.236 kW at 750 rpm Starter type: Compressed air Built: 2004 |
|
Propelling system |
2x Niigate ZP-31 azimuth screw unit at 273 rpm Diameter: 2.300 m - 4 blades |
|
Auxiliary equipment |
2x Yanmar 4HAL2-TN 1 - 4 cylinder 130 x 165 mm diesel engines each 116 kW coupled with generators each 130 kVA at 1.800 rpm Voltage, frequency: 110/220V, 60 Hz Built: 2004 |
|
Harbour set |
1x Yanmar 4CHL-TN - 4 cylinder 105 x 125 mm diesel engine 45,6 kW coupled with generator 50 kVA at 1.800 rpm Voltage, frequency: 110/220V, 60 Hz Built: 2004 |
|
Bollard pull |
64,5 t |
|
Fi-Fi |
System: 2 on bridge deck and 2 on fore deck Type: Monitors Capacity: 480 m³/h x 150,00 m (2x 4.000 l/min on bridge deck) |
|
Deck lay-out |
Anchor: Stockless 2x 570 kg each Chain: Studlink, 330,00 m, 25 mm Winch : Masada towing winch OW-T70, 20/10 x 45/90 m/min Brake capacity: 70 t FWD Towing winch: Masade MOW-T70, 40/20 x 14/30 m/min Spare towing wire: 120,00 m, 80 mm/10 inch, 2.247,4 kN |
|
Tank capacities |
Fuel oil: 120 m³ Fresh water: 35,9 m³ Lubrication oil: 6,78 m³ Hydraulic oil: 0,5 m³ Dirty oil: 5,37 m³ Ballast water: 15,99 m³ Foam: 6,88 m³ Dispersant: 1,96 m³ |
|
Accommodation |
2-Men cabins: Two 1-Man cabins: Three Messroom: One Galley: One |
|
Navigation |
2x Radars |
|
Operator |
Multraship Towage & Salvage |
|
Owner |
Caledonian Towage Ltd. |
|
Previous names & owners |
2005 - 2007 Fuji Maru - Fukushima Kisen K.K - Japan 2007 - 2008 Kindeace - Knight Group, Chatham - |
|
Latest data adjustment |
11 March 2017 |
