Multratug 4 13
Westerschelde 22 November 2017

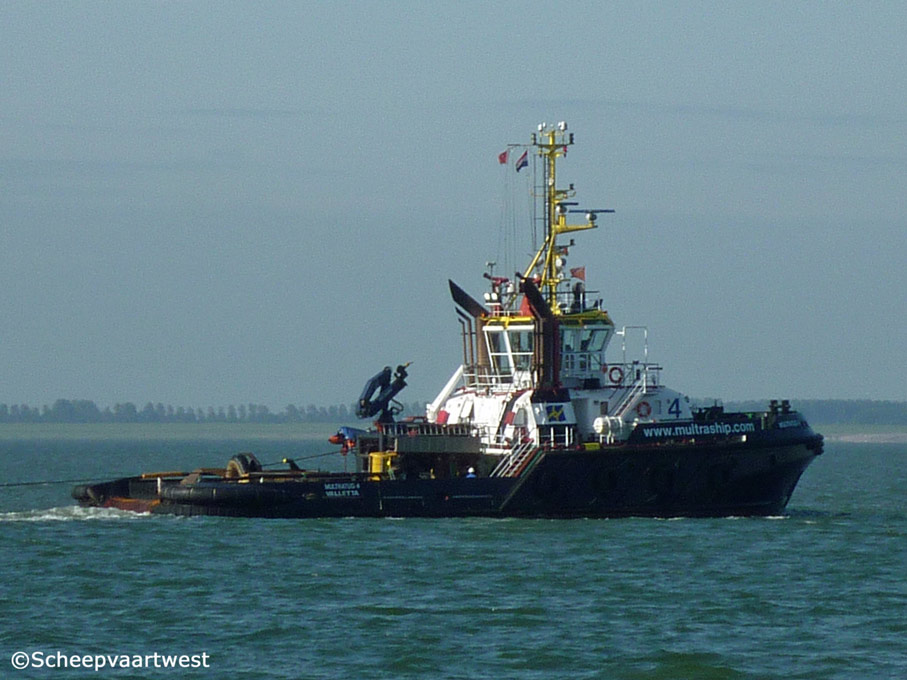

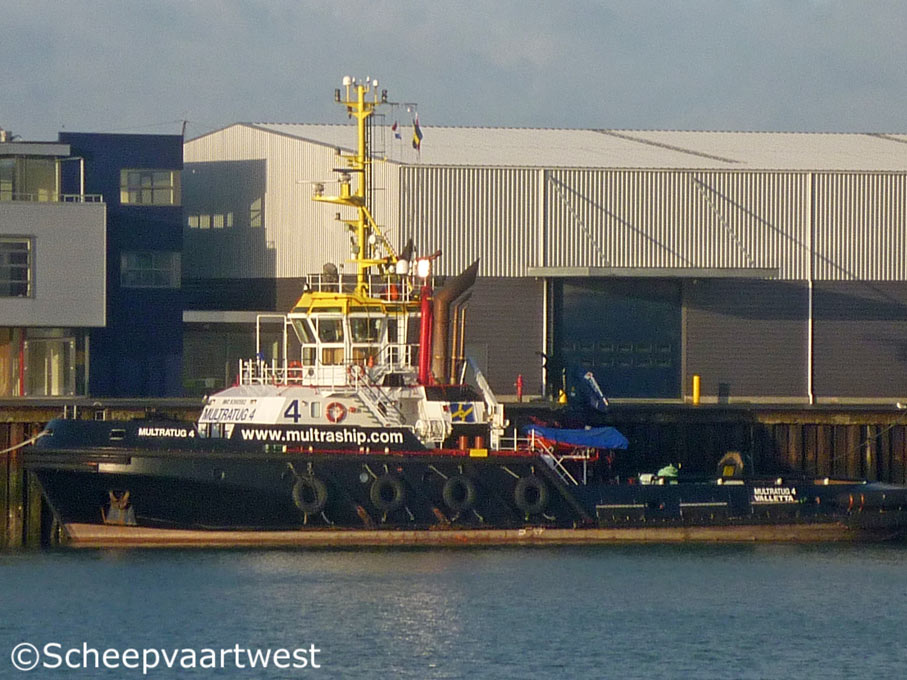

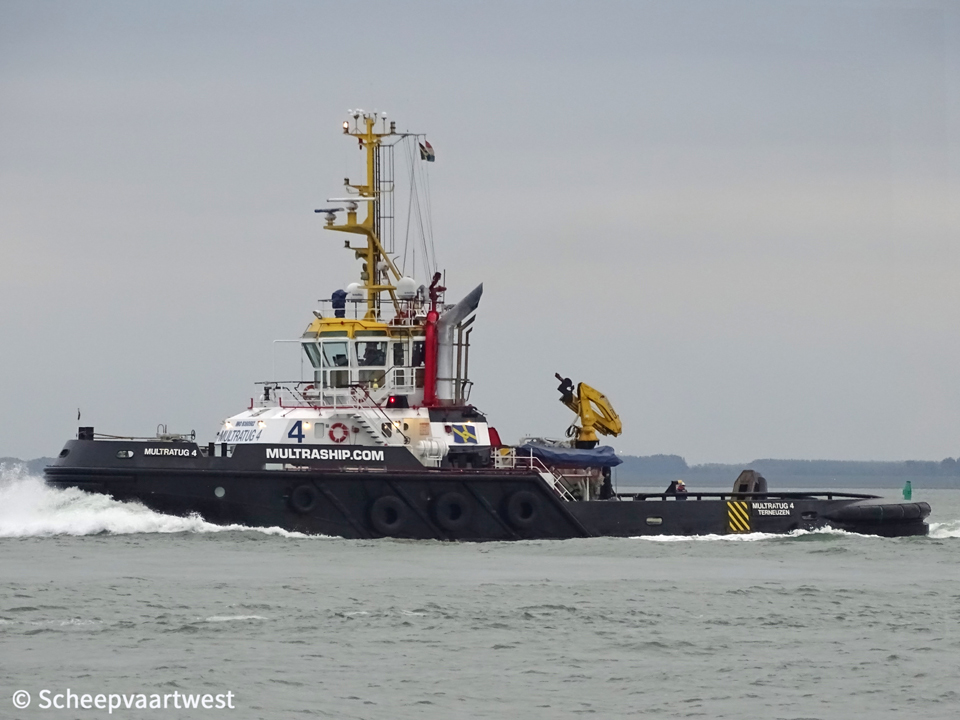

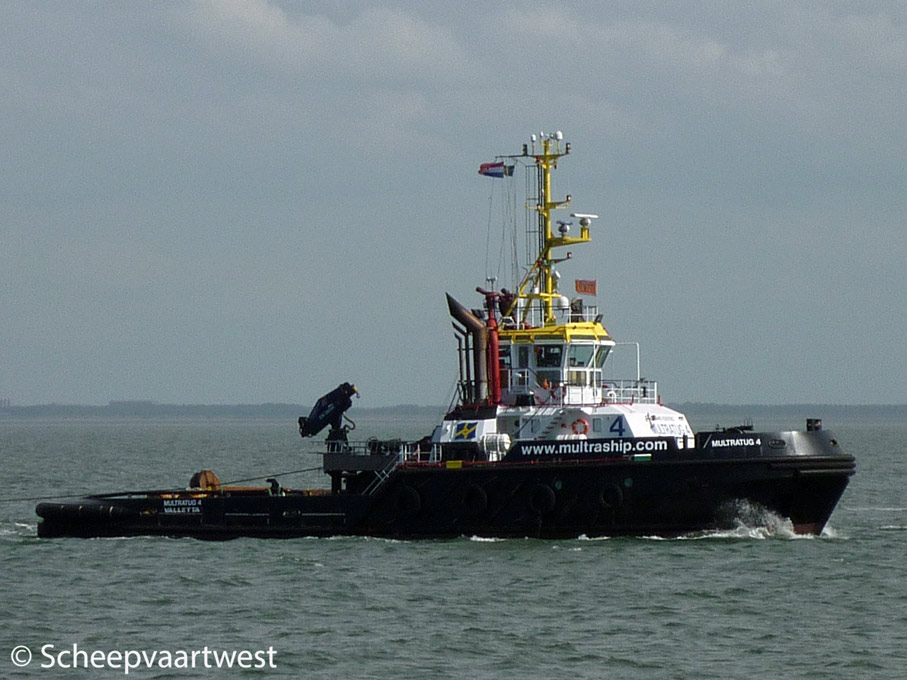

Multratug 4 04   Multratug 4 01   Multratug 4 06   Multratug 4 14   Multratug 4 15
Westerschelde 06/06/12 Vlissingen 17/12/11 Westerschelde 10/06/12 Westerschelde 24/10/18   Westerschelde 14/10/18

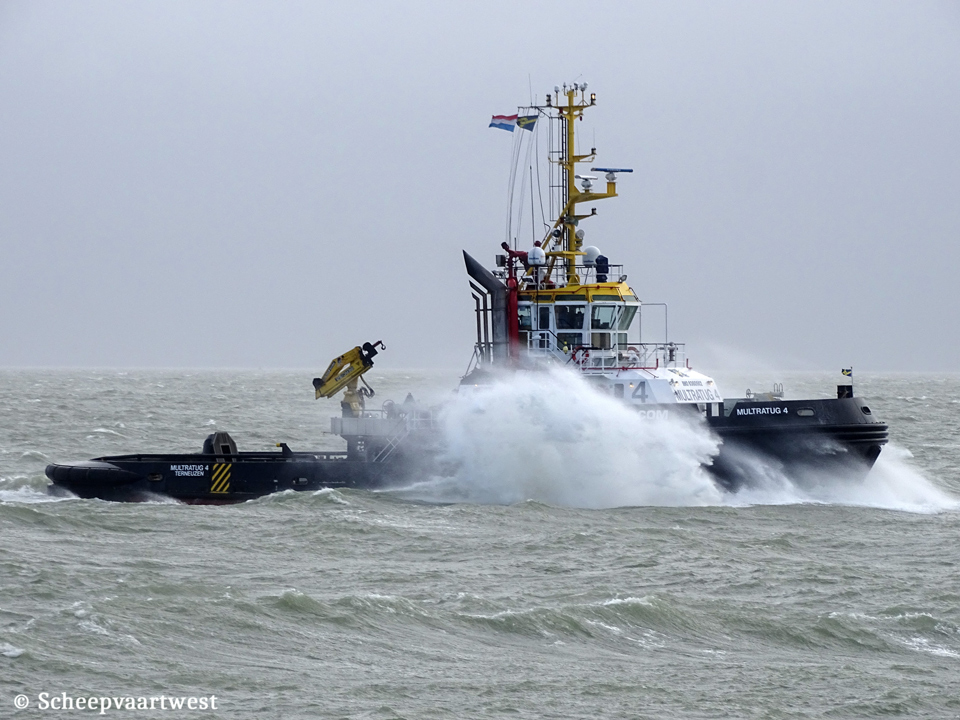

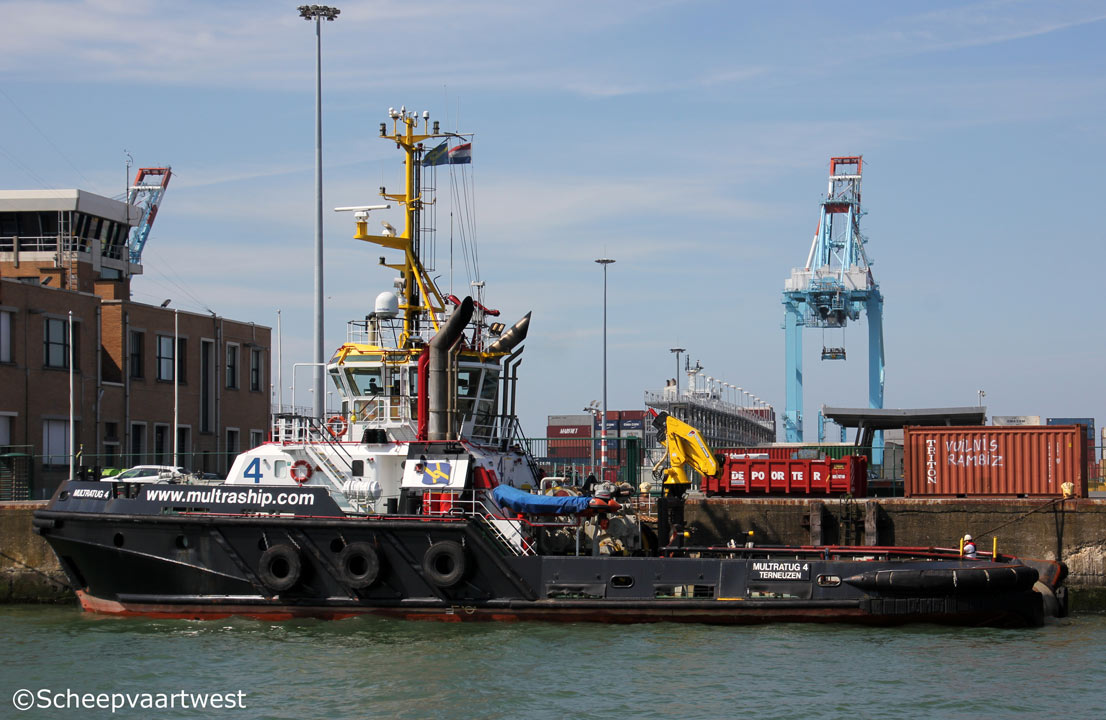

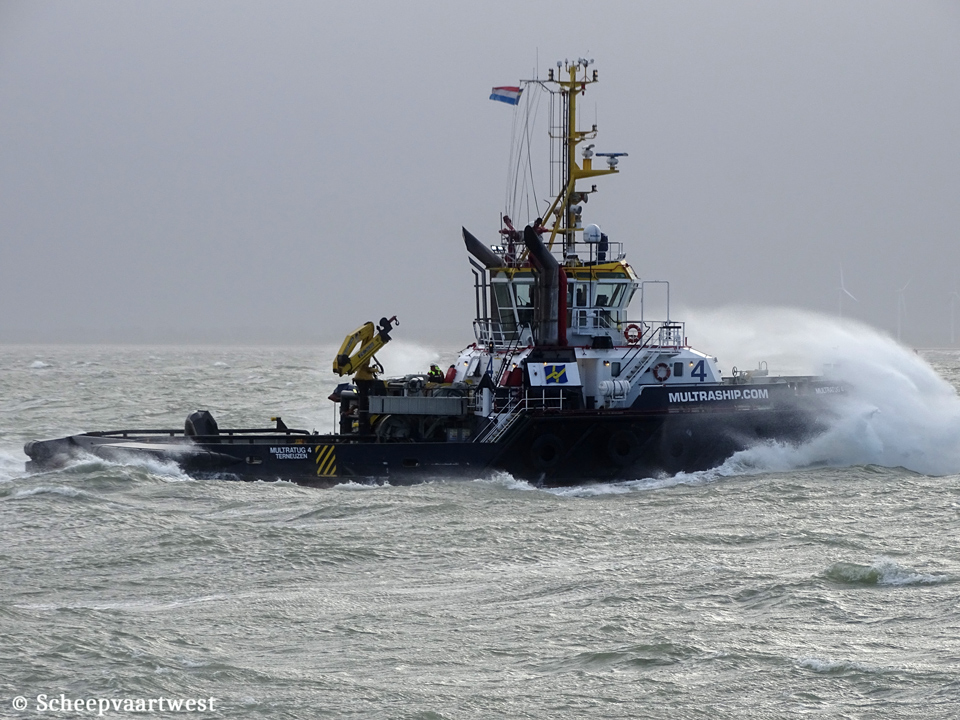

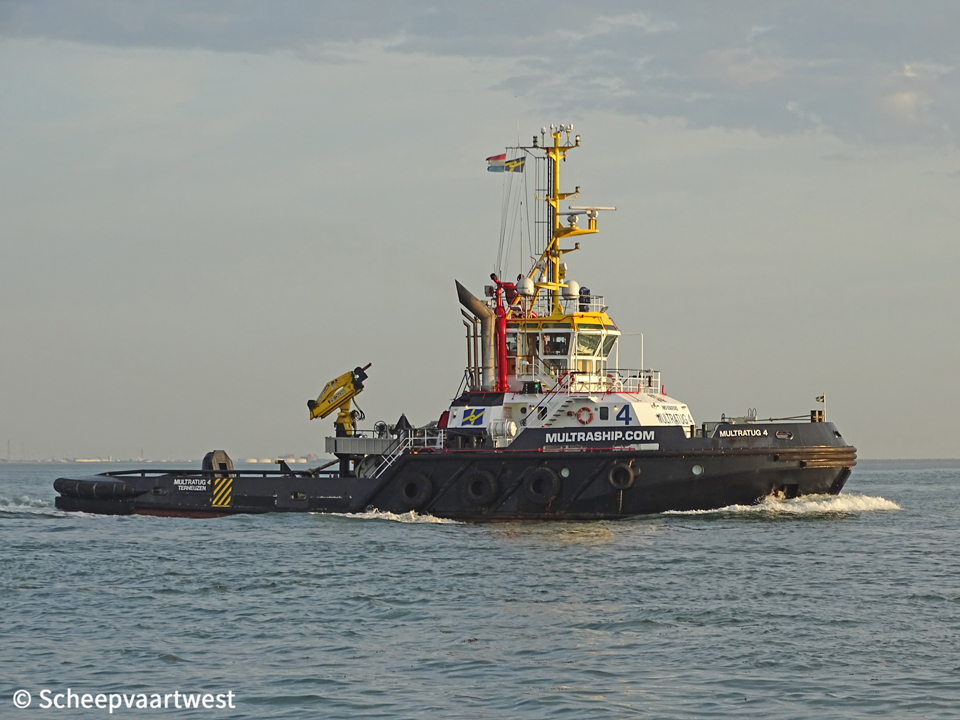

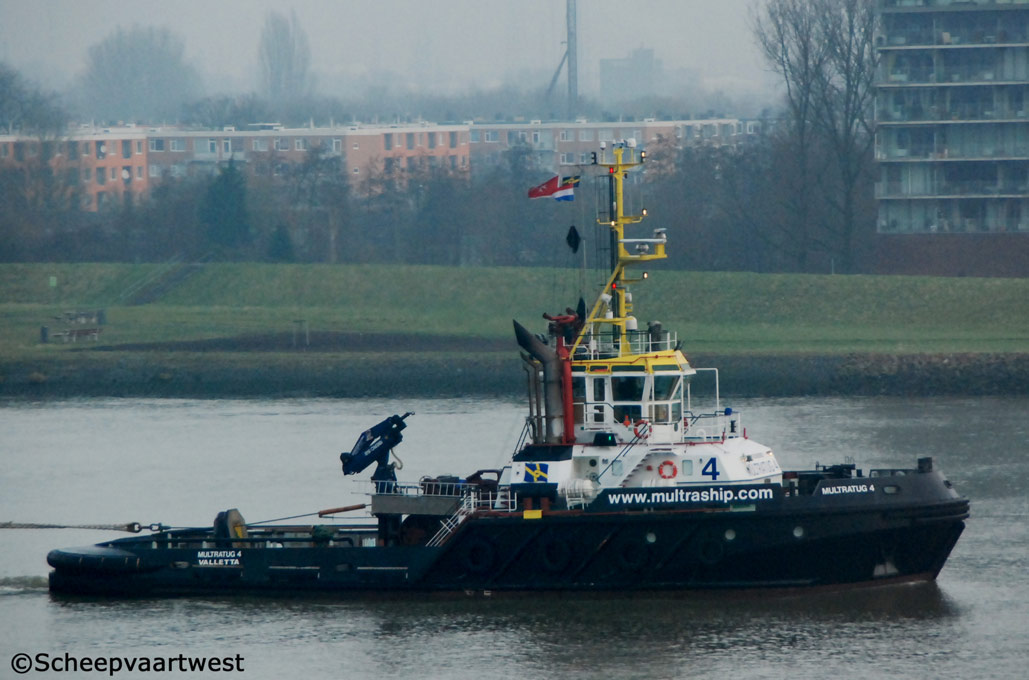

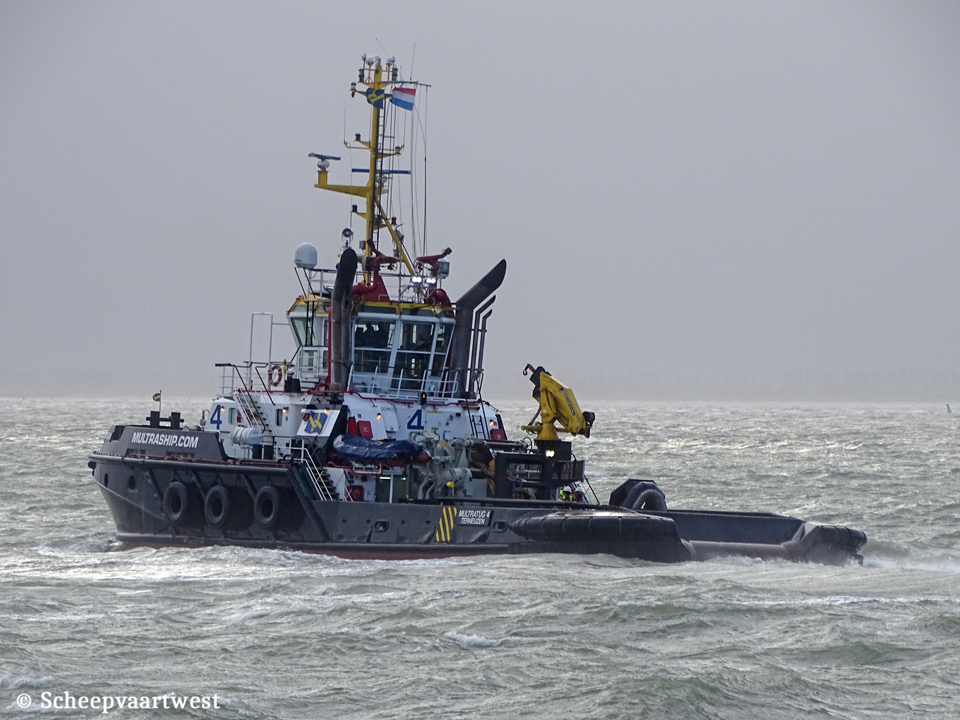

Multratug 4 IMO 9360582 18   Multratug 4 IMO 9360582 19   Multratug 4 IMO 9360582 20   Multratug 4 16   Multratug 4 09    Multratug 4 12
Westerschelde 21/12/18   Westerschelde 21/12/18   Westerschelde 21/12/18   Westerschelde 14/10/18   Spijkenisse 28/01/12    Westerschelde 21/12/18


Name

MULTRATUG 4

Previous names

2006 - 2007 Turm

2007 - 2009 Lesum

2009 - 2011 Wulf 7

2011 - 2011 Fairplay 28

2011 - 2022 Multratug 4

2022 - Freyr

Type

Voith tractor tug -Fire fighting ship - Oil recovery ship - Water spraying

IMO-number

9360582

Call sign

PDBV

Flag

The Netherlands

Port of registry

Terneuzen

Previous flags

Germany - Call sign: DMEC

Valletta, Malta - Call sign: 9HST8

GT

497 t

NT

149 t

Length

34,50 m overall

31,58 m between perpendiculars

Breadth

11,60 m overall

Draught

Max: 6,70 m

Freeboard

312 mm

Depth

4,70 m

Air draft

Min: 17,00 m

Speed

Max: 13,9 knots

Eco: 9,0 knots

Built

2006

Keel laid

2005

Launch date

01/03/2006

Date of completion

29/11/2006

Builder

Astilleros Armon S.A.

Navia - Asturias

Spain

Yard number

C-626

Hull material

Steel

Continuous decks

1

Main engine

2x Caterpillar MaK 8M25 - 4 stroke single acting 8 cylinder 255 x 400 mm combustion engine each 2.640 kW

Total 5.280 kW / 7.174 hp at 750 rpm

Built: 2005

Manufacturer: Caterpillar Motoren GmbH & Co. KG - Germany

Electrical propulsion gen.

1x 245 kW - 380 Volt

Propelling system

2x Voith-Schneider 32 GR5 / 250-2 cycloidal prop controllable pitch - at 69,0 rpm

Electrical installation

Power voltage: 380 V

Lighting voltage: 220 V

Frequency: 50 Hz

Shaft generator

1x Sauer SMF2/334 - 300 kVA at 1.500 rpm

Generators

2x Caterpillar 3406C-TA main diesel engines each 245 kW / 353 hp connected with generators each 306 kVA

Harbour generator set

1x Caterpillar 3056T diesel generatorset 105 kVA - 84 kW - 125 hp at 1.500 rpm

Bollard pull

75 t

Deck lay out

  • Hatlapa double drum waterfall winch and 2 tugger winches aft - 900 m diameter 52 mm

  • Drum 1: 700m / 52mm / Steel

  • Drum 2: 215m / 52mm / Steel

  • Spare Wire: 900m / 52mm / Steel

  • Tugger Winch: 2x Hatlapa 60m / 22mm / Steel

  • Stern Roller: 4,00 m

  • Karmforks: 1x Karmoy / 300 t

  • Tow Pins: 2x Karmoy / 160 t

  • Anchor: 2x 600 kg

  • Deck crane: Palfinger - SWL 1,0 t @ 13,20 m

Deck space

64,0 m²

Fire fighting pump

Aker Kvaerner subsea type Eureka pump

Port side: 1.500 m³/h

Starboard: 1.200 m³/h

Foam Capacity: 18,7 m³

Tank capacities

MGO: 215,3 m³

Fresh water: 45,7 m³

Lub Oil: 7,4 m³

Hydraulic oil: 2,3 m³

Dirty oil: 5,4 m³

Bilge water: 7,5 m³

Sewage: 3,76 m³

Accommodation

4x Officer single berth cabin

3x double berth cabin

1 x Messroom

1 x Galley

1 x Office

Navigation & Radio equipment

ECDIS: 2x eGlobe

Radar: Furuno RPU-013

Gyro / THD: Alphatron Alphaminicourse

GPS: Furuno GP 170

Ais: Furuno FA 170

NAVTEX: Furuno NX 700

Echo Sounder: Furuno FE 700

Autopilot: Simrad J50

Speedlog: Furuno DS 80

Handheld VHF: 3x ICOM

Manager

Multraship towage & salvage

Scheldekade 48

4530 AB Terneuzen

The Netherlands

Operator

Multraship towage & salvage

Registered owner

Ocean Koper D.O.O.

Previous names & owners

2006 - 2007 Turm - Hidraumar Transportes, Funchal - Madeira (Portugal)

2007 - 2009 Lesum - Unterweser GmbH, Bremen - Germany

2009 - 2011 Wulf 7 - Otto Wulf GmbH, Bremen - Germany

2011 - 2011 Fairplay 28 - Fairplay GmbH, Hamburg - Germany

Renamed

2022 Fairplay 32

Cyprus, Limassol - Call sign: 5BAM6

Owner: Ocean S.R.L.

Manager: Fairplay Towage Group, Hamburg - Germany

Latest data adjustment

30 November 2023
