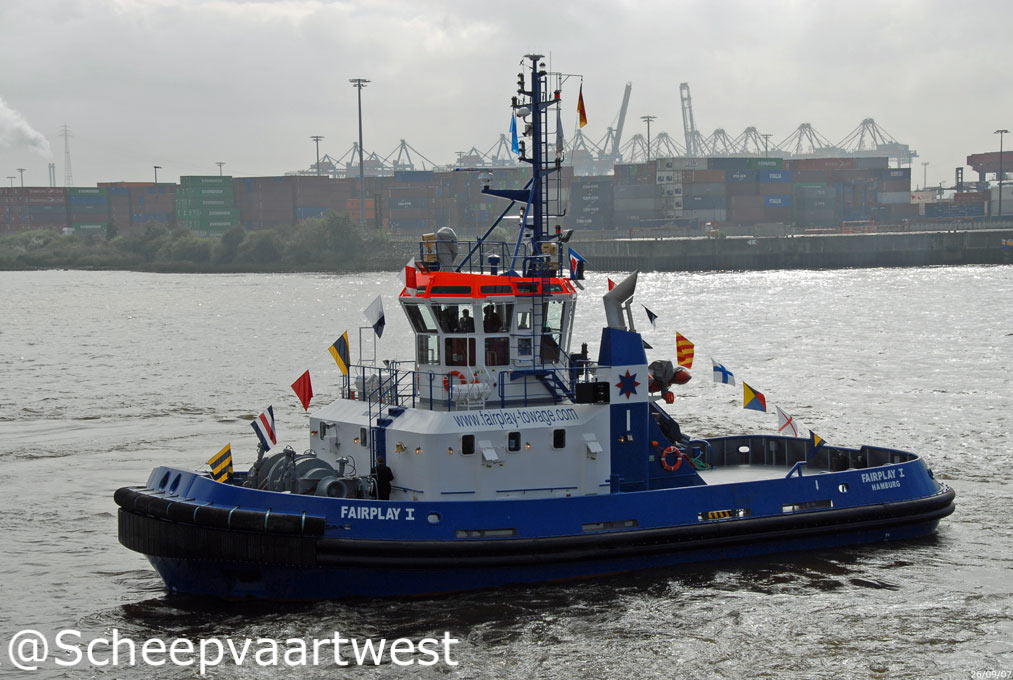

Fairplay I 03
Antwerpen 26 September 2007

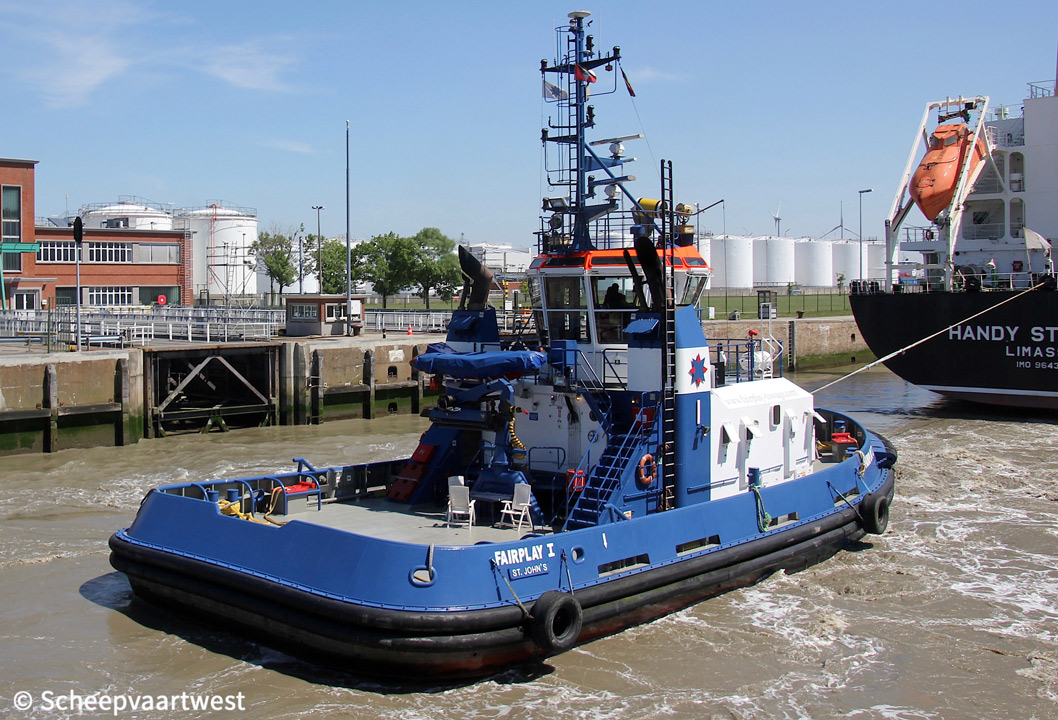

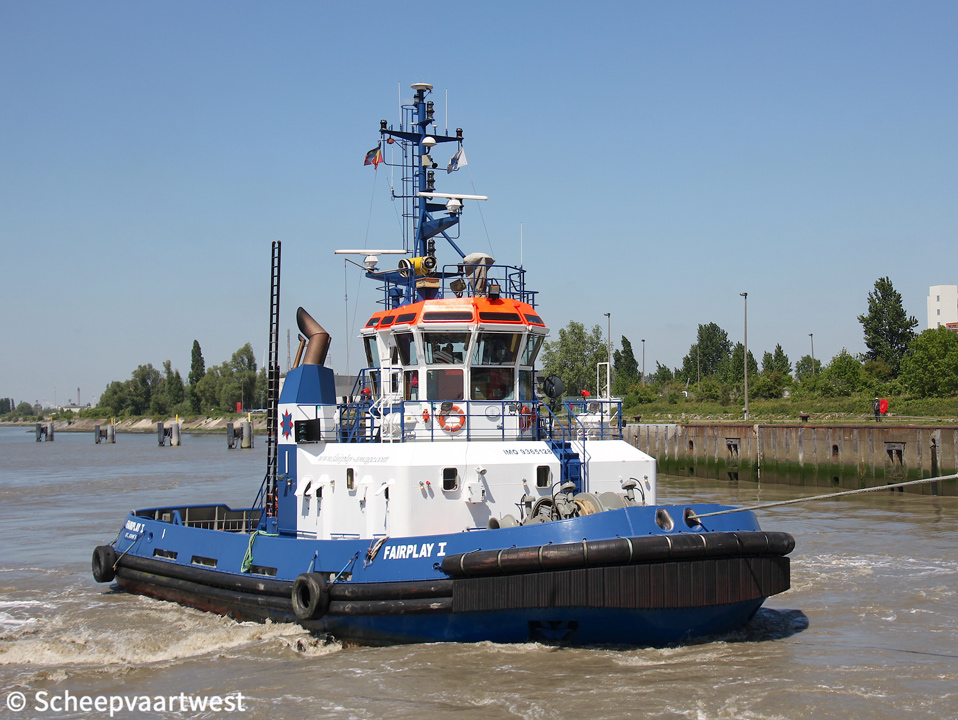

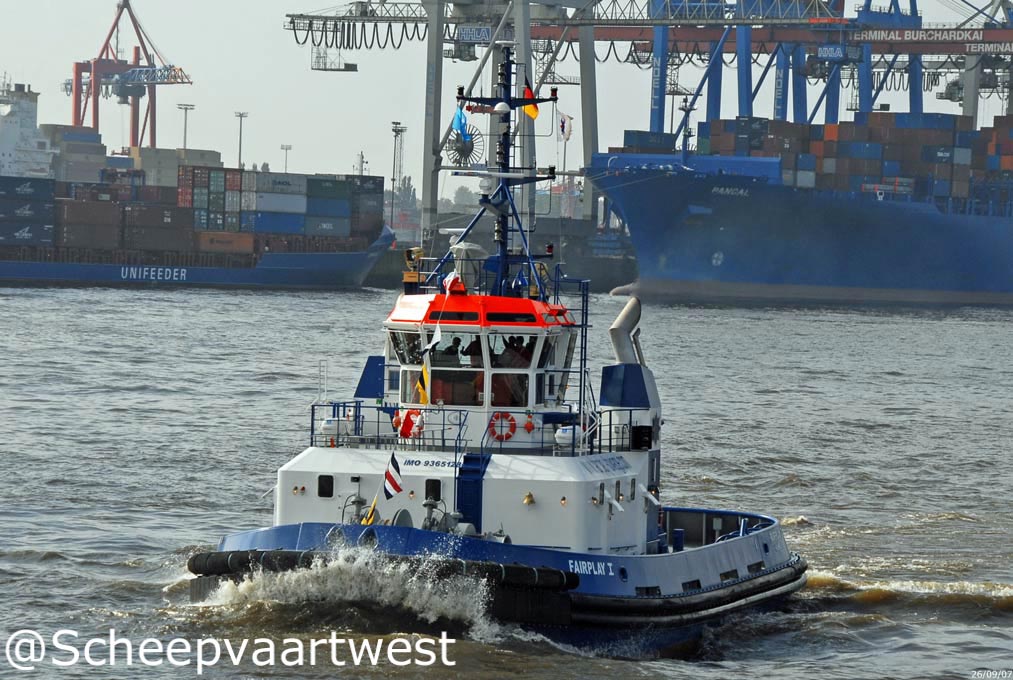

Fairplay I 02   Fairplay I 04   Fairplay I 05
Antwerpen 26/09/07 Antwerpen 14/05/19 Antwerpen 14/05/19


Name

FAIRPLAY I

Type

Schottel ASD tug fully equipped for harbour assistance, coastal towage & salvage

IMO-number

9365128

Call sign

V2ES9

Flag

Antigua & Barbuda

Port of registry

St. john’s

Previous flag

2007 - 03/2010 Germany, Hamburg - Call sign: DFFY2

GT

308 t

DWT

240,8 t

NT

92 t

Length

25,00 m overall

22,95 m between perpendiculars

Breadth

11,90 m extreme

11,20 m moulded

Draught

4,46 m

Depth

5,25 m moulded

Speed

12,4 knots

Built

2007

Keel laid

14/02/2006

Launch date

18/01/2007

Date of completion

06/09/2007

Builder

Astilleros Armon, S.A.

Avenida del Pardo, s/n

33710 Navia (Asturias)

Spain

Yard number

650

Hull material

Shipbuilding steel (standard)

Hull type

Single hull

Watertight bulkheads

4

Continuous decks

1

Main engine

2x ABC 8(M)DZC -800-183 - 4 stroke single acting 8 cylinder 256 x 310 mm combustion engine 1.870 kW / 2.542 hp at 1.000 rpm

Total power: 3.665 kW / 5.000 bhp

Year of manufacture: 2007

Manufacturer: Anglo Belgian Corporation N.V.

Wiedauwkaai 43

9000 Gent

Belgium

Propeller

2 x Schottel rudder propeller SRP 1515 CP in Kort nozzles - aft at 225

Boilers

1x Water heater, oil fired

Year of manufacture: 2007

Electric installations

1x Plant 380 V - 200 kVA

1x Plant 380 V - 200 kVA

Generators

2x Scania D 9 95 M03D - 4 stroke 6 cylinder diesel engines each 196 kW coupled with generators each196 KW

Compressed air receivers

2x Receivers each 200 litres - 35,0 bar

Bollard pull

72,0 t

Towing winch

1x Brussels hydraulic towing winch - 2x 120 m Dyneema towing rope

Anchor equipment

Length: 220,00 m

Diameter: 22 mm

Tank capacities

Fuel: 164 m³

Ballast: 48,9 m³

Manager

Fairplay Schleppdampfschiffs Reederei Richard Borchard GmbH

Registered owner

Fairplay Schleppdampfschiffs Reederei Richard Borchard GmbH

Bei den Mühren 1

20457 Hamburg

Federal Republic of Germany

Latest data adjustment

13/03/2020
