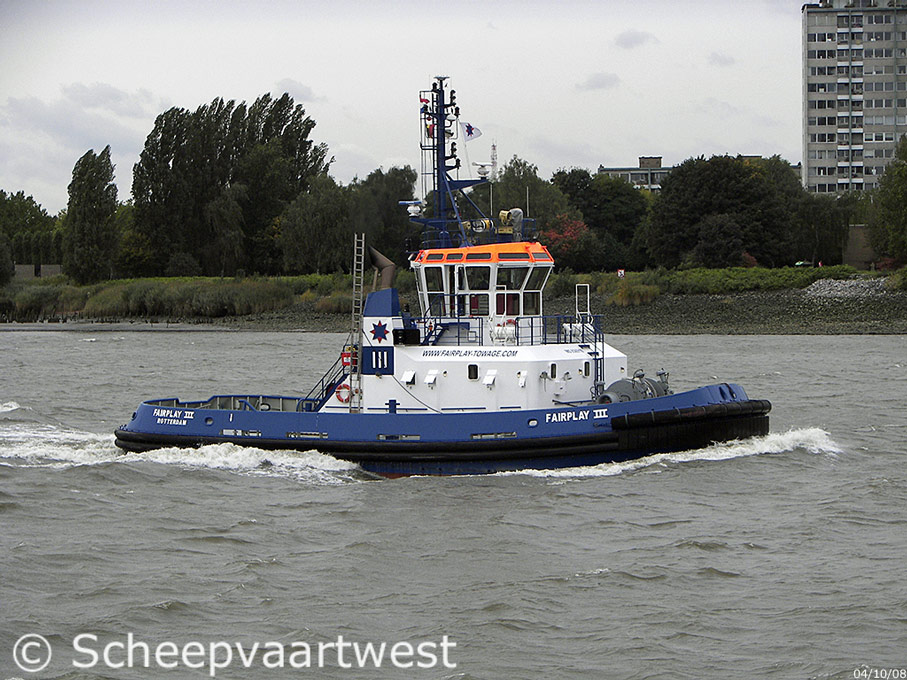

| Antwerpen 04 October 2008 |
 |
 |
 |
 |
 |
 |
|||||

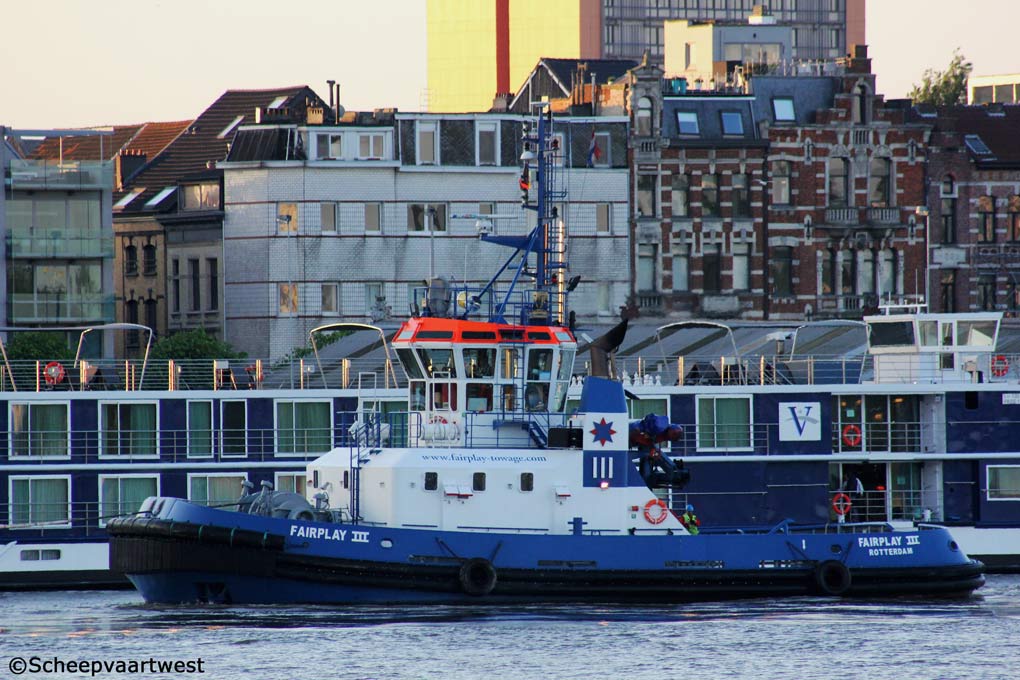

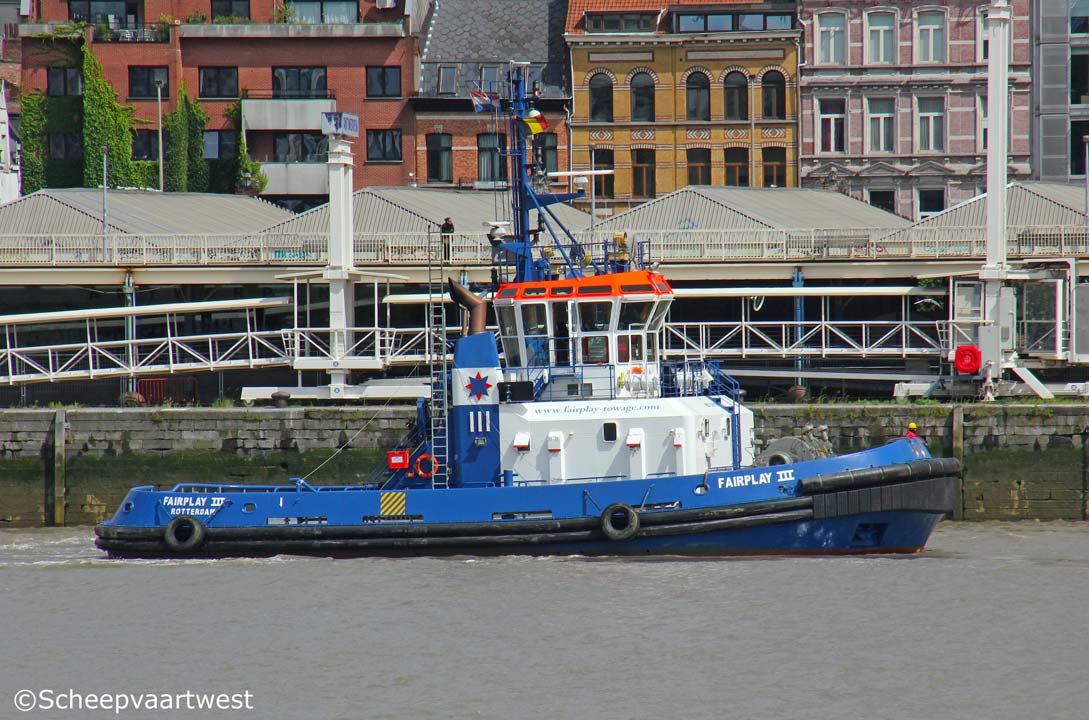

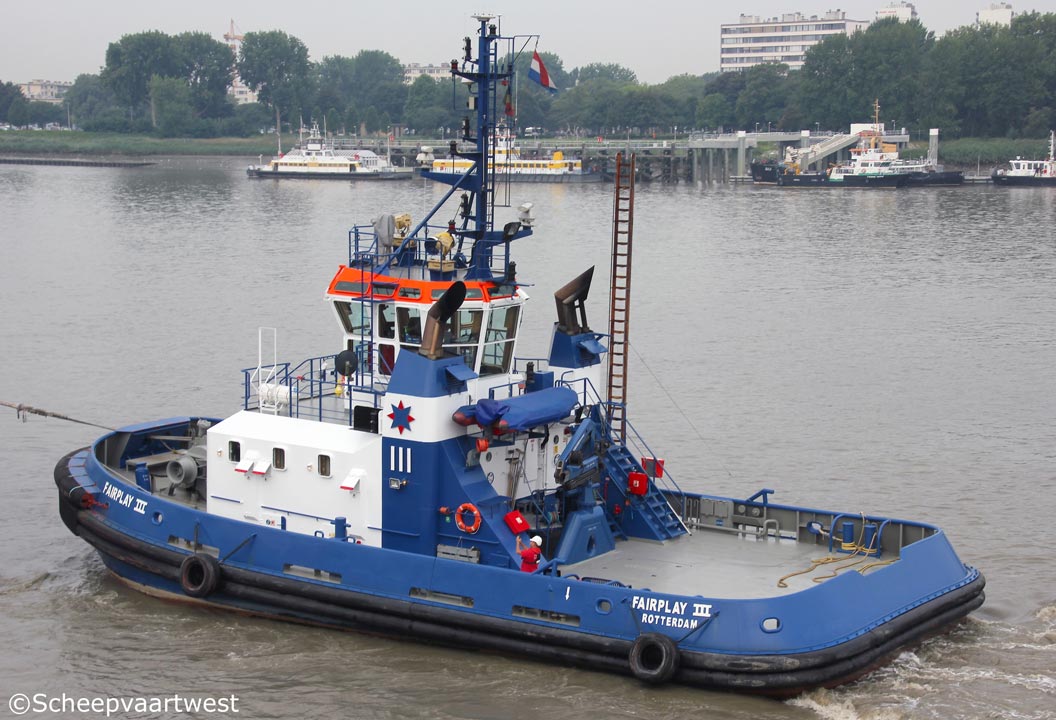

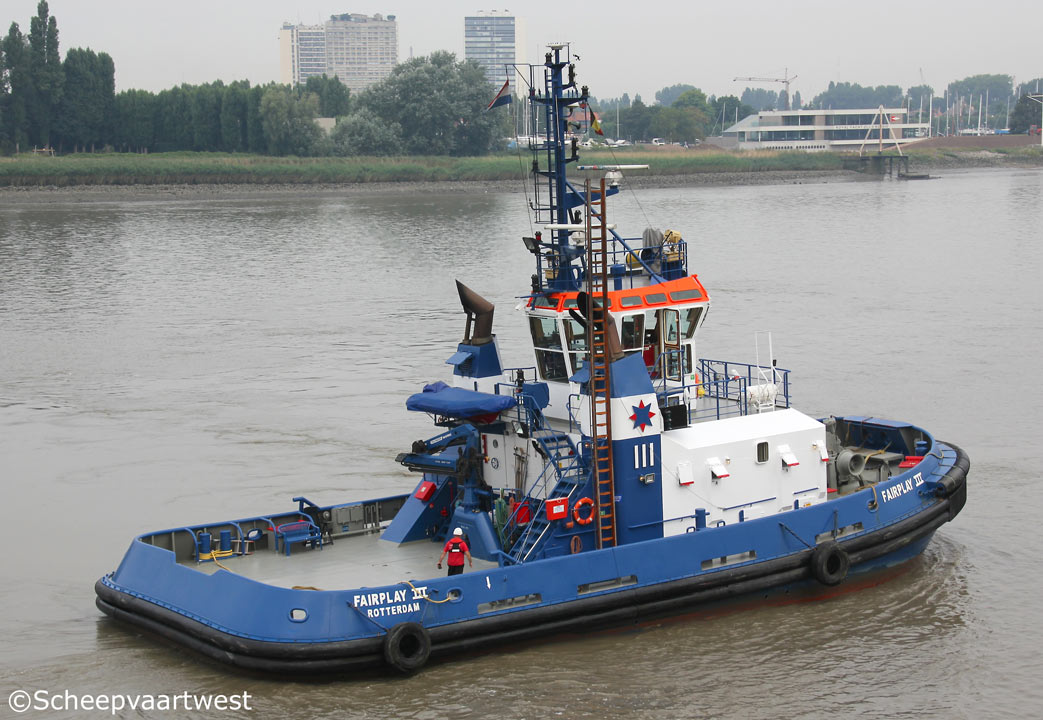

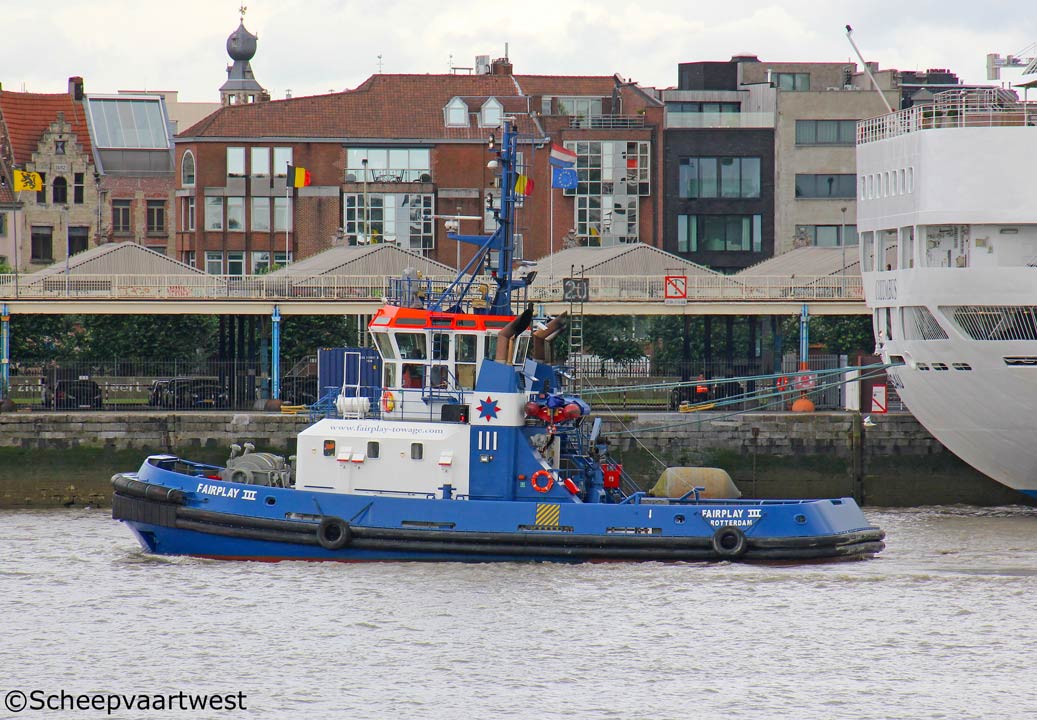

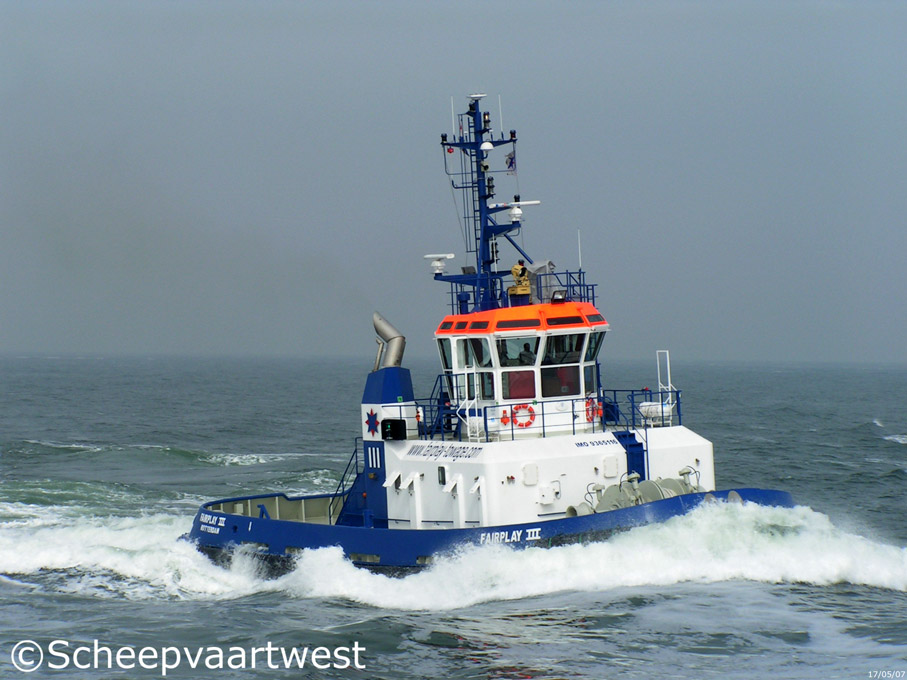

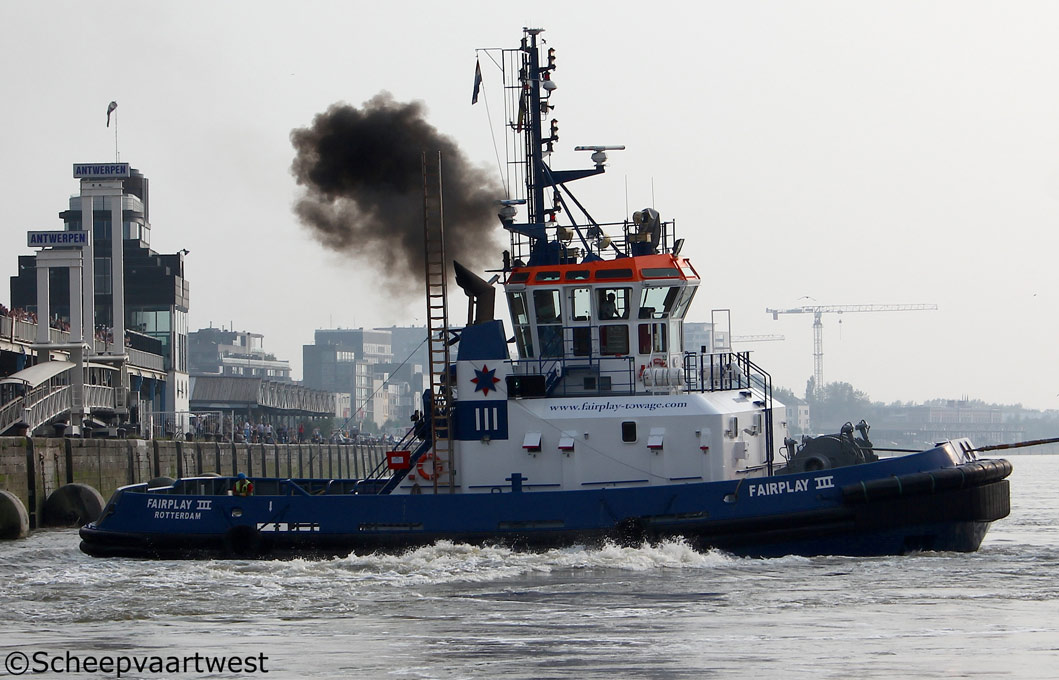

| Antwerpen 03/05/14 | Antwerpen 03/05/14 | Antwerpen 07/09/14 | Westerschelde 17/05/07 | Antwerpen 19/08/16 | Antwerpen 19/08/16 | |||||
 |
 |
|||||||||
| Antwerpen 12/07/17 | Antwerpen 12/07/17 | |||||||||
|
Name |
FAIRPLAY III |
|
Type |
Tug boat |
|
IMO-number |
9365116 |
|
Call sign |
PHKI |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GRT |
308 t |
|
DWT |
241,5 t |
|
NRT |
92 t |
|
Length |
25,00 m overall 23,70 m registered 20,94 m between perpendiculars |
|
Breadth |
11,20 m overall |
|
Draft |
Min.: 5,00 m Max.: 5,35 m |
|
Freeboard |
800 mm |
|
Depth |
5,25 m moulded |
|
Speed |
12,2 knots |
|
Built |
2007 |
|
Keel laid |
14/09/2006 |
|
Launch date |
06/02/2006 |
|
Date of completion |
08/05/2007 |
|
Builder |
Astilleros Armon S.A. Avenida del Pardo, s/n 33710 Navia Spain |
|
Yard number |
649 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull |
|
Watertight Bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
2x ABC 8MDZC-1000-172A - 4 stroke single acting 8 cylinder 256 x 310 mm combustion engines each Mcr 1.850 kW total 3.700 kW / 5.028 hp at 1.000 rpm Built: 2006 Builder: Anglo Belgian Corporation N.V. Wiedauwkaai 43 9000 Gent Belgium |
|
Propelling System |
2x Schottel rudder propeller SRP 1515 Fixed pitch Azimuth thruster in kort nozzle at 225 rpm |
|
Boilers |
1x Water heater, oil fires Year of Manufacture: 2007 |
|
Electric installation |
2x Plants each 380 V - 200 kVA |
|
Generators |
2x Scania D 995 M - 4 stroke 6 cylinder 115 x 140 mm diesel engines each Mcr 160 kW - 266 hp connected with generators each 200 kVA |
|
Compressed air receivers |
2x Receivers each 200 litres - 35,0 bar |
|
Bollard pull |
70 t |
|
Towing winch |
1x ASLH 160.50 Brussele hydraulic towing winch 2x 120 m Dyneema towing rope |
|
Anchor equipment |
Length: 220,00 m Diameter: 22 mm |
|
Tank capacities |
Gas oil: Abt. 164,15 m³ Ballast: 48,9 m³ |
|
Crew size |
3 |
|
Manager |
Fairplay Schleppdampfschiffs-Reederei Richard Borchard GmbH Hamburg Germany |
|
Operator |
Fairplay Towage B.V Terwenakker 42/44 3011 XS Rotterdam The Netherlands |
|
Registered owner |
Fairplay Schleppdampfschiffs-Reederei Richard Borchard GmbH Bei den Mühren 1 20457 Hamburg Federal Republic of Germany |
|
Remarks |
Schottel ASD Tug fully equipped for harbour assistance, coastal towage & salvage |
|
Latest data adjustment |
18 March 2022 |
